PPE Heavy-Duty Cast Aluminum Transmission Pan

2010–2020 Dodge Ram / 2010–2012 Jeep Grand Cherokee

228052320

Overview:

The PPE Heavy-Duty Cast Aluminum Transmission Pan is engineered to enhance the durability and cooling efficiency of your vehicle’s transmission system. Designed specifically for Dodge Ram models from 2010 to 2020 and Jeep Grand Cherokee models from 2010 to 2012, this transmission pan addresses one of the most critical factors affecting transmission longevity: excessive heat. By increasing fluid capacity and improving heat dissipation, it helps maintain optimal transmission fluid viscosity, reducing wear and extending the life of your transmission.

Ideal for truck and SUV owners who demand reliable performance under heavy loads or towing conditions, this pan offers a robust upgrade over factory components, ensuring your 6-speed transmission runs cooler and more efficiently in demanding environments.

Key Features:

Built to provide superior heat management and protection, the PPE Heavy-Duty Transmission Pan includes several advanced features:

• Constructed from high-grade A356.0-T6 cast aluminum alloy for exceptional strength and durability
• Increased fluid capacity by 1.8 quarts, allowing for improved cooling and extended fluid life

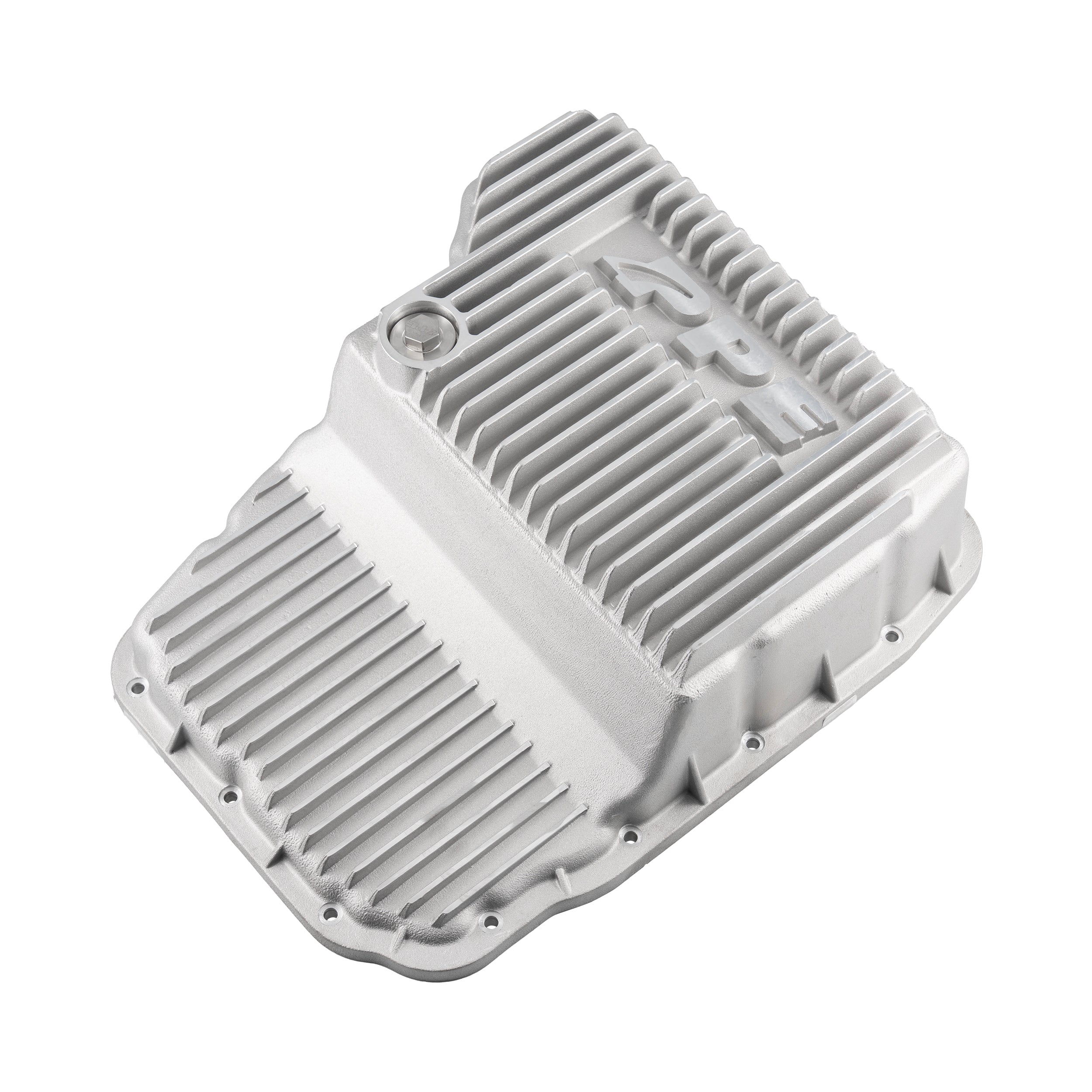

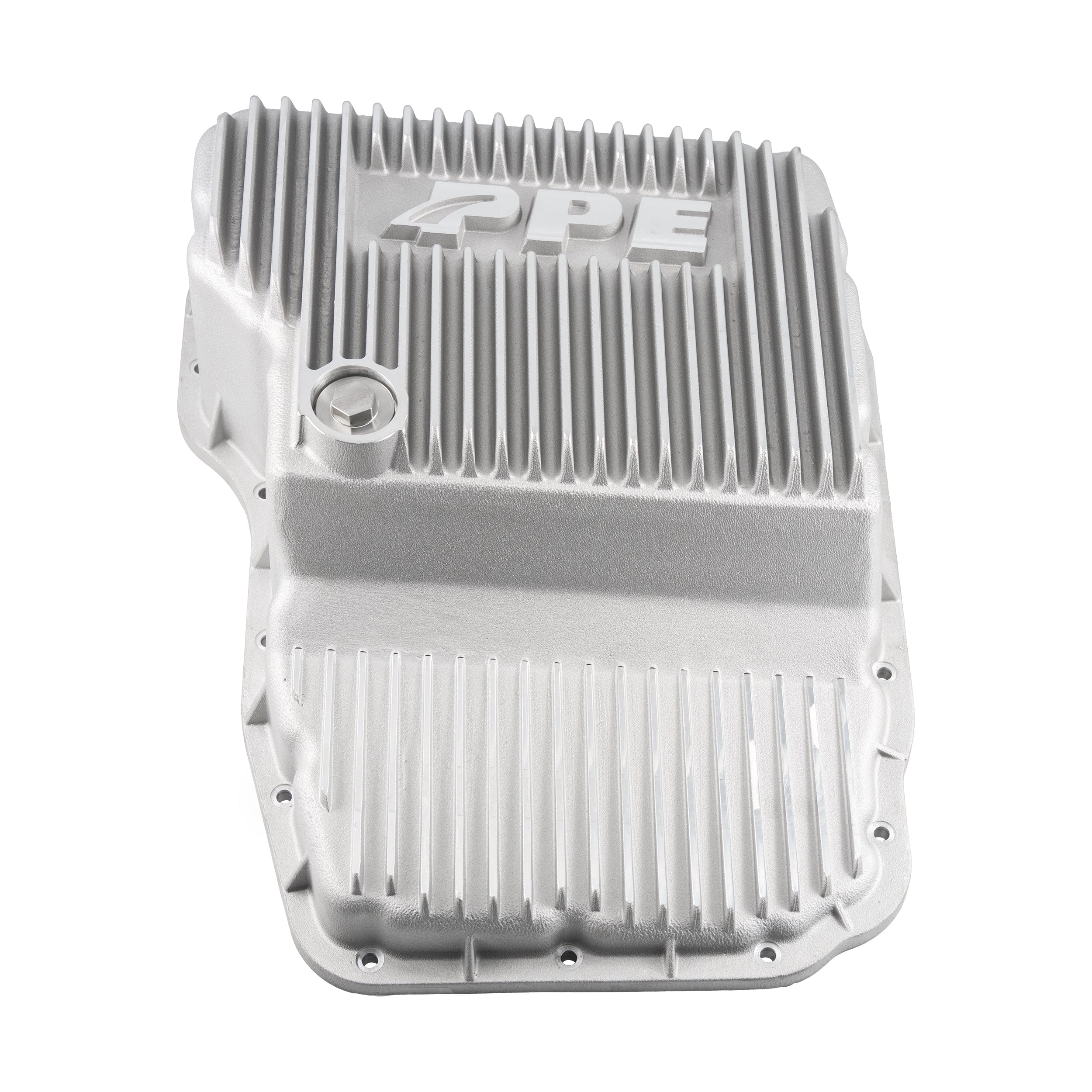

• Deep external cooling fins maximize surface area for efficient heat dissipation
• Integrated baffles enhance fluid contact with the pan’s aluminum surfaces, improving heat transfer and reducing fluid sloshing
• Cross-bracing structure formed by longitudinal fins and baffles increases impact resistance and structural rigidity
• Drain plug equipped with a high-temperature-rated neodymium magnet to capture ferrous metal particles, protecting internal transmission components
• Compatible with PPE MicroPure Spin-On Transmission Fluid Filter (SKU 228052150) and PPE sump filter (SKU 228052186)
• Optional 65RFE/68RFE compound gaskets available separately for enhanced sealing

Construction & Design:

The transmission pan is precision cast from premium A356.0-T6 aluminum alloy, known for its excellent strength-to-weight ratio and corrosion resistance. This material choice ensures the pan withstands harsh operating conditions while providing superior thermal conductivity to dissipate heat effectively. The deep cooling fins on the exterior increase the surface area exposed to airflow, accelerating heat rejection from the transmission fluid.

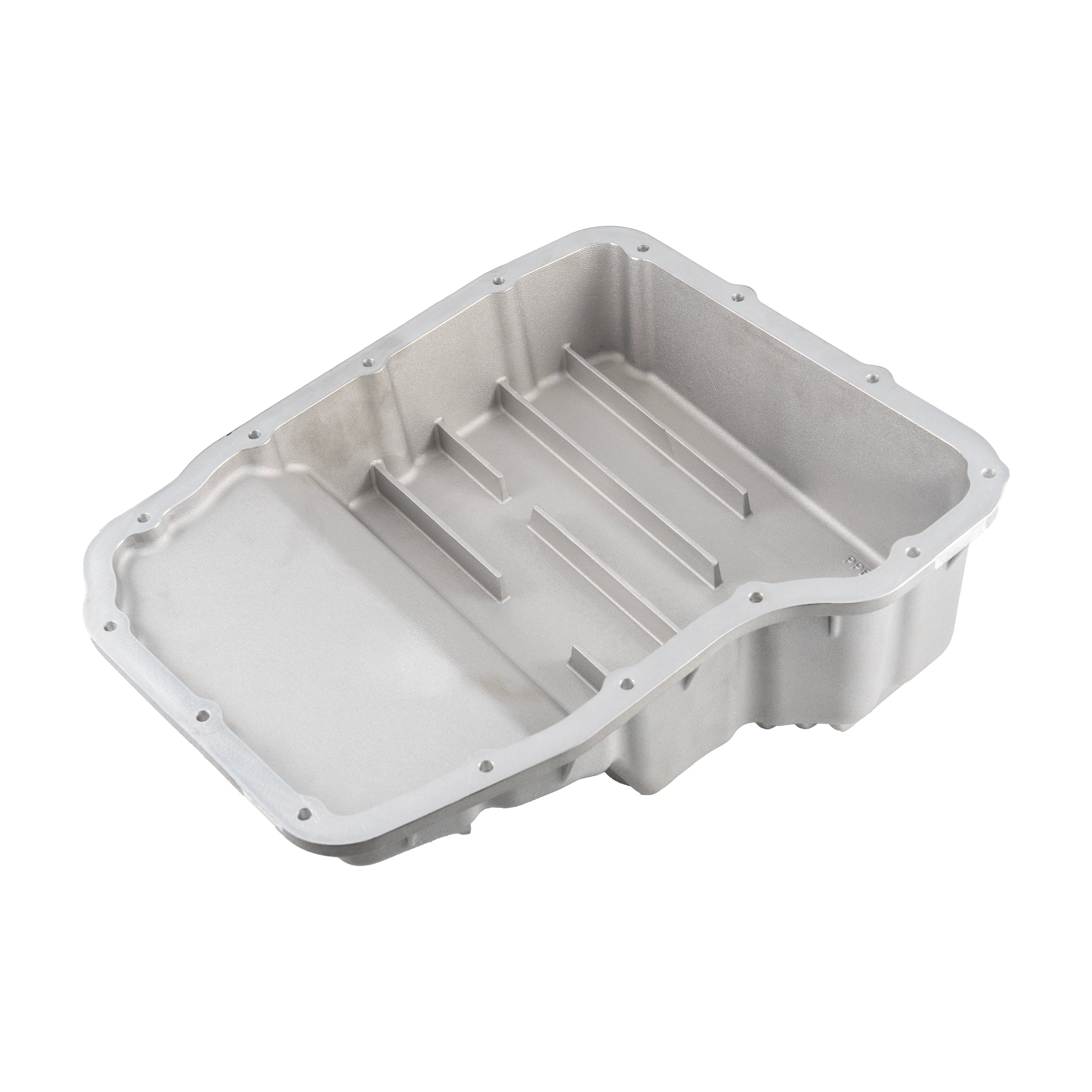

Inside, strategically placed baffles improve fluid dynamics by increasing the contact area between the fluid and the aluminum surface, which enhances heat transfer and stabilizes fluid pickup during vehicle movement. The combination of external fins and internal baffles creates a stiff, cross-braced structure that resists deformation and protects the transmission from impacts and road debris.

Installation & Fitment:

This heavy-duty transmission pan is a direct fit replacement for Dodge Ram trucks from 2010 through 2020 and Jeep Grand Cherokee models from 2010 to 2012 equipped with compatible 6-speed transmissions. Installation requires standard hand tools and basic mechanical knowledge, with no permanent modifications needed. The included drain plug magnet provides an added layer of protection by capturing metal particles during normal operation.

For optimal performance, pairing this pan with the PPE MicroPure Spin-On Transmission Fluid Filter or sump filter is recommended. Additionally, using the appropriate compound gasket ensures a secure, leak-free seal.

What's Included:

• Heavy-duty cast aluminum transmission pan
• Drain plug with high-temperature neodymium magnet

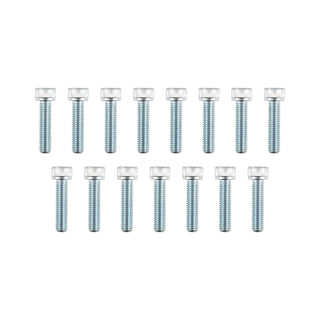

• Installation hardware (where applicable)

Ideal For:

This transmission pan is perfect for Dodge Ram and Jeep Grand Cherokee owners who frequently tow, haul heavy loads, or drive in demanding conditions where transmission heat buildup is a concern. It is also an excellent upgrade for enthusiasts seeking enhanced transmission cooling and durability to extend the life of their vehicle’s drivetrain components.

Pacific Performance Engineering (PPE) develops heavy-duty and performance upgrades for trucks and diesel platforms, including differential covers, transmission pans, oiling and cooling components, and other durability-minded parts. PPE products are built to handle heat, load, and power—ideal for tow rigs and performance builds that need stronger hardware and better fluid control.
