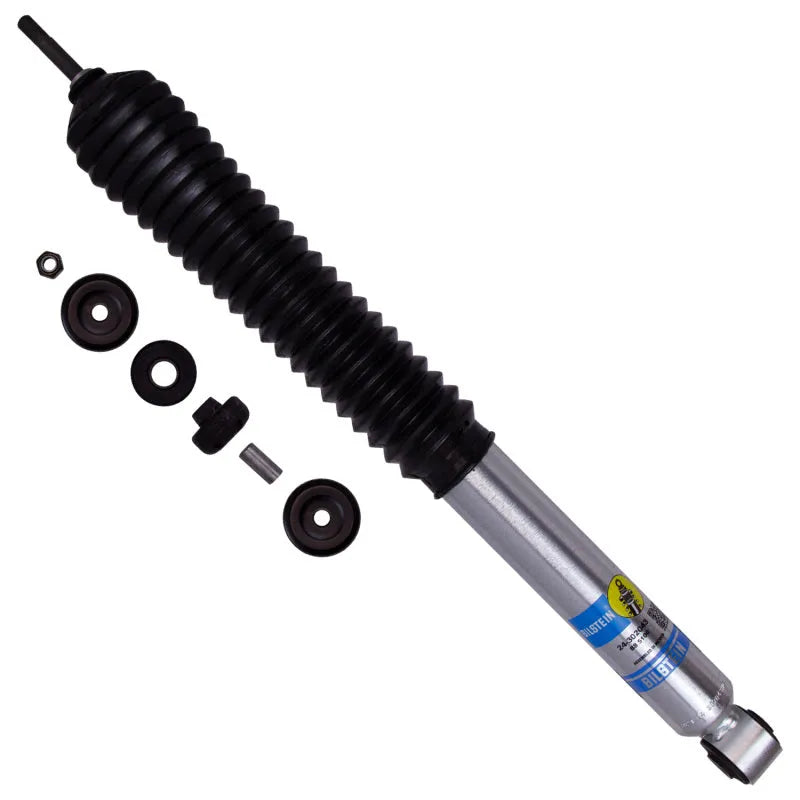

Bilstein B8 5100 Rear Shock WITH Rear Coil Springs, 0-1" Rear Lift

19-25 Ram 2500

24-302043

*PURCHASE QUANTITY 2 FOR BOTH SIDES

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Collapsed Length (in) : 16.48

Extended Length (in) : 24.96

Collapsed Length (mm) : 418.5

Extended Length (mm) : 634.0

Finish : Zinc Plated

Reservoir : No

Body Design : Smooth Body (Non-coilover)

Body Diameter (id) : 46mm

Replacement Mounting Kit : B4-KT1-Z223A01

Spring Seat Included : No

Adjustable Damping : Non-Adjustable

Quantity per Vehicle : 2

UPC : 00651860860503

Warranty : Limited Lifetime Warranty

Position : Rear
