Fabtech Performance Suspension System

2006–2007 Dodge Ram 2500 / Ram 3500

K30153DL

Overview:

The Fabtech 6-inch Performance Suspension System with Dirt Logic Stainless Steel Shocks is engineered specifically for 2006 to 2007 Dodge Ram 2500 and Ram 3500 models. Designed to enhance both on-road comfort and off-road capability, this comprehensive lift kit provides a balanced combination of increased ground clearance, improved suspension travel, and superior dampening performance. Ideal for truck owners seeking a reliable upgrade that maintains proper suspension geometry while accommodating larger tires and demanding terrain.

This system is tailored for non-dually models equipped with automatic transmissions and is compatible with 37x12.50R17 tires mounted on 17x9 wheels with a 5-inch backspacing, requiring minor trimming. It offers a robust front lift with replacement coil springs and advanced shock absorbers to deliver a smooth highway ride without sacrificing off-road control.

Key Features:

Fabtech’s Performance Suspension System integrates multiple components to ensure durability, performance, and proper fitment. Key features include:

• 6-inch front and rear lift for enhanced ground clearance and aggressive stance
• Extended length 1.75" outer diameter heavy wall control arm links with urethane bushings to maintain front suspension geometry and allow increased travel
• Replacement front coil springs engineered for quality highway ride and off-road capability
• Front 2.5-inch Dirt Logic stainless steel coilover shocks for superior dampening and durability
• Rear 2.25-inch Dirt Logic stainless steel shocks designed to complement the rear lift
• Multiple shock system for increased dampening capacity during off-road use
• Trac bar bracketry and Pitman arm included to maintain steering precision and alignment
• End links and bump stops to optimize suspension articulation and prevent damage
• Rear lift achieved through a block and U-bolt system for reliable and straightforward installation
• Transmission mount included to accommodate the lift and maintain drivetrain alignment

Construction & Design:

Fabtech’s suspension system is built with heavy-duty materials engineered to withstand rigorous off-road conditions while providing a comfortable ride on paved roads. The control arm links feature a thick 1.75-inch outer diameter heavy wall construction, paired with durable urethane bushings that resist wear and maintain suspension geometry under increased travel demands. The coil springs are designed to balance load capacity and ride quality, ensuring stability and comfort.

The Dirt Logic shocks are constructed from stainless steel, offering corrosion resistance and long-lasting performance. Their larger diameter design enhances dampening capabilities, reducing harshness and improving control over rough terrain. All components are precision-engineered to fit the specified Dodge Ram models without compromising factory reliability.

Installation & Fitment:

This suspension system is designed for straightforward installation on 2006–2007 Dodge Ram 2500 and 3500 models with automatic transmissions and non-dually rear ends. Minor trimming of the wheel well may be necessary to accommodate the recommended 17x9 wheels with 5-inch backspacing and 37x12.50R17 tires. The kit includes all necessary brackets, links, and hardware to maintain proper suspension geometry and drivetrain alignment during and after installation.

Professional installation is recommended to ensure all components are correctly fitted and adjusted for optimal performance and safety.

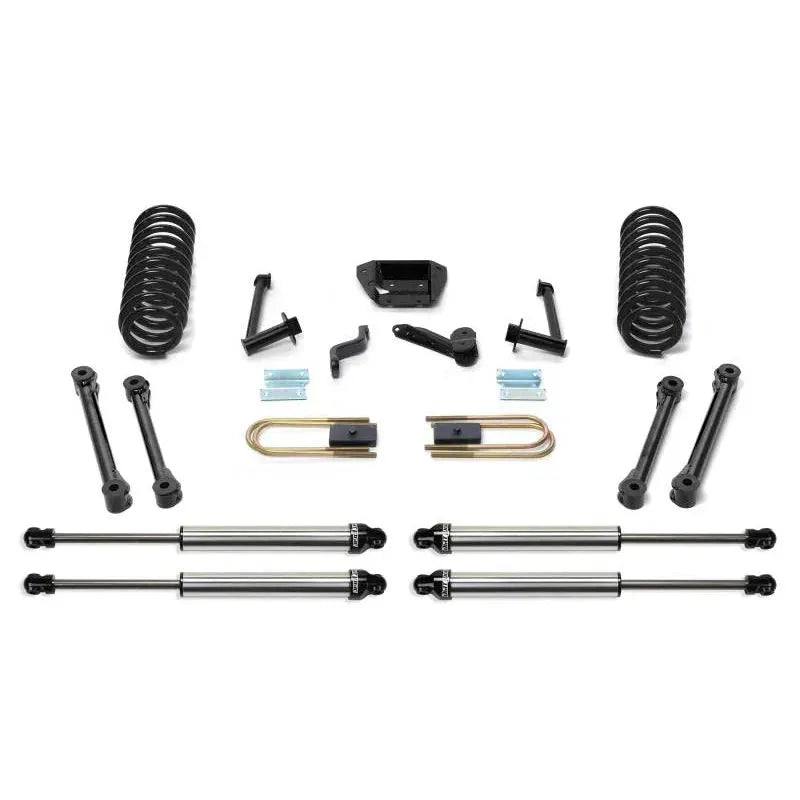

What's Included:

• Extended length 1.75" OD heavy wall control arm links with urethane bushings
• Replacement front coil springs
• Front 2.5-inch Dirt Logic stainless steel coilover shocks
• Rear 2.25-inch Dirt Logic stainless steel shocks
• Trac bar bracketry
• Pitman arm
• End links
• Bump stops
• Transmission mount
• Rear block and U-bolt lift system

Ideal For:

This Fabtech Performance Suspension System is ideal for Dodge Ram 2500 and 3500 owners who require a reliable lift kit that enhances off-road capability without sacrificing on-road comfort. It suits enthusiasts who run larger tires and demand improved suspension travel and dampening for rugged terrain, while maintaining proper vehicle geometry and drivability. Perfect for work trucks, weekend adventurers, and off-road enthusiasts looking for a durable, high-quality suspension upgrade.

Fabtech is an off-road suspension leader producing lift kits, shocks, and related components to increase ride height, clear larger tires, and improve capability. Their systems are engineered for specific trucks and SUVs, blending on-road drivability with the added travel and strength enthusiasts want for trails, desert runs, and overland builds.
