Fabtech Performance Suspension System

2007–2008 Dodge Ram 2500 / Dodge Ram 3500

K30154M

Overview:

The Fabtech 6-inch Performance System with Stealth is engineered specifically for 2007 to 2008 Dodge Ram 2500 and Ram 3500 models, delivering a robust suspension upgrade designed to enhance off-road capability and maintain proper front suspension geometry. This comprehensive lift system combines extended length heavy wall control arm links with premium urethane bushings, allowing increased suspension travel without compromising ride quality. Whether you prefer a highway-friendly coil spring setup or the rugged Dirt Logic 4.0 coilover conversion, this system offers versatile options tailored to your driving needs.

Ideal for enthusiasts seeking improved ground clearance and suspension performance, the Fabtech system supports larger 37-inch tires on 17x9 wheels with minor trimming required. It is compatible with automatic transmission models and non-dually configurations, ensuring a precise fit and reliable operation.

Key Features:

This performance suspension system integrates advanced components and technology to optimize your Dodge Ram’s handling and off-road prowess:

• Extended length 1.75" outer diameter heavy wall control arm links with urethane bushings for enhanced durability and suspension articulation
• Choice of replacement coil springs for a balanced highway ride with capable off-road performance
• Dirt Logic 4.0 coilover conversion system featuring 4" outer diameter remote reservoirs connected via -10 hose assemblies for superior dampening in rugged terrain
• Multiple shock system option to increase dampening capacity and control during off-road excursions
• Trac bar bracketry and upgraded Pitman arm for improved steering geometry and stability
• Heavy-duty bump stops and transmission mount designed to accommodate the lift and protect drivetrain components
• Rear lift achieved through a block and U-bolt system for balanced suspension height front to rear
• Optional Dirt Logic hydraulic bump stop system for enhanced compression dampening during severe off-road driving
• 100% bolt-on installation without the need to remove factory coil spring buckets

Construction & Design:

Fabtech’s Performance System is built with high-strength materials engineered to withstand the demands of off-road driving while maintaining on-road comfort. The heavy wall control arm links are constructed from durable steel tubing with precision-machined ends and urethane bushings that resist wear and provide consistent suspension articulation. The Dirt Logic 4.0 coilovers feature large billet aluminum reservoirs secured with billet clamps and limiting straps, ensuring reliability and heat dissipation during extended use. Every component is designed for a direct fit, maintaining factory suspension geometry and minimizing the need for additional modifications.

Installation & Fitment:

This system is designed for straightforward installation on 2007 to 2008 Dodge Ram 2500 and 3500 models equipped with automatic transmissions. The bolt-on design allows you to retain the factory coil spring buckets when opting for the coilover conversion, simplifying the upgrade process. Minor trimming may be required to accommodate 17x9 wheels with a 5-inch backspacing and 37/12.50R17 tires. Note that this kit fits non-dually models only and is not compatible with standard cab configurations.

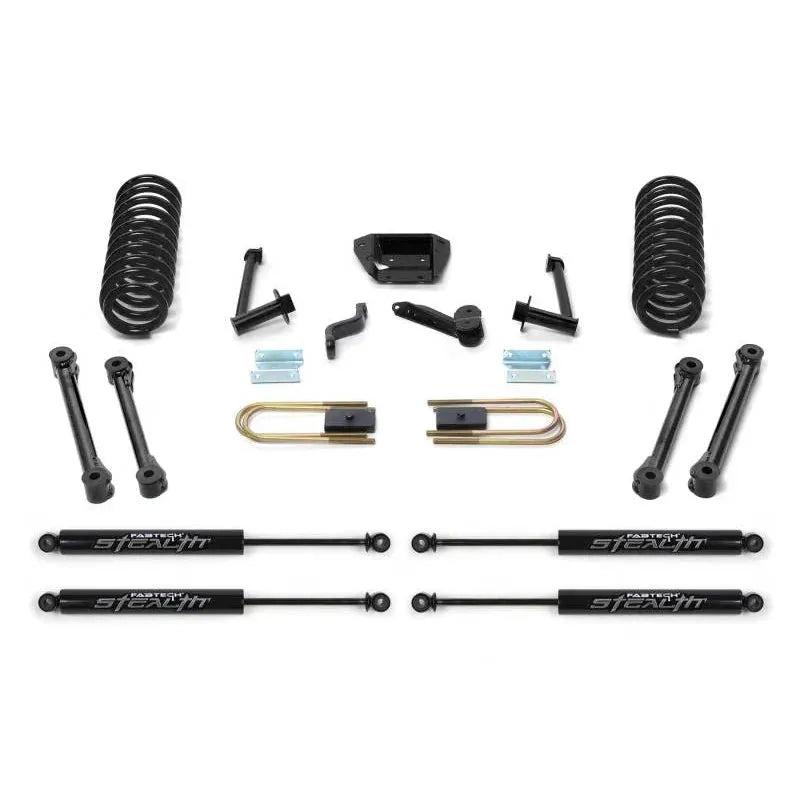

What's Included:

• Extended length heavy wall control arm links with urethane bushings
• Replacement coil springs or Dirt Logic 4.0 coilover conversion components
• Multiple shock system components (if selected)
• Trac bar bracketry
• Upgraded Pitman arm
• End links and bump stops
• Transmission mount
• Rear lift block and U-bolt system
• Billet reservoir clamps and limiting straps for coilovers
• Optional Dirt Logic hydraulic bump stop system (available as an upgrade)

Ideal For:

This Fabtech Performance System is perfect for Dodge Ram 2500 and 3500 owners who demand enhanced off-road capability without sacrificing on-road comfort. Whether you’re tackling rugged trails, hauling heavy loads, or simply want a commanding stance with larger tires, this system provides a durable, well-engineered solution. It suits enthusiasts who prefer a customizable suspension setup, offering both coil spring and coilover options to match their driving style and terrain challenges.

Fabtech is an off-road suspension leader producing lift kits, shocks, and related components to increase ride height, clear larger tires, and improve capability. Their systems are engineered for specific trucks and SUVs, blending on-road drivability with the added travel and strength enthusiasts want for trails, desert runs, and overland builds.
