Rhino-Rack Backbone Mounting System

2007–2018 Jeep Wrangler JK 4 Door Models

RJKB1

Overview:

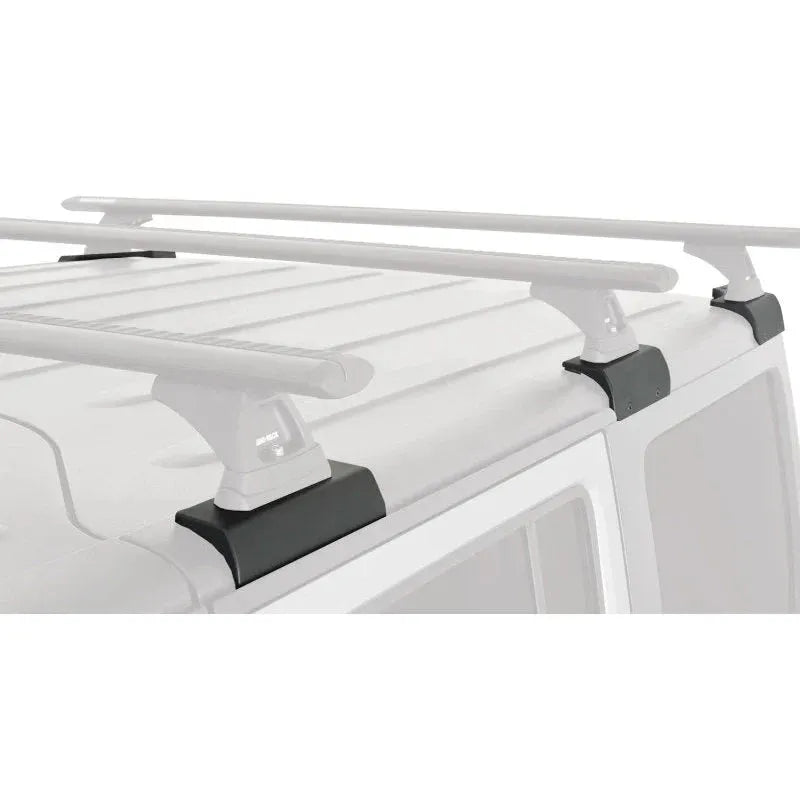

The Rhino-Rack Backbone Mounting System is a robust interior mounting solution designed specifically for Jeep Wrangler JK 4 Door models from 2007 to 2018. Engineered to provide a strong foundation for roof rack systems, this Backbone setup reinforces the vehicle’s hardtop by connecting three mounting plates on each side to the interior frame. This extension of the roof line allows you to safely carry heavier loads, with a maximum load capacity of up to 120 kg (264 lbs).

Ideal for Jeep enthusiasts who require additional cargo capacity without compromising vehicle integrity, the Backbone system enables the secure attachment of Rhino-Rack’s 2-bar roof rack systems. Whether you’re outfitting your Wrangler for overlanding, camping, or daily utility, this mounting system offers a durable and reliable solution to expand your vehicle’s carrying capabilities.

Key Features:

The Rhino-Rack Backbone Mounting System combines strength, compatibility, and ease of installation to enhance your Jeep Wrangler’s utility. Key features include:

• Heavy-duty interior mounting plates that distribute load evenly across the hardtop frame
• Supports a maximum load rating of 120 kg (264 lbs), allowing for substantial cargo weight
• Designed specifically for 2007–2018 Jeep Wrangler JK 4 Door models, ensuring perfect fitment
• Includes all necessary internal support frames and fitting hardware for straightforward installation
• Enables secure attachment of Rhino-Rack 2-bar roof rack systems for versatile cargo solutions
• Maintains the structural integrity of the Jeep hardtop without drilling or permanent modifications
• Compatible with a wide range of Jeep Wrangler trims including Sahara, Rubicon, Sport, and Unlimited variants

Construction & Design:

The Backbone Mounting System is crafted from high-strength steel plates and reinforced internal frames designed to integrate seamlessly with the Jeep Wrangler JK’s factory hardtop structure. The mounting plates are precision-engineered to align with the vehicle’s interior frame, providing a secure and stable base for roof racks. The design ensures that weight is distributed evenly, minimizing stress on any single point and preserving the vehicle’s structural integrity.

All components feature corrosion-resistant coatings to withstand harsh weather conditions and off-road environments, ensuring long-lasting durability. The system’s internal support frames are engineered for maximum rigidity while maintaining a low profile inside the vehicle, preserving interior space and aesthetics.

Installation & Fitment:

Installation of the Rhino-Rack Backbone Mounting System is straightforward and requires no permanent modifications to your Jeep Wrangler JK. The system comes complete with all necessary mounting hardware and internal support frames, allowing for a secure fit inside the hardtop. Professional installation is recommended to ensure proper alignment and load distribution.

This mounting system is compatible with the following Jeep Wrangler JK 4 Door models:

• Jeep Wrangler Sahara (2007–2017)
• Jeep Wrangler Rubicon (2007–2018)
• Jeep Wrangler Sport (2010–2018)
• Jeep Wrangler Sport S (2016–2018)
• Jeep Wrangler Unlimited Sahara (2007–2018)
• Jeep Wrangler Unlimited Rubicon (2007–2018)
• Jeep Wrangler Unlimited Sport (2010–2018)
• Jeep Wrangler Unlimited Sport S (2016–2018)
• Jeep Wrangler Unlimited X (2007–2010)
• Special editions including 70th and 75th Anniversary models and Moab editions

What's Included:

• Three mounting plates per side for the interior hardtop frame
• Internal support frames engineered for load distribution
• Complete fitting hardware kit required for installation
• Detailed installation instructions

Ideal For:

The Rhino-Rack Backbone Mounting System is perfect for Jeep Wrangler JK owners who need to increase their vehicle’s cargo capacity with a reliable and secure roof rack foundation. It is especially suited for:

• Overlanders and adventure seekers carrying rooftop tents, gear, or storage boxes
• Outdoor enthusiasts transporting bikes, kayaks, or other bulky equipment
• Daily drivers requiring additional cargo space without compromising vehicle safety
• Anyone looking for a durable, factory-compatible mounting solution for Rhino-Rack roof racks
