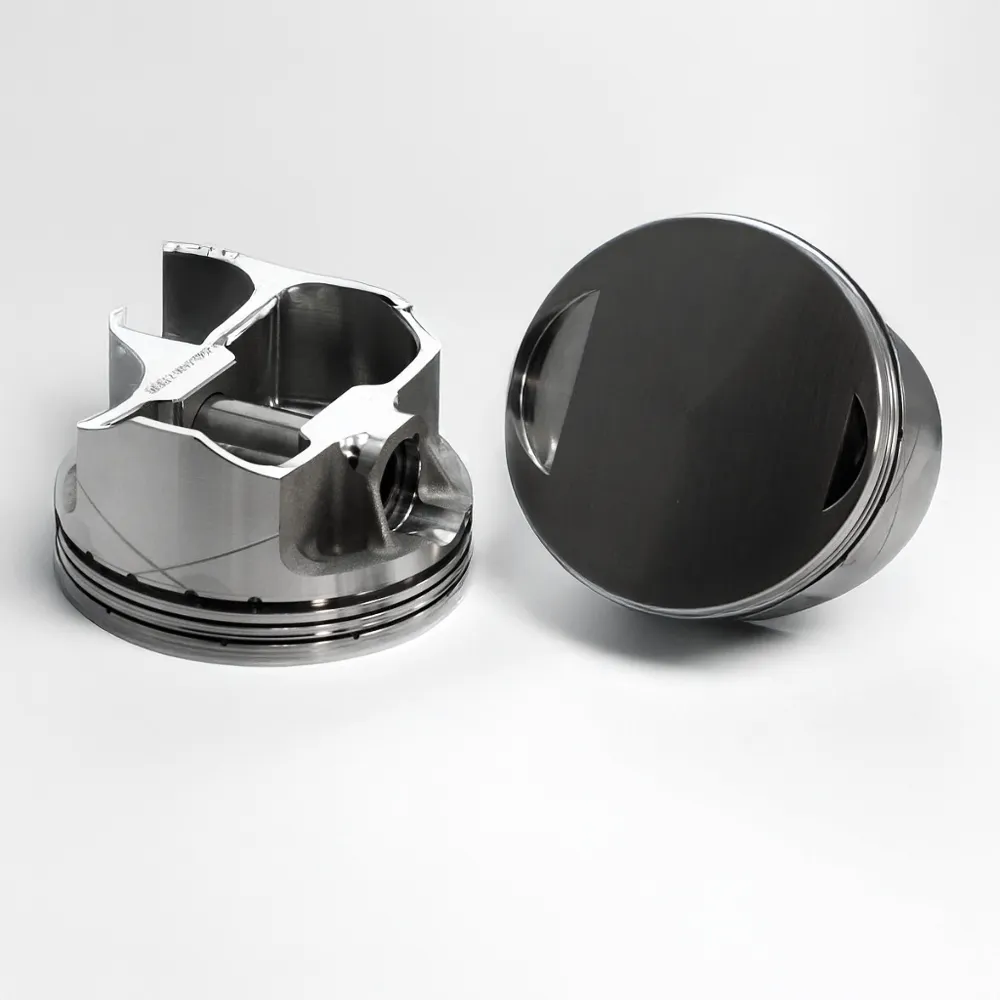

DSS Racing FX Series Forged Piston Set
Fits Most Chrysler / Dodge / Jeep / Ram 5.7L Hemi Models
1-6720-3947 / 2-6720-3947 / 3-6720-3947 / K1-6720-3947 / K2-6720-3947 / K3-6720-3947
Overview:
The DSS Racing Gen III Hemi FX Series Forged Piston Set is engineered specifically for the 5.7L Hemi engines found in a wide range of Chrysler, Dodge, Jeep, and Ram vehicles. Designed to meet the demands of high-performance builds and engine rebuilds, these pistons offer exceptional strength and durability. Whether you are upgrading your engine for increased power or replacing worn components, this piston set provides a reliable foundation for enhanced engine longevity and performance.
Built to exacting specifications, these pistons feature a compact design with a 1.21" compression height and a -1.5cc flat top, optimizing combustion efficiency and compression ratios. They are compatible with both full-floating and press-fit wrist pins, allowing for flexible installation options depending on your engine setup.
Key Features:
Engineered for performance and durability, the DSS Racing FX Series Forged Pistons include the following key features:
- Forged construction for superior strength and resistance to high-stress conditions
- Designed for 350 Small Block Mopar Hemi Gen III engines with a 3.578" stroke
- Compression height of 1.21" for optimal piston-to-cylinder head clearance
- 1.5cc flat top piston design to enhance combustion efficiency
- Pin diameter of .945" compatible with full-floating or press-fit configurations
- Ring groove dimensions of 1.2mm / 1.2mm / 3mm to accommodate high-performance piston rings
- Available in multiple combustion chamber volumes (65cc, 74cc, 85cc) to tailor compression ratios
- Compatible with 6.243" connecting rods for precise fitment
- Approximate compression ratios ranging from 8.54 to 10.55 depending on chamber volume
Construction & Design:
Each piston in the DSS Racing FX Series is forged from high-grade aluminum alloy, providing an excellent balance of lightweight construction and exceptional strength. The forging process enhances the metal’s grain structure, resulting in pistons that withstand the rigors of high RPM and elevated cylinder pressures without compromising durability.
The flat top design with a slight negative volume (-1.5cc) promotes efficient combustion, helping to maximize power output while maintaining safe compression levels. Precision machining ensures tight tolerances for optimal ring sealing and minimal friction, contributing to improved engine efficiency and longevity.
Installation & Fitment:
This piston set is designed to fit most Chrysler, Dodge, Jeep, and Ram vehicles equipped with the 5.7L Hemi Gen III engine. Installation requires standard engine rebuild procedures, including proper honing of cylinder walls and careful measurement of piston-to-wall clearance. The pistons accommodate either full-floating or press-fit wrist pins, providing flexibility based on your engine’s connecting rod design.
Professional installation is recommended to ensure correct piston orientation, ring gap positioning, and torque specifications are met for optimal performance and reliability.
What's Included:
- Set of forged pistons for 5.7L Gen III Hemi engines
- Compatible wrist pins (full-floating or press-fit options)
- Precision-machined piston rings (1.2mm top and second rings, 3mm oil ring)
- Installation instructions and technical specifications
Ideal For:
This piston set is ideal for automotive enthusiasts, engine builders, and performance tuners seeking a durable, high-quality upgrade for their 5.7L Hemi engines. Whether you are restoring a classic Mopar, building a street performance engine, or preparing a vehicle for mild to moderate racing applications, these pistons provide the strength and precision needed to support increased power and reliability.
DSS Racing — Founded in 1983 originally as Danny’s Speed Shop, DSS Racing has grown from a small Midwest performance engine shop into a respected name in forged engine components for the high-performance and racing markets. Based in St. Charles, Illinois, DSS is best known for its forged pistons and machined engine parts made in the USA that have been used in championship engines and thousands of builds, blending old-school racing roots with precision manufacturing for enthusiasts and racers alike.
DSS Racing Gen III Hemi FX Series Forged Piston Set 5.7L: Fits Chrysler / Dodge / Jeep / Ram (02-26)
- Unit price
- /per
What does the Available to Promise date mean?
ETA stands for Estimated Time of Arrival. The date shown is calculated using our Available-to-Promise (ATP) system, which tracks real-time supplier commitments to determine when a product is expected to be available for delivery. Specifically, the date is calculated by adding 9 business days from the date a supplier has committed to ship the product, representing a worst-case scenario for when we can expect to receive inventory.
Please note: The ETA is an estimate, not a guarantee. While we work closely with our suppliers to keep dates as accurate as possible, delays due to shipping carriers, weather, customs, or supplier-side issues may occasionally push the actual arrival beyond the date shown. Likewise, inventory may arrive sooner than the ETA in many cases. If you would like to be notified for when this item arrives, sign up for our back in stock notifications!
1-6720-3947 DSS Racing 05-23 Chrysler / Dodge / Jeep / Ram 5.7L Hemi Forged Piston Set. DSS Racing Gen III Hemi FX Series Forged Pistons deliver exceptional strength and durability for your 5.7L Hemi engine. Featuring a 1.21" compression height and -1.5cc flat top design, these pistons optimize combustion efficiency and power output. Compatible with full-floating or press-fit pins, they ensure reliable performance under high stress. Precision ring grooves and balanced stroke and rod dimensions provide improved engine response and longevity, making them ideal for performance builds and rebuilds.
FREE GROUND SHIPPING
MADE IN THE USA
Adding product to your cart
DSS Racing FX Series Forged Piston Set
Fits Most Chrysler / Dodge / Jeep / Ram 5.7L Hemi Models
1-6720-3947 / 2-6720-3947 / 3-6720-3947 / K1-6720-3947 / K2-6720-3947 / K3-6720-3947
Overview:
The DSS Racing Gen III Hemi FX Series Forged Piston Set is engineered specifically for the 5.7L Hemi engines found in a wide range of Chrysler, Dodge, Jeep, and Ram vehicles. Designed to meet the demands of high-performance builds and engine rebuilds, these pistons offer exceptional strength and durability. Whether you are upgrading your engine for increased power or replacing worn components, this piston set provides a reliable foundation for enhanced engine longevity and performance.
Built to exacting specifications, these pistons feature a compact design with a 1.21" compression height and a -1.5cc flat top, optimizing combustion efficiency and compression ratios. They are compatible with both full-floating and press-fit wrist pins, allowing for flexible installation options depending on your engine setup.
Key Features:
Engineered for performance and durability, the DSS Racing FX Series Forged Pistons include the following key features:
- Forged construction for superior strength and resistance to high-stress conditions
- Designed for 350 Small Block Mopar Hemi Gen III engines with a 3.578" stroke
- Compression height of 1.21" for optimal piston-to-cylinder head clearance
- 1.5cc flat top piston design to enhance combustion efficiency
- Pin diameter of .945" compatible with full-floating or press-fit configurations
- Ring groove dimensions of 1.2mm / 1.2mm / 3mm to accommodate high-performance piston rings
- Available in multiple combustion chamber volumes (65cc, 74cc, 85cc) to tailor compression ratios
- Compatible with 6.243" connecting rods for precise fitment
- Approximate compression ratios ranging from 8.54 to 10.55 depending on chamber volume
Construction & Design:
Each piston in the DSS Racing FX Series is forged from high-grade aluminum alloy, providing an excellent balance of lightweight construction and exceptional strength. The forging process enhances the metal’s grain structure, resulting in pistons that withstand the rigors of high RPM and elevated cylinder pressures without compromising durability.
The flat top design with a slight negative volume (-1.5cc) promotes efficient combustion, helping to maximize power output while maintaining safe compression levels. Precision machining ensures tight tolerances for optimal ring sealing and minimal friction, contributing to improved engine efficiency and longevity.
Installation & Fitment:
This piston set is designed to fit most Chrysler, Dodge, Jeep, and Ram vehicles equipped with the 5.7L Hemi Gen III engine. Installation requires standard engine rebuild procedures, including proper honing of cylinder walls and careful measurement of piston-to-wall clearance. The pistons accommodate either full-floating or press-fit wrist pins, providing flexibility based on your engine’s connecting rod design.
Professional installation is recommended to ensure correct piston orientation, ring gap positioning, and torque specifications are met for optimal performance and reliability.
What's Included:
- Set of forged pistons for 5.7L Gen III Hemi engines
- Compatible wrist pins (full-floating or press-fit options)
- Precision-machined piston rings (1.2mm top and second rings, 3mm oil ring)
- Installation instructions and technical specifications
Ideal For:
This piston set is ideal for automotive enthusiasts, engine builders, and performance tuners seeking a durable, high-quality upgrade for their 5.7L Hemi engines. Whether you are restoring a classic Mopar, building a street performance engine, or preparing a vehicle for mild to moderate racing applications, these pistons provide the strength and precision needed to support increased power and reliability.
DSS Racing — Founded in 1983 originally as Danny’s Speed Shop, DSS Racing has grown from a small Midwest performance engine shop into a respected name in forged engine components for the high-performance and racing markets. Based in St. Charles, Illinois, DSS is best known for its forged pistons and machined engine parts made in the USA that have been used in championship engines and thousands of builds, blending old-school racing roots with precision manufacturing for enthusiasts and racers alike.
-
-
YEARMAKEMODELSUBMODEL2011 - 2024Chrysler3005.7L Hemi2005 - 2010Chrysler300C5.7L Hemi2009 - 2023DodgeChallenger5.7L Hemi2005 - 2023DodgeCharger5.7L Hemi2005 - 2011DodgeDakota5.7L Hemi2004 - 2025DodgeDurango5.7L Hemi2005 - 2008DodgeMagnum5.7L Hemi2002 - 2010DodgeRam5.7L Hemi2005 - 2010JeepCommander5.7L Hemi2005 - 2025JeepGrand Cherokee5.7L Hemi2022 - 2024JeepWagoneer5.7L Hemi2011 - 2024Ram15005.7L Hemi2019 - 2024Ram1500 Classic5.7L Hemi2010 - 2025Ram25005.7L Hemi2011 - 2012Ram35005.7L Hemi
-
Standard shipping
Free Standard Shipping on orders over $300. Select “Free Shipping” at checkout. *Exclusions apply on oversized and freight items.
Free Easy Returns
Need to return an item? We make it easy. Email us and we'll send you a free return label with instructions on how to return.
-
Compression Ratio Calculator
Calculate your engine's compression ratio and CID
-
Features Piston Series E SeriesE SX SeriesSX 1-FX Series1-FX 2-FX Series2-FX 3-FX Series3-FX Broached pin oiling slots Drilled, forced wrist pin oiling Forged drain-back windows Drilled bottom ring land intersecting oil groove drain-backs Slightly larger, deeper valve reliefs than OEM CNC machined valve reliefs for moderate performance heads and cam combinations Larger, deeper CNC valve reliefs for more aggressive cylinder head and cam combinations Premium Aircraft spec. 4032 low expansion alloy Premium Aircraft spec. 2618 alloy Blower, Turbo, NOS ready Brushed piston crown Additional CNC milling for weight reduction Patented "X Groove" skirt for superior cylinder and ring life Thinner/shallower ring grooves for max ring seal Low volume contact reduction grooves 2nd ring land accumulator groove prevents flutter 3rd ring land scraper relief Oil ring groove relief reservoir Inner and outer pin boss weight reduction Tighter crown thickness control for lighter parts Dynamic skirt milling for consistent weight Diamond-turned high strength skirts High-strength piston pins Extreme Duty XR wrist pins Horizontal Gas Ports enhance ring seal Forged and machined in the USA
Standard shipping
Free Standard Shipping on orders over $300. Select “Free Shipping” at checkout. *Exclusions apply on oversized and freight items.
Free Easy Returns
Need to return an item? We make it easy. Email us and we'll send you a free return label with instructions on how to return.
Compression Ratio Calculator
Calculate your engine's compression ratio and CID
| Features | Piston Series | ||||
|---|---|---|---|---|---|
| E SeriesE | SX SeriesSX | 1-FX Series1-FX | 2-FX Series2-FX | 3-FX Series3-FX | |
| Broached pin oiling slots | |||||
| Drilled, forced wrist pin oiling | |||||
| Forged drain-back windows | |||||
| Drilled bottom ring land intersecting oil groove drain-backs | |||||
| Slightly larger, deeper valve reliefs than OEM | |||||
| CNC machined valve reliefs for moderate performance heads and cam combinations | |||||
| Larger, deeper CNC valve reliefs for more aggressive cylinder head and cam combinations | |||||
| Premium Aircraft spec. 4032 low expansion alloy | |||||
| Premium Aircraft spec. 2618 alloy | |||||
| Blower, Turbo, NOS ready | |||||
| Brushed piston crown | |||||
| Additional CNC milling for weight reduction | |||||
| Patented "X Groove" skirt for superior cylinder and ring life | |||||
| Thinner/shallower ring grooves for max ring seal | |||||
| Low volume contact reduction grooves | |||||
| 2nd ring land accumulator groove prevents flutter | |||||
| 3rd ring land scraper relief | |||||
| Oil ring groove relief reservoir | |||||
| Inner and outer pin boss weight reduction | |||||
| Tighter crown thickness control for lighter parts | |||||
| Dynamic skirt milling for consistent weight | |||||
| Diamond-turned high strength skirts | |||||
| High-strength piston pins | |||||
| Extreme Duty XR wrist pins | |||||
| Horizontal Gas Ports enhance ring seal | |||||
| Forged and machined in the USA | |||||
