ICON Billet Upper Control Arm Delta Joint Kit: Ram 1500 2019-2023

ICON Billet Upper Control Arm Delta Joint Kit

2019–2023 Ram 1500

218560DJ

Overview:

The ICON Billet Upper Control Arm Delta Joint Kit is engineered specifically for 2019 to 2023 Ram 1500 trucks, delivering enhanced front suspension performance and durability. Featuring ICON’s patented Delta Joint technology, this kit combines the strength and longevity of a heavy-duty ball joint with the articulation benefits of a traditional uniball. Designed to improve suspension geometry, it offers increased camber and caster adjustment, resulting in better handling and ride quality whether your Ram 1500 is lifted or at stock height.

Ideal for enthusiasts seeking precise steering response and improved suspension clearance, this upper control arm kit addresses common issues found in factory components and standard uniball joints, making it a reliable upgrade for daily drivers and off-road adventurers alike.

Key Features:

ICON’s Delta Joint Upper Control Arm Kit integrates advanced design elements to optimize suspension performance and durability. Key features include:

• Patented Delta Joint: A heavy-duty, high-angle ball joint that offers superior articulation without binding, combining the robustness of a ball joint with the flexibility of a uniball.
• Zinc-plated housing and grease seal: Provides corrosion resistance and protects internal components from dirt and moisture.
• Greaseable, metal-on-metal construction: Enhances longevity and ensures smooth, noise-free operation over time.
• Quality PTFE-lined ¾” FK Rod Ends at chassis pivots: Deliver strength and precise driving characteristics.
• CNC machined 6061 billet aluminum arms with satin anodized finish: Lightweight yet extremely durable construction.
• Quick, on-vehicle adjustment for both camber and caster: Allows precise tuning of suspension geometry.
• Improved suspension component clearance: Helps prevent interference with coil buckets and other suspension parts.
• Built-in O-ring sealed dust cover cap: Keeps contaminants out of the Delta Joint.

Construction & Design:

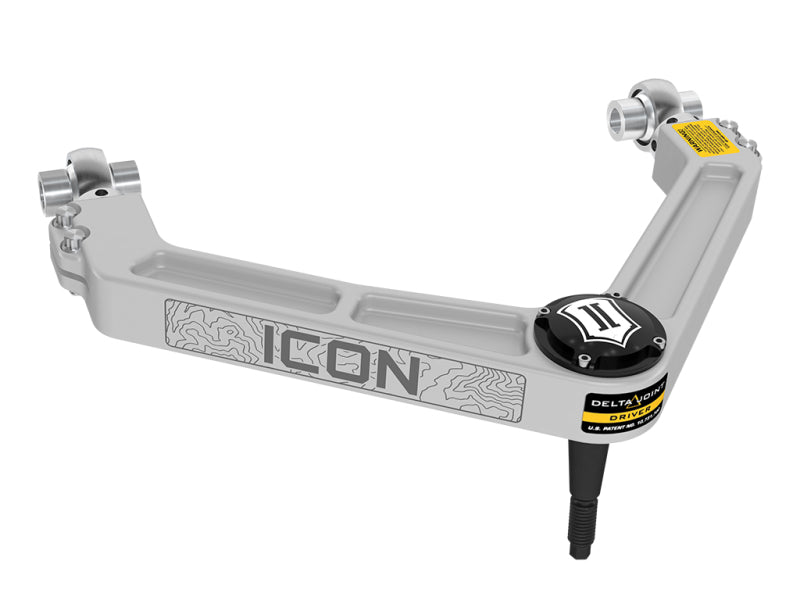

The upper control arms are crafted from CNC machined 6061 billet aluminum, chosen for its excellent strength-to-weight ratio and corrosion resistance. The satin anodized finish not only enhances durability but also provides a sleek, professional appearance. The Delta Joint itself features a zinc-plated housing that resists rust and corrosion, while a robust grease seal protects the internal components from environmental contaminants. The metal-on-metal joint design is greaseable, allowing for maintenance that extends the life of the joint and maintains smooth articulation under demanding conditions.

Installation & Fitment:

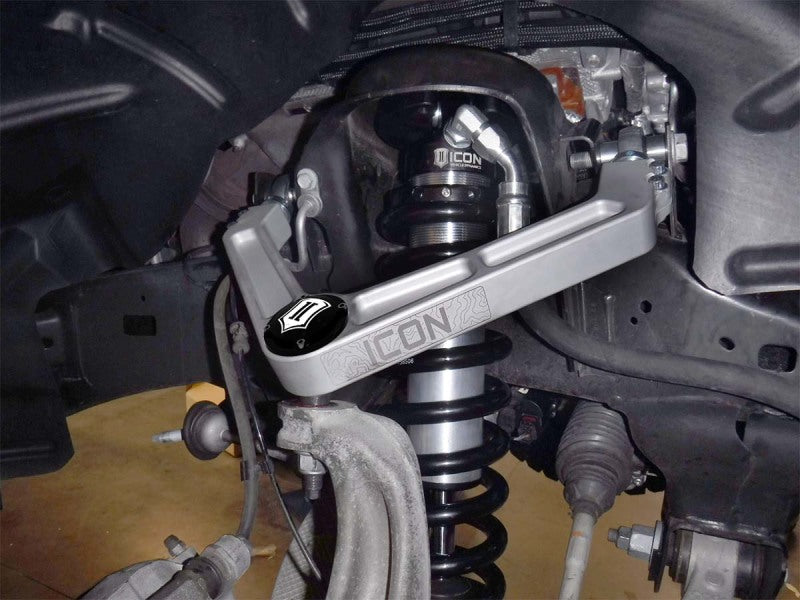

This kit is designed to fit a wide range of Ram 1500 models from 2019 through 2023, including Big Horn, HFE, Laramie, Laramie Longhorn (2019–2021), Limited, Limited Longhorn (2021–2023), Lone Star, Longhorn (2021), Rebel, Special Service (2020–2022), and Tradesman trims. Installation may require minor sanding of the coil bucket for clearance, and it is recommended to cycle the suspension during installation to verify proper fitment and avoid interference. The kit allows for quick and precise adjustment of caster and camber settings directly on the vehicle, facilitating optimal suspension tuning.

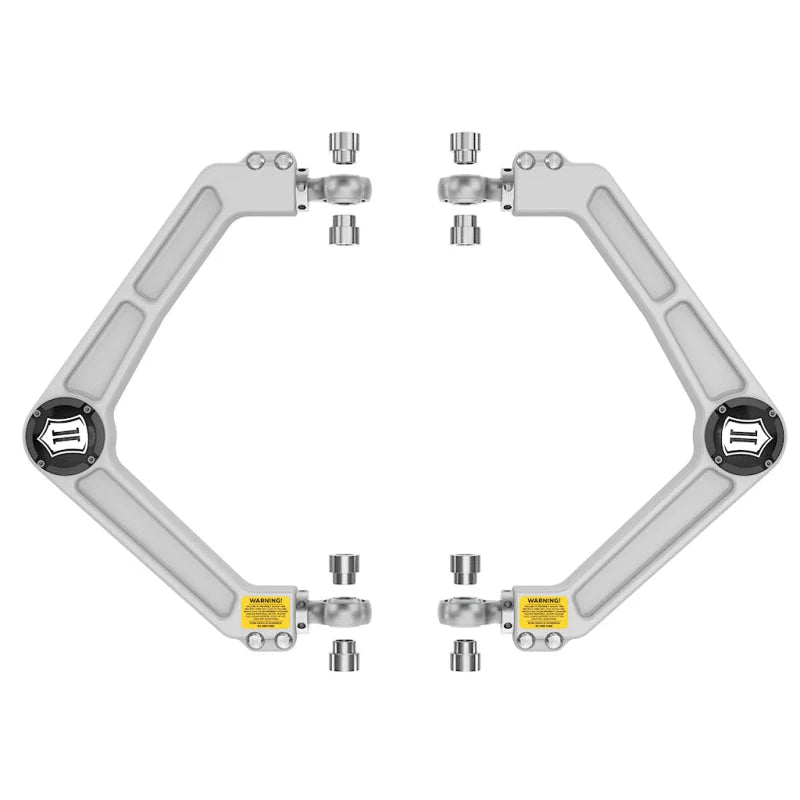

What's Included:

• ICON Billet Upper Control Arms with Delta Joints
• PTFE-lined ¾” FK Rod Ends
• O-ring sealed dust cover caps
• Adjustment hardware and necessary mounting components
• Installation instructions

Ideal For:

This upper control arm kit is perfect for Ram 1500 owners looking to improve front-end suspension geometry, enhance handling, and increase durability. It suits both lifted trucks requiring additional clearance and stock-height vehicles seeking better alignment control. Off-road enthusiasts, daily drivers, and performance-minded individuals will benefit from the robust construction and advanced articulation capabilities of the ICON Delta Joint design.
