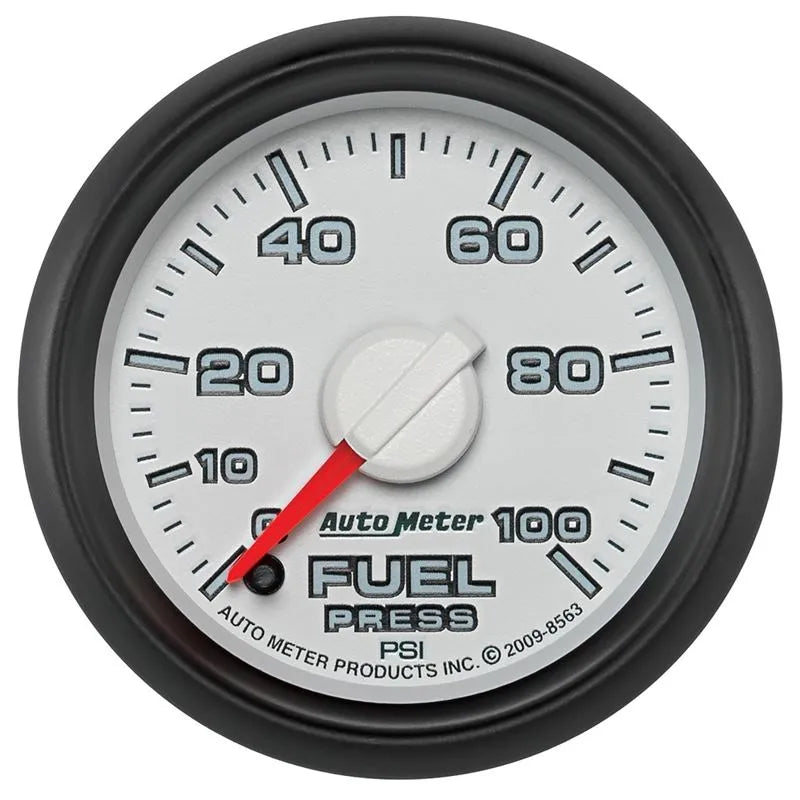

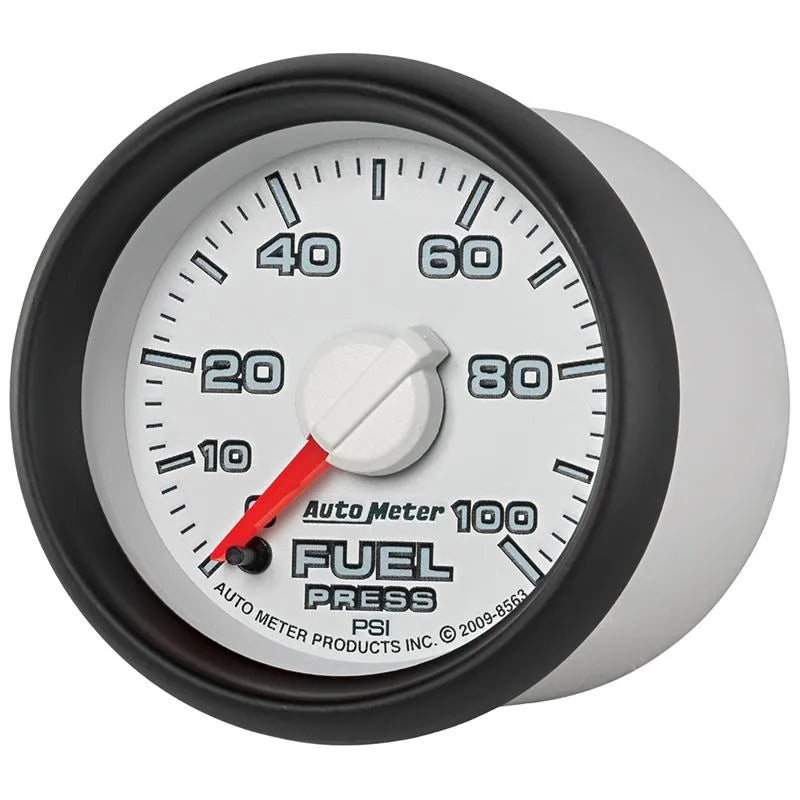

AutoMeter Factory Match Fuel Pressure Gauge

2003–2009 Dodge Ram 1500 / Ram 2500 / Ram 3500

8563

Overview:

The AutoMeter Factory Match Fuel Pressure Gauge is a precision instrument designed to provide accurate, real-time fuel pressure readings for Dodge Ram 1500, 2500, and 3500 models from 2003 to 2009. Whether your vehicle is equipped with fuel injection or a carbureted system, this gauge ensures you can monitor your fuel pressure with confidence. Maintaining correct fuel pressure is critical for optimizing engine performance and preventing costly mechanical failures, making this gauge an essential upgrade for enthusiasts and professionals alike.

Built to meet the demands of both street and race applications, this gauge offers unparalleled accuracy and durability. Its digital stepper motor technology delivers precise measurements that surpass traditional mechanical gauges, giving you the data you need to keep your Ram running at its best.

Key Features:

Designed with advanced technology and user convenience in mind, the AutoMeter Factory Match Fuel Pressure Gauge offers a range of features that set it apart:

• Compatible with 12 and 16-volt electrical systems, fitting nearly every street and race vehicle setup.
• Utilizes a race-proven digital stepper motor for unmatched accuracy and reliability.
• Factory-matched LED through-the-dial lighting ensures clear visibility at night and a seamless OEM instrument cluster appearance.
• Includes a 1/8" NPT stainless steel solid-state pressure transducer for precise and durable fuel pressure measurement.
• Exceptional resistance to vibration and heat, ideal for harsh under-hood environments.
• Self-calibrating stepper motor gauge enhances accuracy by performing an automatic calibration sequence at power-up.
• Direct plug-in wiring harness simplifies installation and supports data logging via a 0.5 to 4.5V analog output.

Construction & Design:

The gauge features a robust construction with a stainless steel pressure transducer that withstands extreme heat and vibration common in engine compartments. The solid-state sensor technology ensures long-term durability and consistent performance without the wear issues associated with mechanical gauges. The gauge face is designed to match factory instrumentation, providing a clean, professional look that integrates seamlessly into your Dodge Ram’s dashboard.

Installation & Fitment:

Installation is straightforward thanks to the included direct plug-in wiring harness and detailed instructions. The gauge is designed specifically for Dodge Ram 1500, 2500, and 3500 models from 2003 through 2009, ensuring a perfect fit and compatibility with the vehicle’s existing electrical system. No extensive modifications are required, making it an ideal upgrade for both DIY enthusiasts and professional installers.

What's Included:

• AutoMeter Factory Match Fuel Pressure Gauge
• 1/8" NPT stainless steel solid-state pressure transducer
• Direct plug-in wiring harness
• Mounting hardware
• Detailed installation instructions

Ideal For:

This fuel pressure gauge is perfect for Dodge Ram owners who demand precise fuel system monitoring to maximize engine performance and reliability. It is especially beneficial for those running modified or high-performance engines, as well as anyone looking to prevent fuel delivery issues that can lead to engine damage. Whether you use your Ram for daily driving, towing, or racing, this gauge provides critical data to keep your fuel system operating safely and efficiently.

AutoMeter is a cornerstone brand in performance instrumentation, offering gauges and data acquisition solutions for street, drag, and motorsports applications. From boost and AFR to oil pressure, temperature, and complete logging systems, AutoMeter helps enthusiasts monitor critical engine vitals and make smarter tuning and reliability decisions under hard use.
