Belltech Performance Handling Kit

2019–2024 Ram 1500 3.6L V6, 5.7L Hemi

Part #: 1061HK

Overview

The Belltech Performance Handling Kit is expertly engineered for 2019 through 2024 Ram 1500 models, including popular trims such as Big Horn, Laramie, Rebel, and Tradesman. This comprehensive kit delivers a refined lowered stance that enhances your truck’s aggressive appearance while significantly improving handling and driving dynamics. By lowering the front suspension between 1" to 3" on 2WD models and 1" to 4" on 4WD models, along with a 3" or 4" drop in the rear, the kit lowers the center of gravity to reduce body roll and increase cornering stability without sacrificing ride comfort.

Designed for Ram 1500 owners who want a perfect blend of style, performance, and everyday drivability, the Belltech Performance Handling Kit preserves factory suspension geometry to maintain the smooth, controlled ride you expect from your truck. Whether you use your Ram for daily driving, light towing, or weekend adventures, this kit offers a durable, high-quality upgrade that transforms your truck’s stance and handling capabilities.

Key Features

The Belltech Performance Handling Kit combines precision engineering with premium components to optimize your Ram 1500’s suspension performance and aesthetics. Key features include:

• Adjustable front lowering options: -1" or -3" for 2WD, -1" or -4" for 4WD models
• Rear lowering options of -3" or -4" for a balanced, aggressive stance

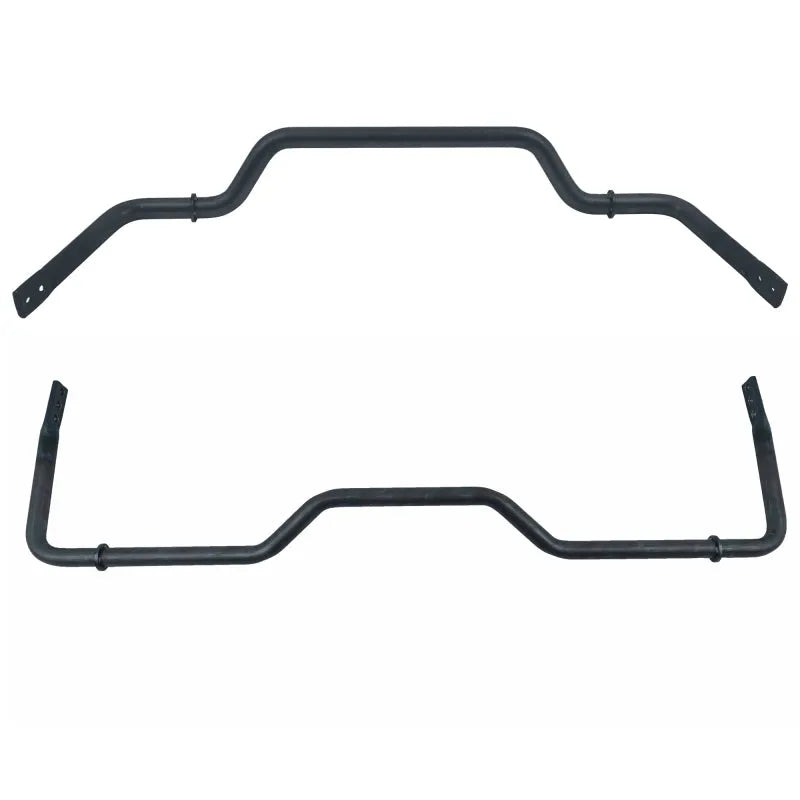

• 1-3/8" diameter solid front sway bar for enhanced front-end stability
• 13/16" diameter hollow rear sway bar to reduce body roll while maintaining ride comfort

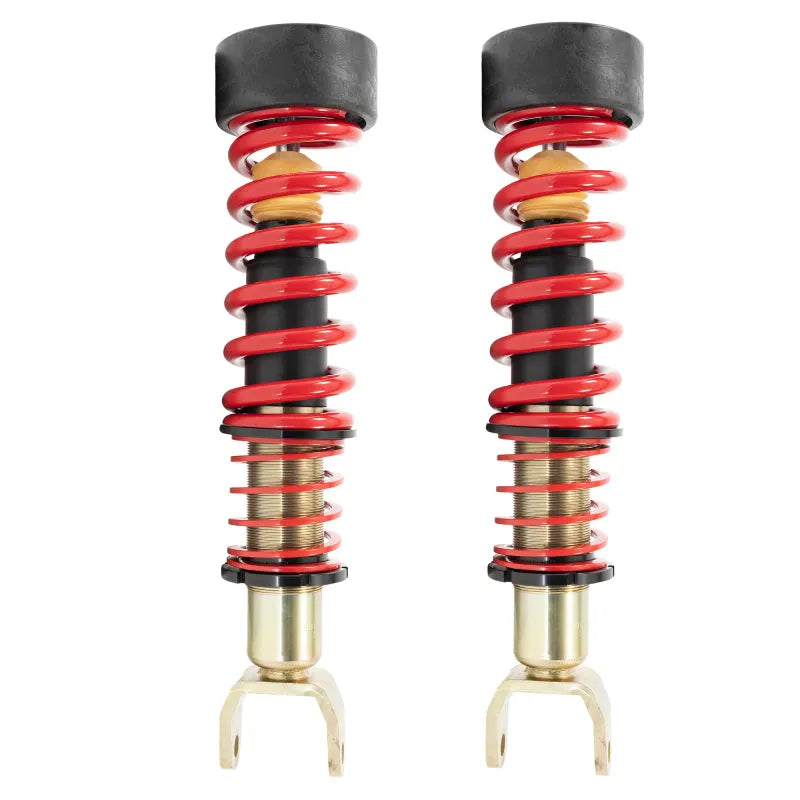

• Large bodied 2.4" (60mm) preset front Street Performance dampers for superior control

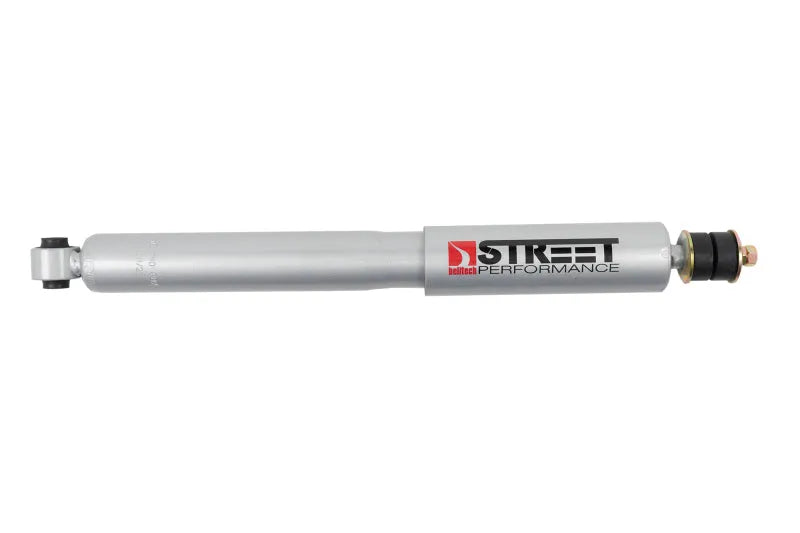

• Large bodied 2.2" (55mm) preset rear Street Performance shocks engineered for durability and performance
• Adjustable length heim joint end links for precise sway bar tuning

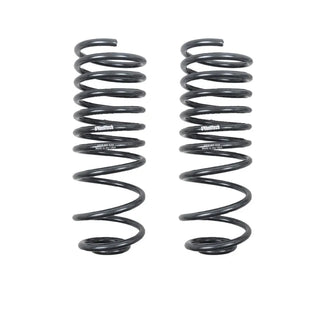

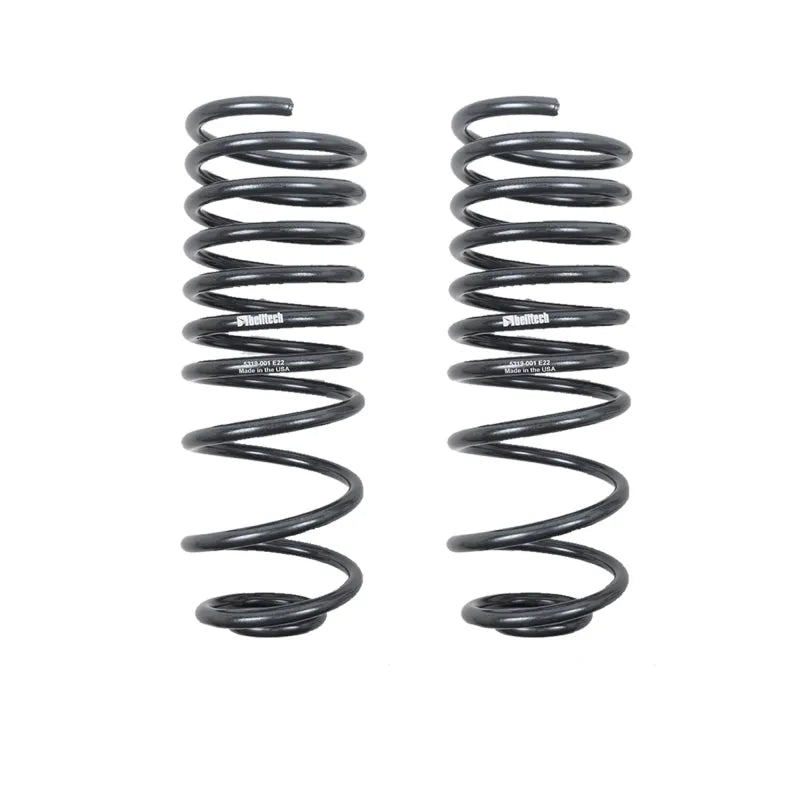

• Cold-formed steel springs and powder-coated spring spacers for strength and corrosion resistance
• Preserves original equipment suspension geometry to maintain factory ride quality
• Comprehensive installation and alignment hardware included for a hassle-free upgrade

Construction & Design

Belltech’s Performance Handling Kit is built with high-quality materials to ensure long-lasting durability and consistent performance. The cold-formed steel springs provide reliable lowering without compromising strength, while the powder-coated spring spacers resist corrosion and wear for extended service life. The front sway bar is crafted from solid steel to maximize stiffness and improve handling precision, whereas the hollow rear sway bar balances weight savings with effective roll control.

The preset Street Performance dampers and shocks feature advanced 35mm independent rebound and compression valves, delivering a refined ride that absorbs road imperfections while enhancing handling responsiveness. Adjustable heim joint end links allow for fine-tuning of sway bar response, enabling you to tailor the suspension setup to your driving preferences and conditions.

Installation & Fitment

This kit is designed for straightforward installation on 2019 through 2024 Ram 1500 models, including Big Horn, HFE, Laramie, Laramie Longhorn (2019–2021), Limited, Limited Longhorn (2021–2024), Lone Star, Longhorn (2021), Rebel, Special Service (2020–2022), and Tradesman trims. All necessary components, hardware, and alignment pieces are included to achieve the specified lowering heights.

Installation requires basic suspension knowledge and common tools, with no major modifications necessary. The kit ships in four boxes to ensure all parts arrive safely and ready for assembly. A professional alignment is recommended after installation to maintain optimal handling characteristics and tire wear.

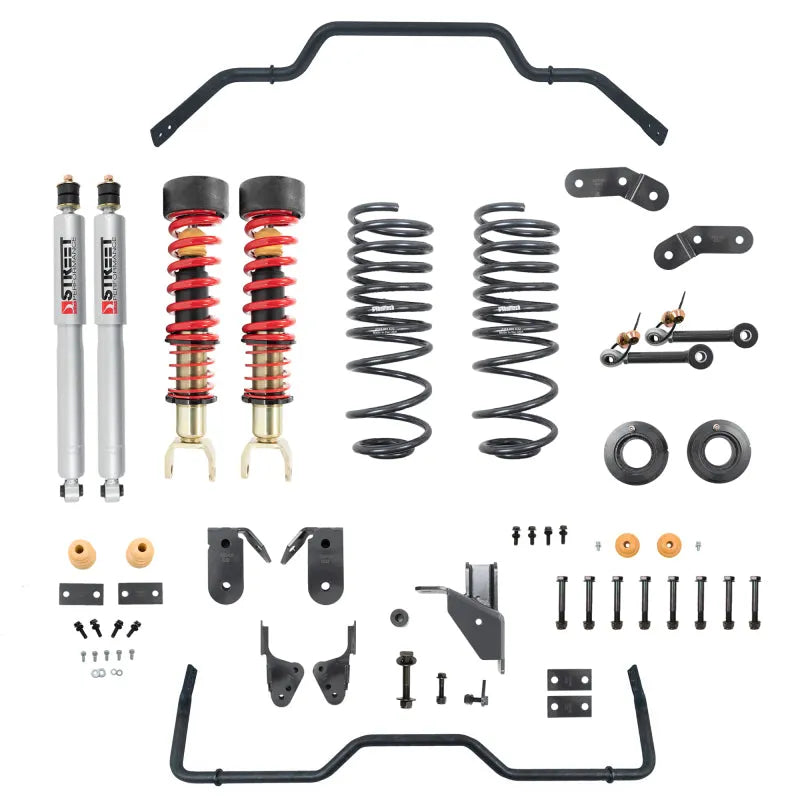

What's Included

• Front lowering components with adjustable drop options
• Rear lowering components with selectable drop heights
• 1-3/8" diameter solid front sway bar
• 13/16" diameter hollow rear sway bar
• Large bodied 2.4" front Street Performance dampers
• Large bodied 2.2" rear Street Performance shocks
• Adjustable length heim joint end links
• Steel, powder-coated spring spacers
• All necessary installation hardware and alignment components

Ideal For

The Belltech Performance Handling Kit is ideal for Ram 1500 owners seeking to enhance their truck’s appearance with a lowered, aggressive stance while improving handling and ride quality. It is perfect for enthusiasts who want a balanced upgrade that reduces body roll, lowers the center of gravity, and maintains factory suspension geometry without sacrificing comfort. Whether you drive a Big Horn, Laramie, Rebel, or Tradesman, this kit suits daily drivers, light towing users, and weekend adventurers alike who demand both style and performance from their Ram 1500.
