Comp Cams Stage 2 HRT 222/230 Max Power Hydraulic CAM KIT

09-25 5.7L Hemi / 6.4L 392 (VVT)

CK201-304-17

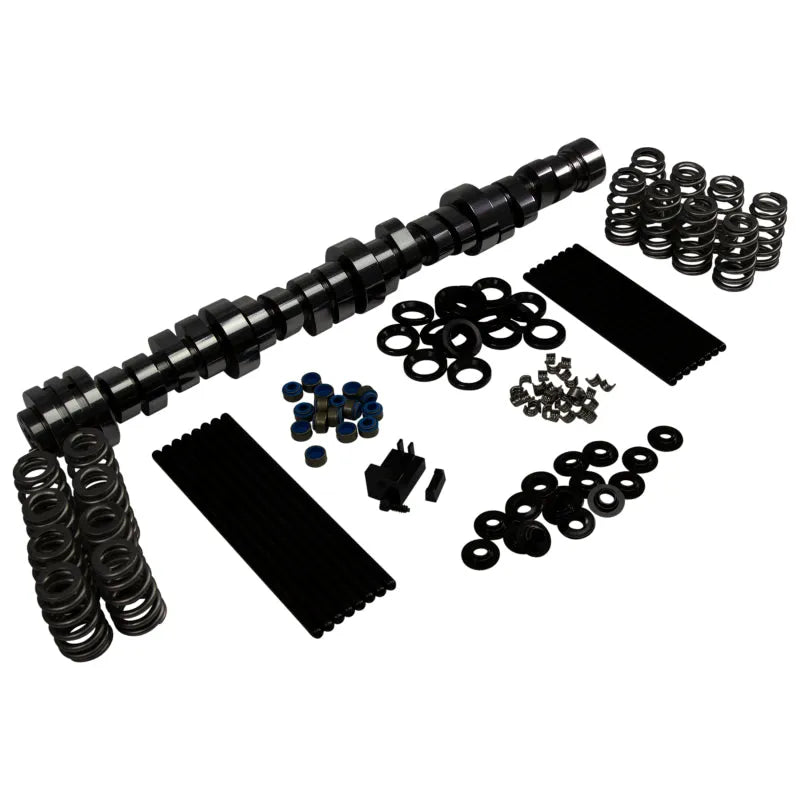

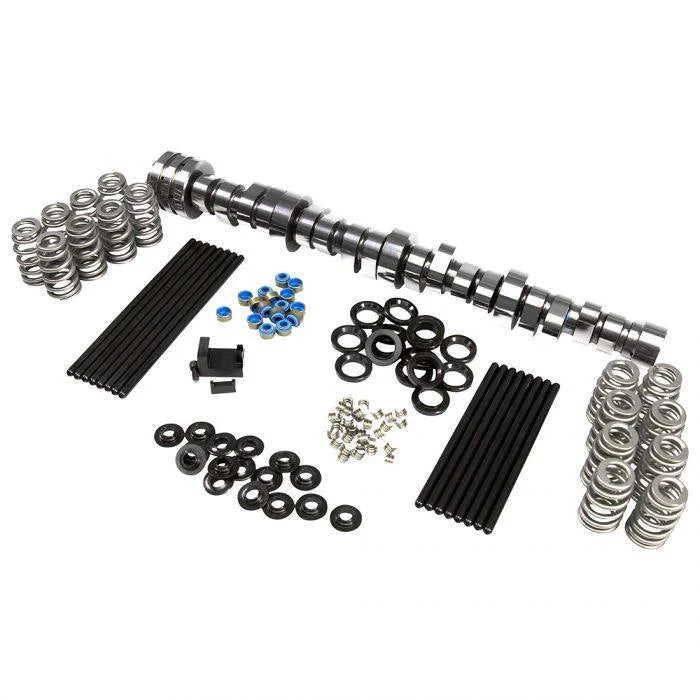

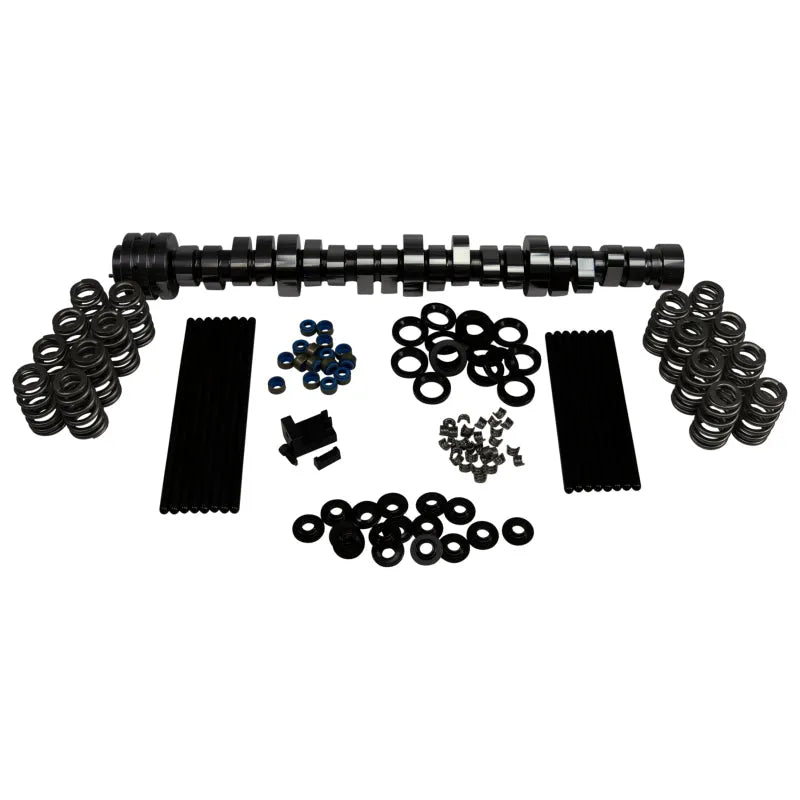

The COMP Cams Stage 2 HRT 222/230 Max Power Hydraulic Cam Kit is the perfect upgrade for HEMI enthusiasts looking for serious all-around performance. Designed for vehicle engine from this camshaft offers the widest torque curve of any cam tested by COMP—delivering noticeable low-end grunt and screaming top-end horsepower. Engineered with Low Shock Technology, the Stage 2 HRT camshaft features advanced lobe profiles that increase power while maintaining valve train stability at high RPMs. These profiles reduce spring fatigue and improve durability, even under aggressive driving or track conditions. This CK-Kit (Camshaft Kit) is tailored to work with #26918 Beehive™ valve springs and includes a complete package of matched components: camshaft, VVT phaser limiter, dual-length pushrods, steel retainers, valve locks, spring seats, valve seals, and performance springs. With proper tuning and installation, this cam kit is capable of adding up to 85 horsepower while supporting a 1900–7000 RPM operating range.

• Application: Dodge 5.7L & 6.4L HEMI VVT Engines (2009–2025)
• Camshaft Series: HRT (High RPM Technology) – Stage 2
• Cam Type: Hydraulic Roller
• Camshaft Material: Billet Steel
• Lifter Type: Hydraulic Roller
• RPM Operating Range: 1900–7000
• Estimated Horsepower Gain: Up to 85 HP
• Valve Springs Required: Yes – designed for COMP #26918 Beehive™ Springs
• Low Shock Technology: Reduces spring stress and improves high-RPM reliability
• Lobe Separation Angle (LSA): 115°
• Intake Centerline: 109°
• Valve Lift:
• Intake: 0.599"
• Exhaust: 0.604"
• Duration @ .050" Lift:
• Intake: 222°
• Exhaust: 230°
• Advertised Duration:
• Intake: 275°
• Exhaust: 278°
• Camshaft: #201-303-17
• VVT Phaser Limiter: #5761
• Pushrods: #7929-8 & #7997-8
• Valve Springs (Beehive™): #26918-16
• Steel Retainers: #761-16
• Valve Locks: #607-16
• Spring Seats: #4683-16
• Valve Seals: #531-16

COMP Cams is a leading performance valvetrain manufacturer, known for camshafts and supporting components built for everything from mild street upgrades to full race engines. Their product range covers camshafts, lifters, valve springs, rocker arms, and timing/valvetrain parts—key pieces for dialing in powerband, drivability, and RPM capability.
