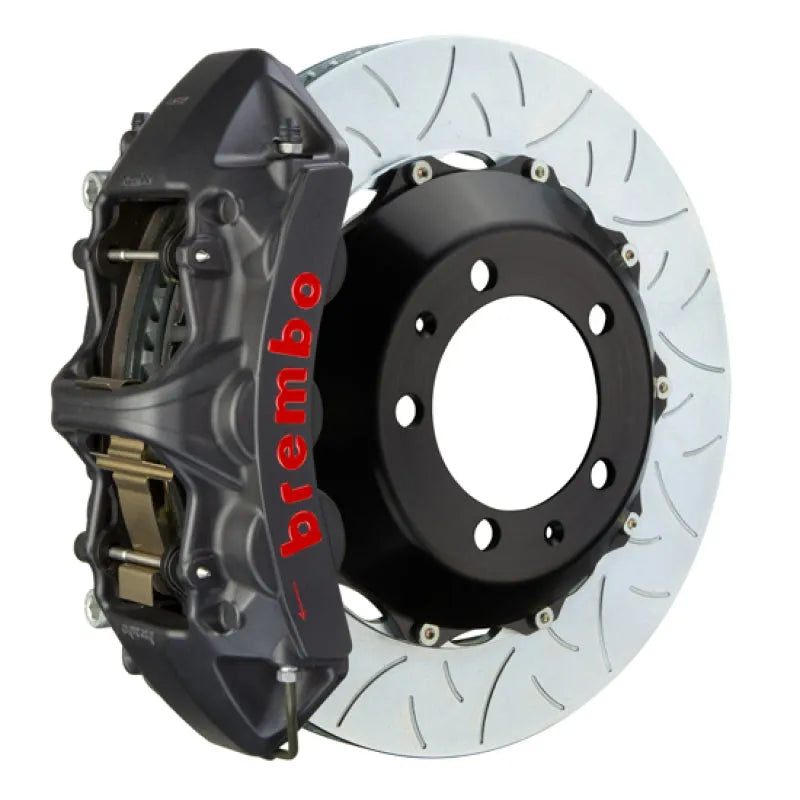

Brembo GTS Front Big Brake System

2005–2008 Dodge Magnum / 2005–2010 Chrysler 300 / 2005–2010 Dodge Challenger / 2006–2010 Dodge Charger 5.7L Hemi RWD

Part #: 1N3.9004AS

Overview

The Brembo GTS Front Big Brake System is a high-performance upgrade designed specifically for select rear-wheel-drive 5.7L Hemi Chrysler and Dodge models from 2005 to 2010. Engineered for drivers who demand superior stopping power and consistent brake performance, this kit is ideal for both spirited street driving and track day use. Featuring 380mm two-piece T3 slotted rotors paired with six-piston monobloc calipers, the system delivers enhanced braking force, improved heat dissipation, and precise pedal feel to elevate your vehicle’s braking capabilities.

Whether you’re upgrading your Dodge Magnum, Chrysler 300, Dodge Challenger, or Dodge Charger, this Brembo kit offers a comprehensive solution that balances performance, durability, and style. It is engineered to reduce stopping distances while maintaining optimal control under demanding conditions.

Key Features

This Brembo GTS brake system incorporates advanced technology and premium materials to ensure top-tier performance and reliability:

• 6-piston monobloc calipers machined from a single billet of cast aluminum for maximum rigidity and minimal flex
• 380mm diameter, 34mm thick two-piece floating T3 slotted rotors with curved 48-vane venting for superior cooling
• Cross-drilled and slotted rotor surfaces to efficiently dissipate heat, brake dust, and gases
• High-carbon alloy rotors with corrosion-resistant plating for extended durability
• Brembo FM1000 high-performance brake pads formulated for consistent friction and fade resistance
• Stainless steel braided brake lines by Goodridge for enhanced brake pedal feel and durability
• Radial mount caliper design for improved stiffness and precise brake modulation
• Complete axle set pre-assembled with all necessary hardware and Brembo-engineered CNC billet caliper adapters
• Anti-rattle springs integrated into rotor mounting system for noise reduction

Construction & Design

The Brembo GTS system is built around monobloc calipers crafted from a single billet of cast aluminum, providing exceptional strength and resistance to deformation during high-stress braking. This design ensures consistent pad contact and improved pedal feel. The two-piece rotors feature a floating hat design with anti-rattle springs, allowing for thermal expansion without compromising structural integrity or performance.

Rotors are manufactured from an advanced high-carbon alloy, which enhances heat tolerance and reduces the risk of cracking. The corrosion-resistant plating further extends rotor life and maintains a clean, professional appearance. The curved 48-vane venting system optimizes airflow to cool the rotors efficiently, reducing brake fade during aggressive driving or track sessions.

Installation & Fitment

This Brembo GTS Front Big Brake System is designed as a direct bolt-on upgrade for the following vehicles equipped with the 5.7L Hemi engine and rear-wheel drive:

• 2005–2008 Dodge Magnum
• 2005–2010 Chrysler 300 (excluding AWD and SRT8 models)
• 2005–2010 Dodge Challenger (excluding AWD and SRT8 models)
• 2006–2010 Dodge Charger (excluding AWD and SRT8 models)

The kit includes all necessary hardware and adapters for a straightforward installation without the need for additional modifications. Professional installation is recommended to ensure optimal performance and safety.

What's Included

• Two 6-piston monobloc front calipers with OEM-approved inner pressure seal pistons and dust boots
• Two 380x34mm (15") two-piece floating T3 slotted rotors with anti-rattle springs
• Brembo FM1000 high-performance brake pads
• Proprietary Brembo stainless steel braided brake lines by Goodridge
• Brembo-engineered CNC billet caliper adapters
• All necessary mounting hardware for complete front axle installation

Ideal For

This Brembo GTS Front Big Brake System is perfect for enthusiasts seeking a significant upgrade in braking performance for their 5.7L Hemi-powered Chrysler or Dodge vehicles. It suits drivers who participate in occasional track days, spirited street driving, or anyone wanting enhanced safety and control through superior stopping power. The system also appeals to those looking to improve brake modulation and pedal feel while adding a high-performance aesthetic to their vehicle’s front end.

Brembo is one of the most recognized names in braking, with deep motorsport roots and a reputation for high-performance braking systems across race and road. From championship-level competition to enthusiast upgrades, Brembo’s focus is consistent: control, thermal management, and reliable stopping power—exactly what you want when horsepower goes up and lap times go down.
