USE COUPON CODE "SUMMER26"
07-10 Dodge Ram 6.7L Diesel
11-18 Ram 2500 6.7L Diesel
11-18 Ram 3500 6.7L Diesel
C5609-052
Cometic Head Gaskets are developed with the performance enthusiast in mind. With so many individual requirements for each motor Cometic offers a number of options to suit your specific motor and needs.

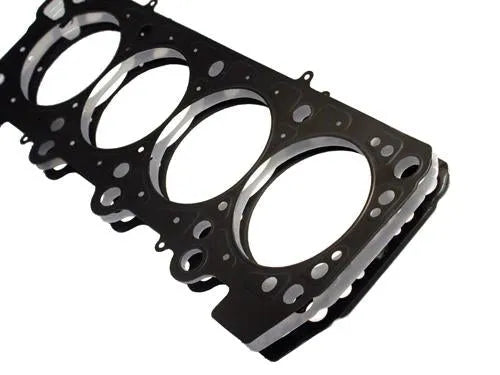

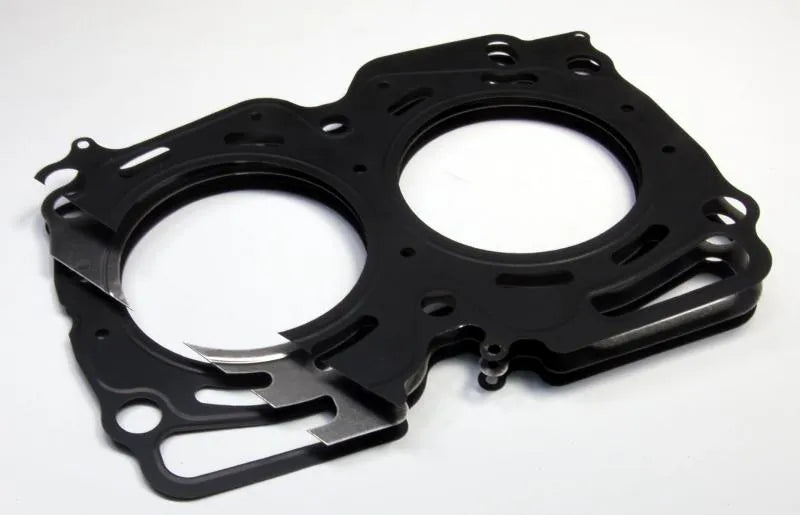

The outer layers of the gasket are embossed and coated on both sides with a flouroelastomer rubber based material (Viton) designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 2500C or 4820F. The center or shim layer of the gasket is comprised of an uncoated Stainless Steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks. The composition of MLS will also withstand the shearing forces created by aluminum heads on cast iron blocks. No re-torque is necessary. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion. *CFM-20* A perforated steel core with an elastomer surface is ideal for head gaskets allowing heat to be drawn evenly across the gasket surface while providing maximum sealing characteristics when exposed to coolants and oils. *COPPER*
Cometic Gasket supplies high-performance sealing solutions for motorsports and high-stress engine builds, with a strong focus on modern gasket materials like multi-layer steel (MLS) head gaskets. Their catalog spans head gaskets and complete gasket sets across a wide range of applications, helping builders maintain reliable combustion and fluid sealing under extreme pressure and heat.
ETA stands for Estimated Time of Arrival. The date shown is calculated using our Available-to-Promise (ATP) system, which tracks real-time supplier commitments to determine when a product is expected to be available for delivery. Specifically, the date is calculated by adding 9 business days from the date a supplier has committed to ship the product, representing a worst-case scenario for when we can expect to receive inventory.
Please note: The ETA is an estimate, not a guarantee. While we work closely with our suppliers to keep dates as accurate as possible, delays due to shipping carriers, weather, customs, or supplier-side issues may occasionally push the actual arrival beyond the date shown. Likewise, inventory may arrive sooner than the ETA in many cases. If you would like to be notified for when this item arrives, sign up for our back in stock notifications!

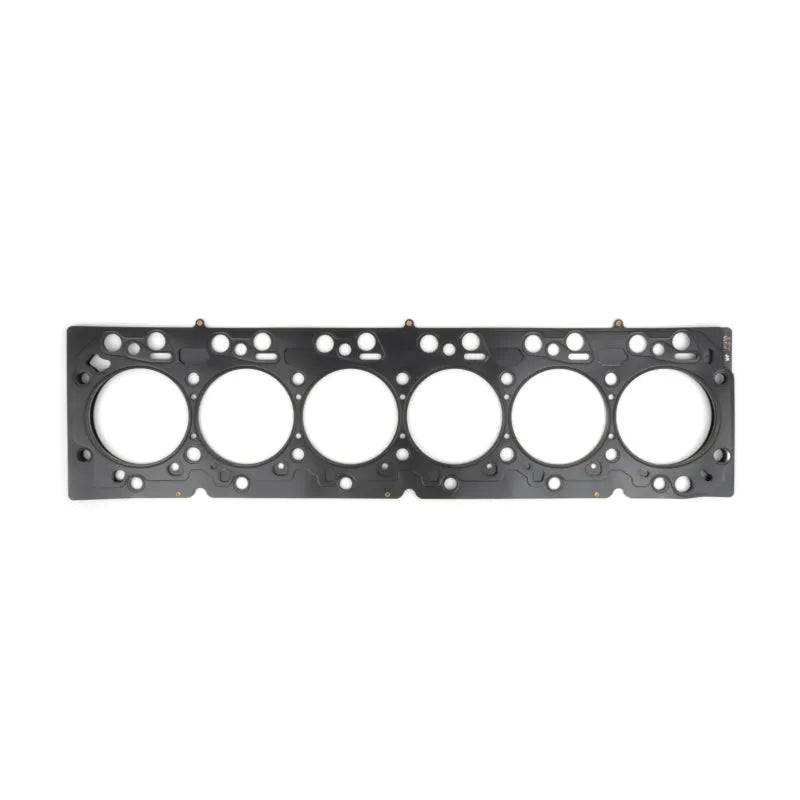

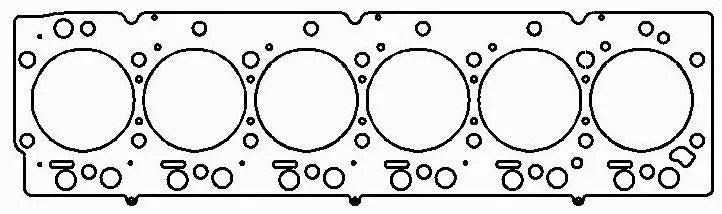

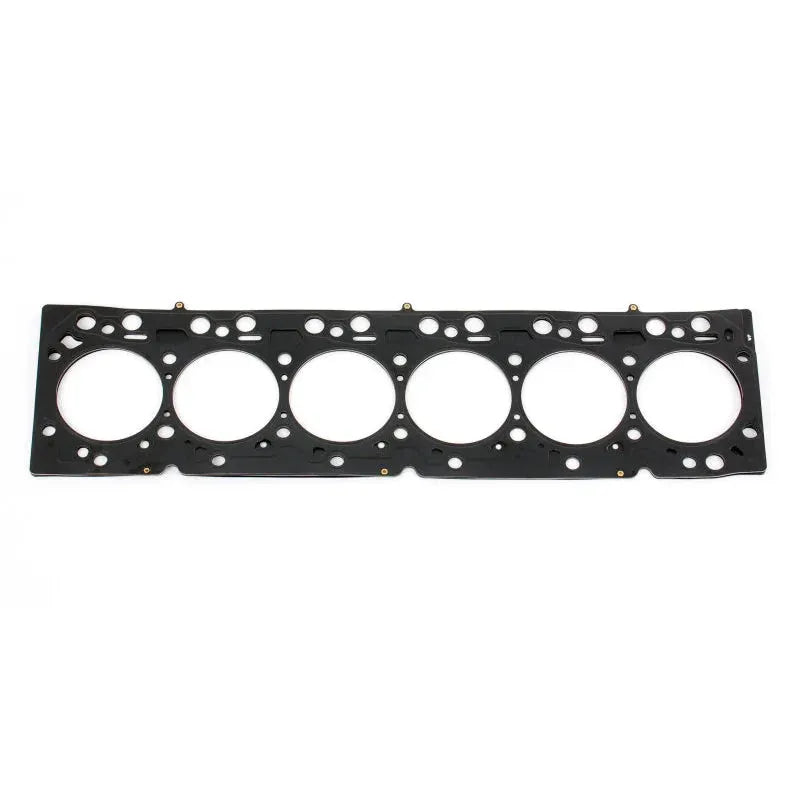

C5609-052 Cometic 11-18 Dodge Ram, 2500 & 3500 6.7L Diesel MLX Head Gasket (4.312" Bore, .052" Thickness). COMETIC MLX (Multi-Layer Stopper) gaskets utilize an integrated stopper layer for combustion chamber sealing and improved clamp load around the cylinder without increasing bore distortion.
FLAT RATE SHIPPING
MADE IN THE USA
Adding product to your cart
07-10 Dodge Ram 6.7L Diesel
11-18 Ram 2500 6.7L Diesel
11-18 Ram 3500 6.7L Diesel
C5609-052
Cometic Head Gaskets are developed with the performance enthusiast in mind. With so many individual requirements for each motor Cometic offers a number of options to suit your specific motor and needs.
The outer layers of the gasket are embossed and coated on both sides with a flouroelastomer rubber based material (Viton) designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 2500C or 4820F. The center or shim layer of the gasket is comprised of an uncoated Stainless Steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks. The composition of MLS will also withstand the shearing forces created by aluminum heads on cast iron blocks. No re-torque is necessary. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion. *CFM-20* A perforated steel core with an elastomer surface is ideal for head gaskets allowing heat to be drawn evenly across the gasket surface while providing maximum sealing characteristics when exposed to coolants and oils. *COPPER*
Cometic Gasket supplies high-performance sealing solutions for motorsports and high-stress engine builds, with a strong focus on modern gasket materials like multi-layer steel (MLS) head gaskets. Their catalog spans head gaskets and complete gasket sets across a wide range of applications, helping builders maintain reliable combustion and fluid sealing under extreme pressure and heat.
