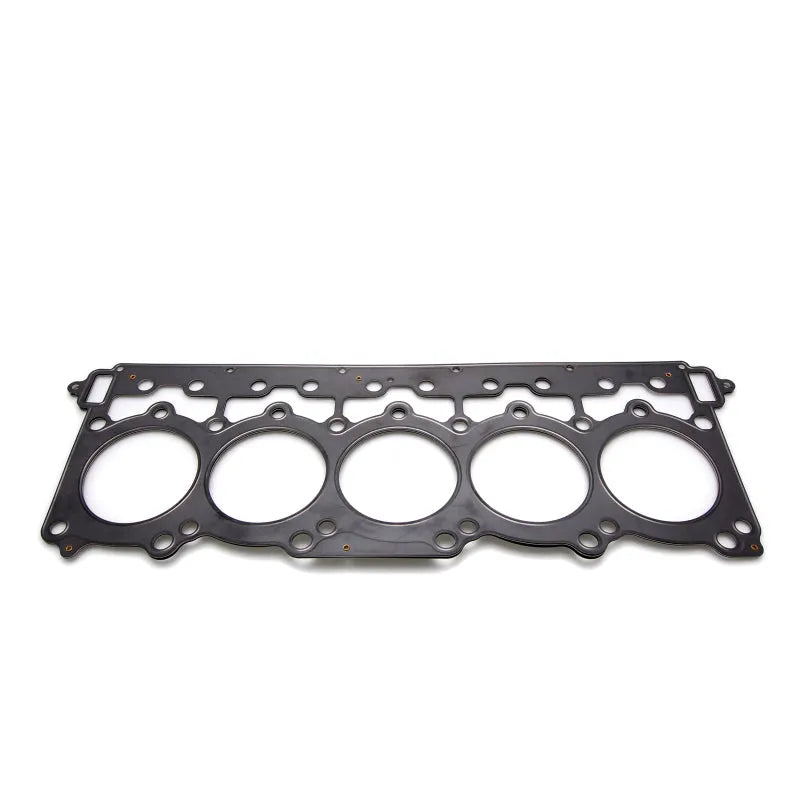

Cometic Gasket MLS Head Gasket

1996–2006 Dodge Viper

C5814-120

Overview:

The Cometic MLS (Multi-Layer Steel) Head Gasket is engineered to deliver superior sealing performance for high-output engines, specifically designed for the Dodge Viper models from 1996 through 2006. This gasket is ideal for enthusiasts and professionals seeking a reliable, durable solution that withstands the extreme conditions of performance driving and racing applications. Featuring a 103.12mm bore and a compressed operating thickness of 0.036 inches, it ensures a precise fit and optimal sealing between the cylinder head and engine block.

Built to handle the demanding thermal and mechanical stresses of the Viper’s powerful V10 engine, this gasket eliminates the need for additional sealants, providing a clean and efficient installation. Whether you are rebuilding or upgrading your engine, the Cometic MLS head gasket offers peace of mind with its proven durability and resistance to blowouts.

Key Features:

Designed with advanced materials and construction techniques, the Cometic MLS head gasket offers numerous benefits:

• Multi-layer stainless steel construction for enhanced strength and durability
• Embossed outer layers coated with Viton rubber for superior heat and chemical resistance
• Viton coating withstands temperatures up to 250°C (482°F), ensuring long-lasting sealing performance
• Compatible with aluminum heads to aluminum blocks and aluminum heads to cast iron blocks, resisting shearing forces
• Center shim layer of uncoated stainless steel tailored for precise thickness and sealing requirements
• Compressed operating thickness of 0.036 inches for optimal gasket crush and sealing
• Eliminates the need for additional sealants, simplifying installation
• Specifically designed for Chrysler SR II/ZB I Viper engines with a 4.060-inch bore

Construction & Design:

The Cometic MLS head gasket is constructed from multiple embossed layers of high-grade stainless steel, providing exceptional strength and the ability to rebound under pressure. The outer layers are coated on both sides with Viton, a fluorocarbon elastomer known for its excellent resistance to heat, oil, and chemicals. This coating ensures a reliable seal even under harsh operating conditions.

The gasket’s center layer is an uncoated stainless steel shim, which can be customized to meet specific thickness requirements, allowing for precise sealing and durability. This multi-layer design effectively manages the differential expansion between aluminum heads and cast iron or aluminum blocks, preventing leaks and gasket failure.

Installation & Fitment:

This MLS head gasket is a direct fit replacement for Dodge Viper models from 1996 to 2006, compatible with both early and later generation V10 engines. Installation requires standard head gasket replacement procedures, with no special sealants needed thanks to the gasket’s Viton coating and multi-layer steel construction. Proper torque specifications and head bolt tightening sequences should be followed to ensure optimal sealing and longevity.

What's Included:

• One Cometic MLS Head Gasket, 103.12mm bore, 0.120 inch thickness

Ideal For:

This head gasket is ideal for performance enthusiasts, engine builders, and professional mechanics working on Dodge Viper engines from 1996 to 2006. It is especially suited for high-output, naturally aspirated, or forced induction builds where reliable sealing under extreme conditions is critical. Whether for street performance, track use, or racing applications, this gasket provides the durability and sealing integrity required to maintain engine performance and reliability.

Cometic Gasket supplies high-performance sealing solutions for motorsports and high-stress engine builds, with a strong focus on modern gasket materials like multi-layer steel (MLS) head gaskets. Their catalog spans head gaskets and complete gasket sets across a wide range of applications, helping builders maintain reliable combustion and fluid sealing under extreme pressure and heat.
