Fabtech Performance Coilover Suspension System

2019–2021 Ram 1500 Big Horn, HFE, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel, Tradesman

K3094DL

Overview:

The Fabtech 6-inch Performance Coilover Suspension System is engineered to elevate your Ram 1500’s offroad capability and on-road comfort by increasing ride height while maintaining factory suspension components. Designed specifically for 2019 to 2021 Ram 1500 models, this system integrates heavy-duty bracketry and Fabtech’s proven Independent Front Suspension (IFS) technology to deliver superior ground clearance and enhanced vehicle control. Featuring premium Dirt Logic shocks and coilovers, it ensures outstanding damping performance for both rugged trails and highway cruising.

Ideal for Ram 1500 owners seeking a reliable lift kit that balances aggressive offroad performance with everyday drivability, this system preserves electronic stability control functionality and factory load capacity, making it a versatile upgrade for a variety of driving conditions.

Key Features:

This comprehensive suspension system offers a range of advanced features designed to improve your Ram 1500’s suspension geometry, ride quality, and durability:

• 6-inch lift using factory suspension components enhanced with heavy-duty steel bracketry
• Front Dirt Logic 2.5-inch stainless steel coilovers with NitroSteel piston rods for superior damping
• Extended length ductile iron steering knuckles maintain near-stock track width and ESC compatibility
• 1/4-inch thick steel lower control arm crossmembers with arched design for maximum ground clearance
• Four adjustable alignment cams for precise suspension tuning
• Heavy-duty sway bar drop brackets retain factory link ends at correct angles to prevent binding
• Rear lift achieved with steel coil spring spacers utilizing factory coil springs for proper load capacity
• Rear Dirt Logic 2.25 shocks and 2.5-inch stainless steel coilover shocks for enhanced rear damping
• Compatible with aftermarket 20-inch wheels or larger; minor trimming may be required for larger tires

Construction & Design:

Fabtech’s suspension system is built with durability and performance in mind. The front crossmembers are constructed from 1/4-inch thick steel with a fully welded box design, providing exceptional strength and rigidity while maximizing ground clearance through an arched profile. The extended length steering knuckles are crafted from ductile iron, ensuring long-lasting durability and maintaining proper suspension geometry for electronic stability control systems.

The Dirt Logic coilovers feature stainless steel bodies and NitroSteel piston rods, materials chosen for corrosion resistance and strength under demanding offroad conditions. Rear coil spring spacers are made from heavy-duty steel, allowing the use of factory coil springs to preserve load capacity and ride comfort on highways.

Installation & Fitment:

This lift kit is designed for direct bolt-on installation using factory mounting points and components, minimizing the need for extensive modifications. It is compatible with 2019 to 2021 Ram 1500 models including Big Horn, HFE, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel, and Tradesman trims. Note that it does not fit 2019 Ram 1500 Classic models, Rebel models equipped with factory air suspension, or vehicles with OEM 22-inch wheels and heavy-duty bearing options.

Aftermarket 20-inch wheels or larger are required for proper fitment, and minor trimming may be necessary when running 35-inch or 37-inch tires on 20x9 wheels with 5-inch backspacing. The system retains factory electronic stability control functionality and requires no modifications to the factory ESC system.

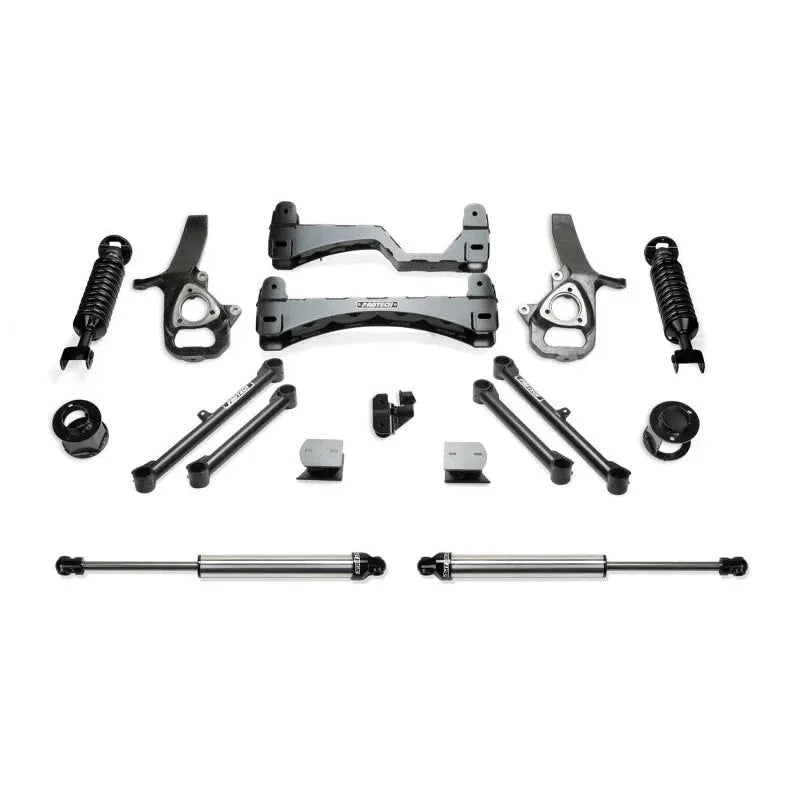

What's Included:

• Front Dirt Logic 2.5-inch stainless steel coilovers with 6-inch lift
• Extended length ductile iron steering knuckles
• 1/4-inch thick steel lower control arm crossmembers with adjustable alignment cams
• Heavy-duty sway bar drop brackets
• Rear steel coil spring spacers
• Rear Dirt Logic 2.25 shocks and 2.5-inch stainless steel coilover shocks
• All necessary mounting hardware and brackets

Ideal For:

This Fabtech Performance Coilover Suspension System is perfect for Ram 1500 owners who demand a balanced lift kit that enhances offroad capability without sacrificing on-road comfort or factory safety features. Whether you’re tackling rugged trails, hauling heavy loads, or cruising highways, this system provides the durability, ride quality, and suspension performance needed for versatile daily driving and weekend adventures.

Fabtech is an off-road suspension leader producing lift kits, shocks, and related components to increase ride height, clear larger tires, and improve capability. Their systems are engineered for specific trucks and SUVs, blending on-road drivability with the added travel and strength enthusiasts want for trails, desert runs, and overland builds.
