Fabtech Performance Coilover Suspension System

2019–2021 Ram 1500 Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel, Special Service, Tradesman

K3087DL

Overview:

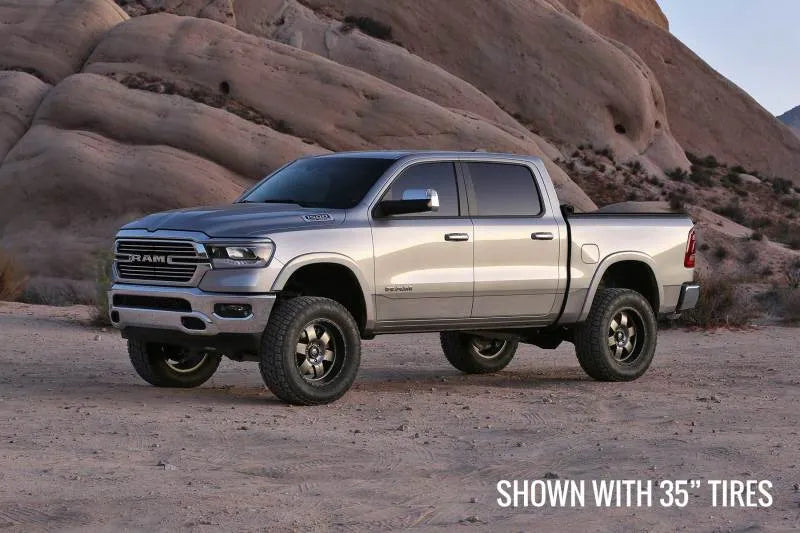

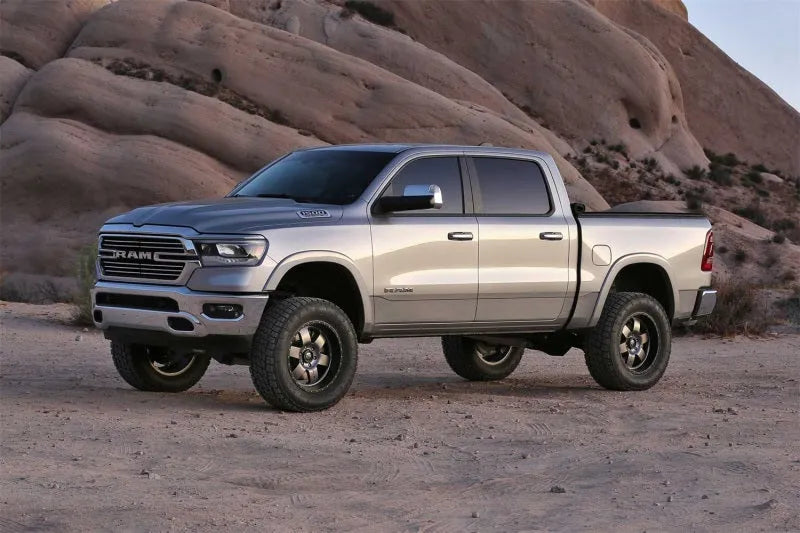

The Fabtech 6-inch Performance Coilover Suspension System is engineered specifically for 2019 to 2021 Ram 1500 models, including Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel, Special Service, and Tradesman trims. This suspension upgrade is ideal for Ram owners who want to maintain a stock-like ride quality while accommodating larger tires and wheels for enhanced off-road capability and aggressive styling.

Featuring Fabtech’s proven Independent Front Suspension (IFS) technology, this system relocates the factory suspension components using heavy-duty bolt-on brackets designed for durability and long-lasting performance. It ensures proper factory electronic stability control functionality through extended length ductile iron steering knuckles, making it a reliable choice for daily driving and rugged terrain alike.

Key Features:

This coilover suspension system combines advanced engineering with robust materials to deliver superior ride quality and off-road readiness. Key features include:

• 6-inch lift height to fit larger tires up to 37x12.50R20 with minor trimming
• Heavy-duty 1/4-inch thick steel lower control arm crossmembers for improved ground clearance
• Integrated front differential skid plate for drivetrain protection
• Fabtech Dirt Logic 2.5-inch stainless steel coilover shocks in the front for outstanding damping and highway comfort
• Rear lift achieved with steel coil spring spacers utilizing factory coil springs to maintain stock load capacity
• Rear Dirt Logic 2.25-inch shocks for balanced rear suspension performance
• Maintains factory electronic stability control and steering geometry
• Heavy-duty bolt-on bracketry for trouble-free installation and durability
• Designed for use with aftermarket 20-inch wheels or larger

Construction & Design:

Fabtech’s suspension system is built with high-quality materials engineered for strength and longevity. The extended length steering knuckles are crafted from ductile iron, providing enhanced durability while preserving factory steering and stability control functions. The lower control arm crossmembers are constructed from 1/4-inch thick steel, offering superior ground clearance and resistance to off-road impacts.

The coilover shocks feature stainless steel bodies, which resist corrosion and provide consistent damping performance over time. Rear coil spring spacers are made from heavy-duty steel, allowing the use of factory coil springs to maintain the truck’s original load-carrying capabilities and ride comfort on highways.

Installation & Fitment:

This suspension system is designed for bolt-on installation using heavy-duty brackets that relocate the factory suspension components. Minor trimming of the wheel wells may be required to accommodate larger tires, especially when running 37x12.50R20 tires on 20x9 wheels with a 5-inch backspacing. It is important to note that this system is not compatible with factory air suspension and will not fit 2019 Ram 1500 Classic models.

Owners must use aftermarket wheels 20 inches or larger, as OEM wheels and tires are not compatible with this lift system. Proper installation ensures the retention of factory electronic stability control and steering geometry for safe and reliable operation.

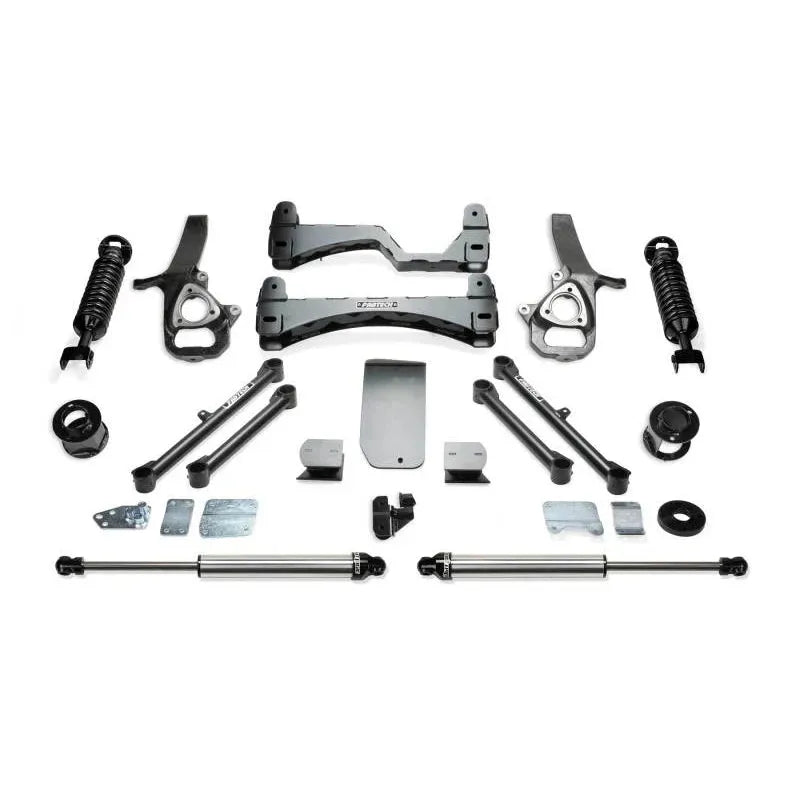

What's Included:

• Front and rear heavy-duty coilover shocks (Dirt Logic 2.5 front, Dirt Logic 2.25 rear)
• Extended length ductile iron steering knuckles
• Steel coil spring spacers for rear lift
• 1/4-inch thick steel lower control arm crossmembers
• Integrated front differential skid plate
• Heavy-duty bolt-on relocation brackets
• All necessary hardware for installation

Ideal For:

This Fabtech coilover suspension system is perfect for Ram 1500 owners who want to upgrade their truck’s stance and off-road capability without sacrificing ride quality or factory electronic features. It is especially suited for those running larger tires and aftermarket wheels who require a reliable, durable suspension that maintains stock load capacity and highway comfort.

Fabtech is an off-road suspension leader producing lift kits, shocks, and related components to increase ride height, clear larger tires, and improve capability. Their systems are engineered for specific trucks and SUVs, blending on-road drivability with the added travel and strength enthusiasts want for trails, desert runs, and overland builds.
