Fabtech Performance Coilover Suspension System
2019–2021 Ram 1500 Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel, Special Service, Tradesman
K3088DL
Overview:
The Fabtech Performance Coilover Suspension System is engineered specifically for 2019 to 2021 Ram 1500 models, offering a perfect balance between maintaining a stock-like ride quality and accommodating larger tires and wheels. This system is ideal for Ram 1500 owners who want to enhance their truck’s off-road capability and appearance without sacrificing comfort or factory electronic stability control functionality. Featuring heavy-duty bolt-on bracketry and Fabtech’s proven independent front suspension (IFS) technology, this suspension upgrade delivers reliable, trouble-free performance for years to come.
Designed to provide a 6-inch lift, the system includes Dirt Logic 2.5 stainless steel coilover shocks with remote reservoirs for superior heat dissipation and damping control. The rear suspension lift is achieved using steel coil spring spacers that retain the factory coil springs, ensuring excellent load-carrying capacity and a smooth highway ride. This comprehensive suspension solution enhances ground clearance, protects drivetrain components, and preserves the truck’s handling characteristics.
Key Features:
The Fabtech Performance Coilover Suspension System combines durability, adjustability, and advanced engineering to elevate your Ram 1500’s performance and stance. Key features include:
- Heavy-duty 1/4" thick steel lower control arm crossmembers with an arched design for maximum ground clearance
- Four adjustable alignment cams providing a wide range of alignment adjustments for precise handling
- Extended length ductile iron steering knuckles that maintain near-stock track width and ensure compatibility with factory electronic stability control (ESC)
- Stainless steel Dirt Logic 2.5 coilover shocks with aluminum remote reservoirs to reduce shock fade and improve heat dissipation
- Heavy-duty front differential skid plate constructed from 1/4" thick steel to protect the front differential from off-road obstacles
- Rear lift achieved through steel coil spring spacers utilizing factory coil springs for stock load capacity and ride quality
- Fully welded box design crossmembers for enhanced strength and durability
- Integrated differential mounts that reposition the front differential for proper CV axle alignment
Construction & Design:
Fabtech’s suspension system is built with premium materials and precision engineering to withstand demanding off-road conditions while maintaining on-road comfort. The lower control arm crossmembers are fabricated from 1/4" thick steel and feature a fully welded box design, ensuring exceptional strength and rigidity. The extended length steering knuckles are made from ductile iron, providing durability and maintaining proper geometry for factory ESC compatibility.
The coilover shocks feature stainless steel bodies and NitroSteel® piston rods for corrosion resistance and long-lasting performance. Aluminum remote reservoirs help dissipate heat efficiently, reducing shock fade during extended off-road use. The rear coil spring spacers are crafted from steel to maintain the factory spring rate and load-carrying capacity, preserving the truck’s ride quality and handling characteristics.
Installation & Fitment:
This suspension system is designed for direct bolt-on installation using heavy-duty bracketry, minimizing the need for extensive modifications. It fits 2019 to 2021 Ram 1500 models including Big Horn, Laramie, Laramie Longhorn (2019–2020), Limited, Lone Star, Rebel, Special Service (2021), and Tradesman trims. Note that this system is not compatible with factory air suspension, OEM 22" wheels with heavy-duty bearing option, Rebel models equipped with certain configurations, or 2019 Ram 1500 Classic models.
Minor trimming may be required to accommodate larger 35" or 37" tires on 20x9 wheels with 5" backspacing. Aftermarket wheels 20" or larger are required, and OEM wheels and tires cannot be used with this system.

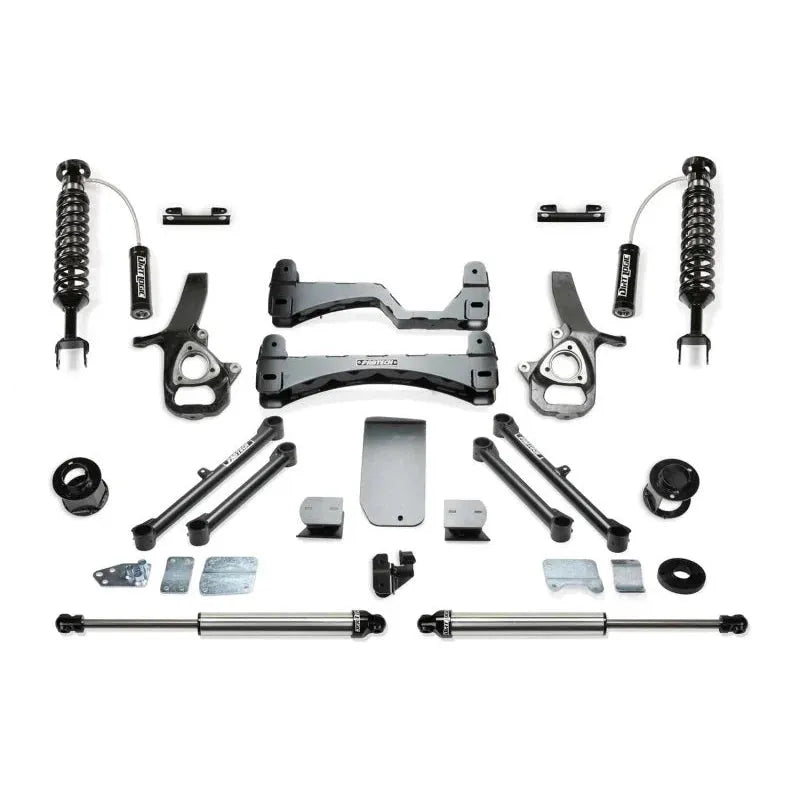

What's Included:
- Front and rear Fabtech Dirt Logic 2.5 coilover shocks with remote reservoirs
- Rear Dirt Logic 2.25 shocks
- Heavy-duty 1/4" thick steel lower control arm crossmembers
- Extended length ductile iron steering knuckles
- Steel coil spring spacers for rear lift
- Front differential skid plate
- All necessary mounting hardware and alignment cams
Ideal For:
This suspension system is perfect for Ram 1500 owners seeking a reliable, high-quality lift solution that supports larger tires and wheels without compromising ride comfort or factory electronic stability control. It is well-suited for enthusiasts who use their trucks for daily driving, highway cruising, and moderate off-road adventures, providing enhanced ground clearance and drivetrain protection while maintaining excellent on-road manners.
Fabtech is an off-road suspension leader producing lift kits, shocks, and related components to increase ride height, clear larger tires, and improve capability. Their systems are engineered for specific trucks and SUVs, blending on-road drivability with the added travel and strength enthusiasts want for trails, desert runs, and overland builds.
Fabtech Performance Coilover Suspension System: Ram 1500 2019-2021 w/ DLSS 2.5 Reservoir Front and Rear
- Unit price
- /per
What does the Available to Promise date mean?
ETA stands for Estimated Time of Arrival. The date shown is calculated using our Available-to-Promise (ATP) system, which tracks real-time supplier commitments to determine when a product is expected to be available for delivery. Specifically, the date is calculated by adding 9 business days from the date a supplier has committed to ship the product, representing a worst-case scenario for when we can expect to receive inventory.
Please note: The ETA is an estimate, not a guarantee. While we work closely with our suppliers to keep dates as accurate as possible, delays due to shipping carriers, weather, customs, or supplier-side issues may occasionally push the actual arrival beyond the date shown. Likewise, inventory may arrive sooner than the ETA in many cases. If you would like to be notified for when this item arrives, sign up for our back in stock notifications!
K3088DL Fabtech Ram 1500 2019-2021 w/ DLSS 2.5 Reservoir Front and Rear Performance Coilover Suspension System. The Fabtech Performance Coilover Suspension System enhances ride quality and ground clearance for Ram 1500 models from 2019 to 2021. Designed for Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel, Special Service, and Tradesman trims, it features heavy-duty steel crossmembers and Dirt Logic 2.5 coilover shocks with remote reservoirs for superior damping and durability. This system maintains factory electronic stability control while supporting larger tires and wheels, delivering a balanced on- and off-road performance without sacrificing stock ride comfort.
