ICON Stage 4 Suspension System

2009–2012 Dodge Ram 2500 / Ram 3500

K214553T

Overview:

The ICON 4.5in Stage 4 Suspension System is a premium upgrade designed specifically for 2009 to 2012 Dodge Ram 2500 and Ram 3500 models. This advanced suspension kit builds upon the proven technology of ICON’s 2.5" systems, delivering increased lift height and enhanced ground clearance for serious off-road capability and aggressive stance. Ideal for enthusiasts seeking a balance of rugged off-road performance and smooth on-road handling, the Stage 4 system ensures proper steering geometry and superior suspension articulation throughout the entire travel range.

Whether tackling rough trails or cruising highways, this suspension system provides a refined driving experience with improved control, comfort, and durability. It is engineered to accommodate larger tires up to 35" without modifications and some 37" tires with minor fender trimming, making it a versatile choice for heavy-duty Ram trucks.

Key Features:

The ICON Stage 4 Suspension System incorporates a range of high-performance components and innovative engineering to maximize strength, adjustability, and ride quality:

• 4.5" lift height for increased ground clearance and aggressive stance
• Dual rate coil springs for optimized ride comfort and load handling
• Tubular steel upper and lower link arms to improve suspension articulation and reduce bushing bind
• Polyurethane bump stops with billet extensions for enhanced durability and travel control
• Sway bar drop brackets to maintain proper sway bar geometry after lift installation
• Forged pitman arm for improved steering response and strength
• Adjustable bearing-style track bar with FK bearings for precise axle centering and increased rigidity
• 2.5" ICON V.S. Series shocks featuring forged stems, billet top caps, and 7/8" shafts for consistent damping performance
• Track bar drop bracket to maintain proper alignment and handling characteristics

Construction & Design:

Every component in the ICON Stage 4 Suspension System is engineered for durability and performance. The tubular steel link arms are designed to withstand harsh off-road conditions while reducing the binding commonly found in factory rubber bushings. The polyurethane bump stops provide long-lasting resistance to wear and compression, protecting suspension travel. ICON’s 2.5" V.S. Series shocks incorporate FK bearings and forged stems with rolled threads, delivering superior strength and consistent damping across all terrains. The forged pitman arm and heavy-duty brackets ensure the system maintains proper steering geometry and alignment, even under extreme loads.

Installation & Fitment:

This suspension system is a direct fit for Dodge Ram 2500 and 3500 models from 2009 through 2012, including Laramie, SLT, ST, SXT, TRX, Longhorn, and Outdoorsman trims. Installation requires professional mechanical skills and may involve multiple boxes due to the comprehensive nature of the kit. The system allows for proper clearance of 35" tires without modifications, while some 37" tires may require minor fender trimming for optimal fitment. ICON’s extensive testing ensures that all components work seamlessly together for a reliable and precise installation.

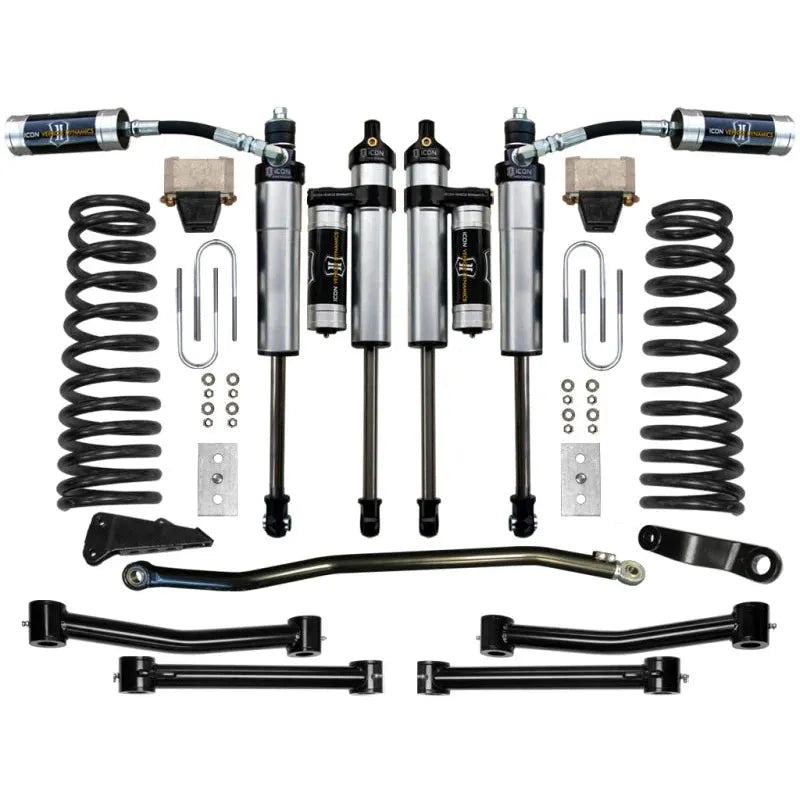

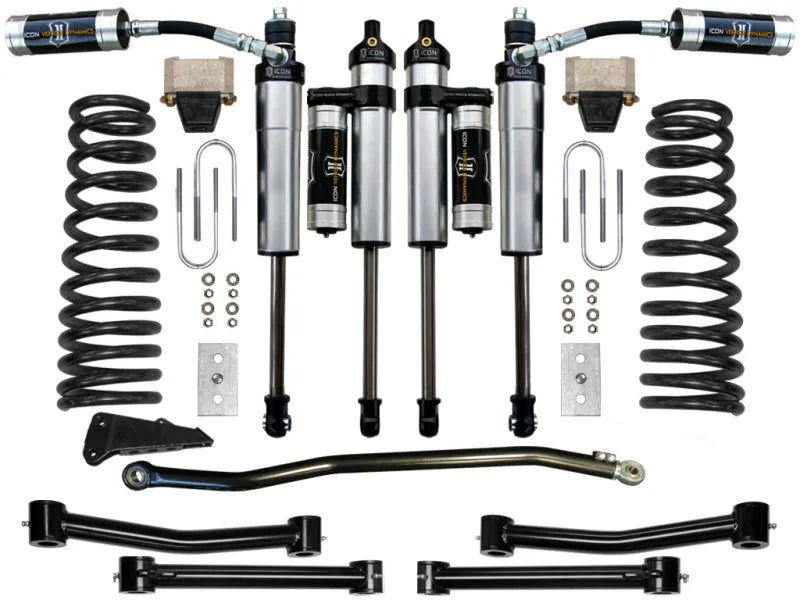

What's Included:

• Dual rate coil springs
• Tubular steel upper and lower link arms
• Polyurethane bump stops with billet extensions
• Sway bar drop brackets
• Forged pitman arm
• Track bar drop bracket
• 2.5" ICON V.S. Series shocks with FK bearings and forged stems
• Bearing-style adjustable track bar

Ideal For:

The ICON 4.5in Stage 4 Suspension System is perfect for Dodge Ram 2500 and 3500 owners who demand enhanced off-road capability without sacrificing on-road comfort. It suits enthusiasts who regularly navigate challenging terrain, require additional tire clearance, and want a suspension that maintains precise steering and alignment. This system is also ideal for those looking to upgrade their truck’s suspension with durable, high-quality components that deliver consistent performance and long-term reliability.
