ICON Stage 5 Suspension System

2009–2013 Dodge Ram 2500 / 2009–2012 Dodge Ram 3500

K214554T

Overview:

The ICON Stage 5 Suspension System is a premium 4.5-inch lift kit designed specifically for Dodge Ram 2500 (2009–2013) and Ram 3500 (2009–2012) models. This advanced suspension upgrade builds upon ICON’s proven 2.5-inch technology by adding increased lift height, enhanced ground clearance, and extensive user adjustability. Engineered for both on-road comfort and off-road capability, the Stage 5 system ensures improved steering geometry and suspension performance throughout the entire travel range. It is ideal for enthusiasts seeking a durable, high-performance suspension that supports larger tires and aggressive terrain without sacrificing highway drivability.

Key Features:

The ICON Stage 5 Suspension System combines innovative engineering and robust components to deliver superior ride quality and off-road prowess. Key features include:

• 4.5-inch lift height providing ample ground clearance for 35" tires and compatibility with some 37" tires with minor trimming
• Dual rate coil springs for balanced ride comfort and load handling
• Heavy-duty tubular steel upper and lower link arms that increase strength and reduce bushing bind
• Polyurethane bump stops with billet extensions to protect suspension travel
• Sway bar drop brackets and forged pitman arm to maintain proper steering geometry
• Adjustable bearing-style track bar with drop bracket for precise axle centering and improved rigidity
• ICON 2.5" V.S. Series shocks featuring Compression Damping Control Valve (CDCV) for tunable compression damping
• Shocks equipped with FK bearings, billet top caps and rod ends, 7/8" shafts, and forged stems with rolled threads for durability

Construction & Design:

Every component in the Stage 5 Suspension System is engineered for strength and longevity. The tubular steel link arms are forged for maximum rigidity and designed to reduce the binding commonly found in factory bushings, enhancing articulation and alignment range. ICON’s shocks are built with premium materials including FK bearings and billet aluminum parts, ensuring consistent damping performance and resistance to wear. The system’s polyurethane bump stops and billet extensions protect suspension components during extreme travel, while the forged pitman arm and track bar drop bracket maintain precise steering geometry under lifted conditions.

Installation & Fitment:

The Stage 5 Suspension System is designed for direct fitment on Dodge Ram 2500 models from 2009 to 2013 and Ram 3500 models from 2009 to 2012. Installation requires no major modifications and allows for proper clearance of 35-inch tires without trimming. Some 37-inch tires may fit with minor fender well trimming. The kit ships in multiple boxes and includes all necessary components for a comprehensive suspension upgrade. Professional installation is recommended to ensure optimal performance and safety.

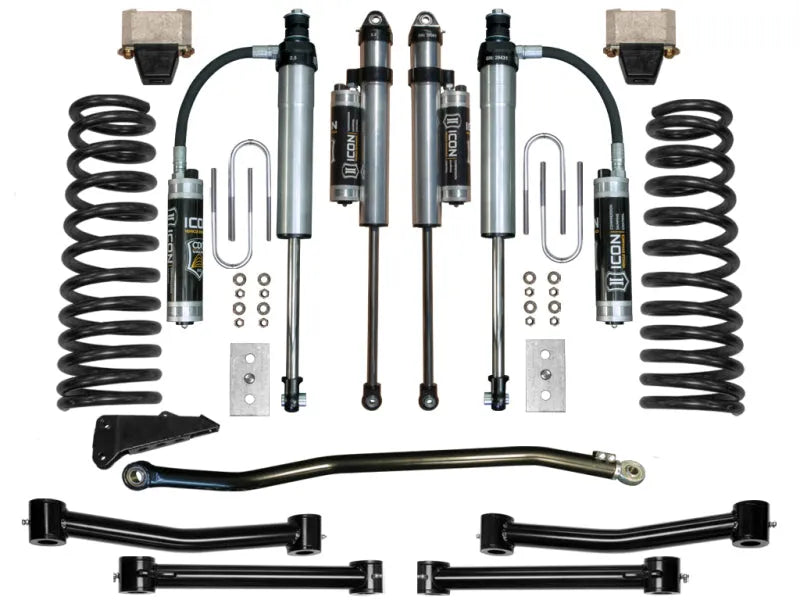

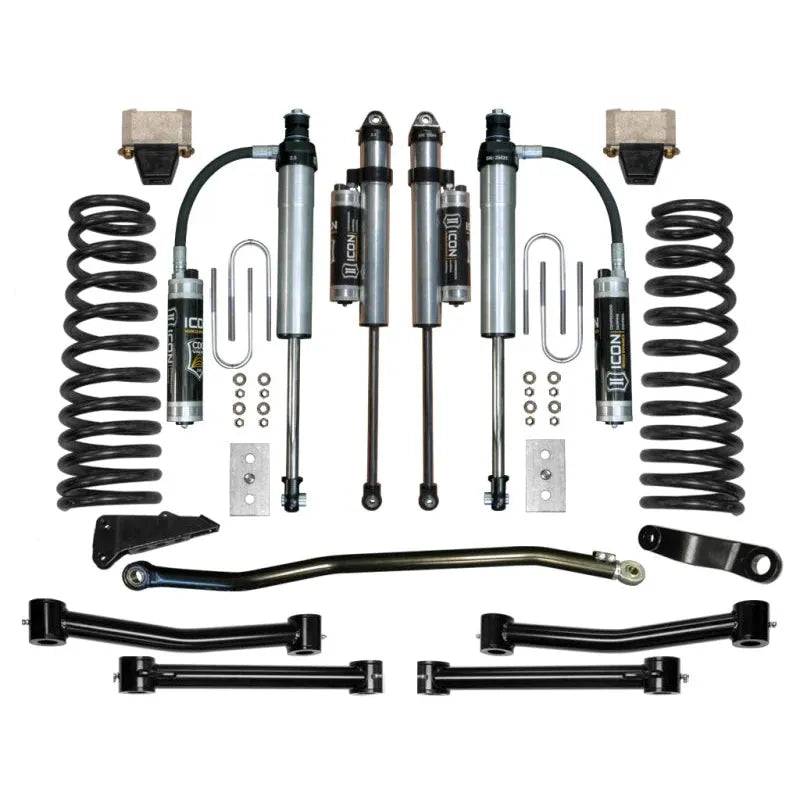

What's Included:

• Dual rate coil springs
• Tubular steel upper and lower link arms
• Polyurethane bump stops with billet extensions
• Sway bar drop brackets
• Forged pitman arm
• Track bar drop bracket
• 2.5" ICON V.S. Series shocks with CDCV and external compression adjustment
• Bearing-style adjustable track bar

Ideal For:

This suspension system is perfect for Dodge Ram 2500 and 3500 owners who demand a versatile lift kit capable of handling heavy-duty off-road use while maintaining smooth highway manners. It suits drivers looking to run larger tires, improve suspension articulation, and enhance steering precision without compromising daily drivability. Whether tackling rugged trails or cruising on pavement, the ICON Stage 5 Suspension System delivers reliable performance and durability.
