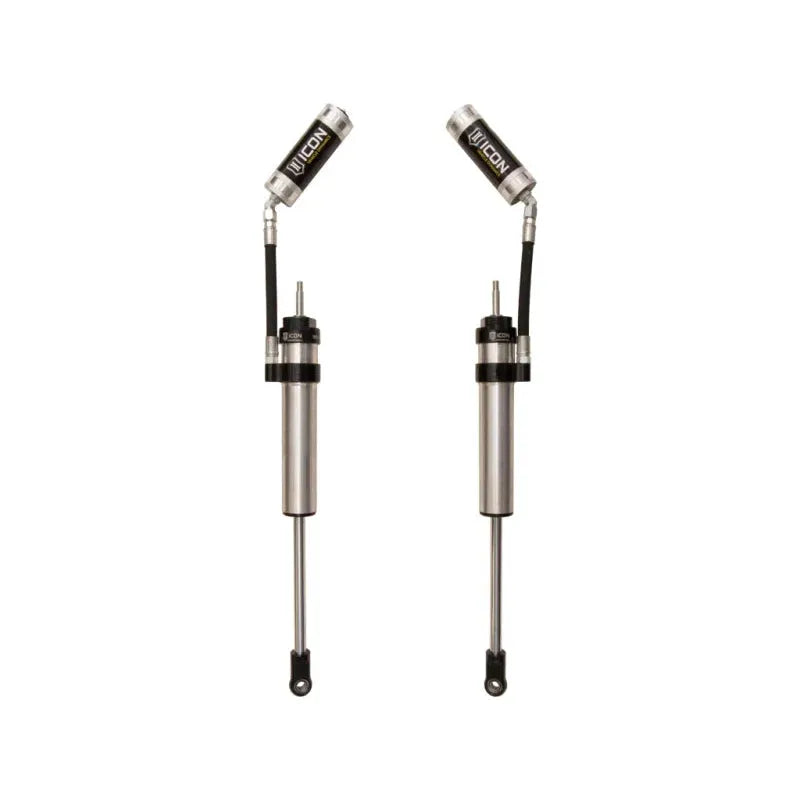

ICON 2.5 Series Front Lift Shocks

2013–2022 Ram 3500 / 2014–2022 Ram 2500

217803P

Overview:

The ICON 2.5 Series Front Lift Shocks are engineered specifically for Ram 3500 (2013–2022) and Ram 2500 (2014–2022) models, delivering exceptional off-road capability combined with a smooth, controlled ride on paved roads. Designed with vehicle-specific valving and length, these shocks optimize suspension performance to handle demanding terrains and heavy loads while maintaining comfort and stability. Ideal for enthusiasts seeking enhanced suspension travel and improved damping control, ICON’s 2.5 Series shocks provide a reliable upgrade for lifted Ram trucks.

Built to withstand rigorous off-road conditions, these shocks are fully rebuildable and revalveable, allowing for long-term serviceability and customizable tuning to match your driving style and terrain. Whether tackling rocky trails or cruising highways, the ICON 2.5 Series Front Lift Shocks enhance your Ram’s suspension response and durability.

Key Features:

ICON’s 2.5 Series Front Lift Shocks incorporate advanced technology and premium materials to deliver superior performance and longevity. Key features include:

• One-piece digressive piston design with vehicle-specific valving for precise damping and ride quality
• ICON’s patented internal “Bump Zone” manifold increases damping force by 20% near full compression to prevent harsh bottom outs
• Remote reservoir design improves heat dissipation, reducing shock fade during extended off-road use
• Constructed from 6061 billet aircraft-grade aluminum with CNC machining for strength and corrosion resistance
• 7/8” diameter induction hardened, chrome-plated shock shaft for durability and smooth operation
• Nitrogen-charged monotube design for consistent performance under varying conditions
• Premium grade 5WT shock oil ensures stable damping across a wide temperature range
• PTFE-lined spherical bearings and application-specific mounting hardware for precise fit and reduced wear
• 100% rebuildable and revalveable for long-term maintenance and tuning flexibility

Construction & Design:

The ICON 2.5 Series Front Lift Shocks feature a robust construction that balances lightweight design with exceptional strength. The shock bodies are crafted from aircraft-grade 6061 aluminum, CNC machined for precision and finished to resist corrosion in harsh environments. The one-piece impact-extruded cylinders provide consistent internal dimensions, ensuring reliable damping performance over time.

Inside, the shocks utilize a digressive piston design tailored specifically for Ram 2500 and 3500 models, optimizing the damping curve for both off-road articulation and on-road comfort. The unique internal “Bump Zone” manifold, positioned just below the shock’s top cap, adds an extra 20% damping force during high-velocity compression events, effectively controlling suspension travel and preventing bottoming out on rough terrain.

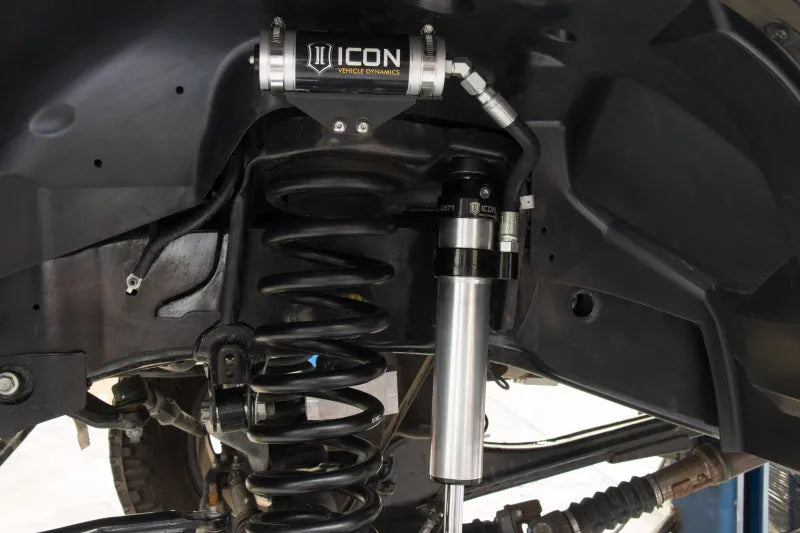

Installation & Fitment:

These shocks are designed as direct replacements for the front suspension of Ram 3500 trucks from 2013 through 2022 and Ram 2500 trucks from 2014 through 2022, covering a wide range of trims including Big Horn, Laramie, Limited, Longhorn, Lone Star, Outdoorsman, Power Wagon, SLT, and Tradesman. Installation requires no major modifications and fits vehicles with a 4.5" front lift setup.

Mounting hardware and PTFE-lined spherical bearings are included to ensure a precise and secure fit. Professional installation is recommended to guarantee optimal performance and safety.

What's Included:

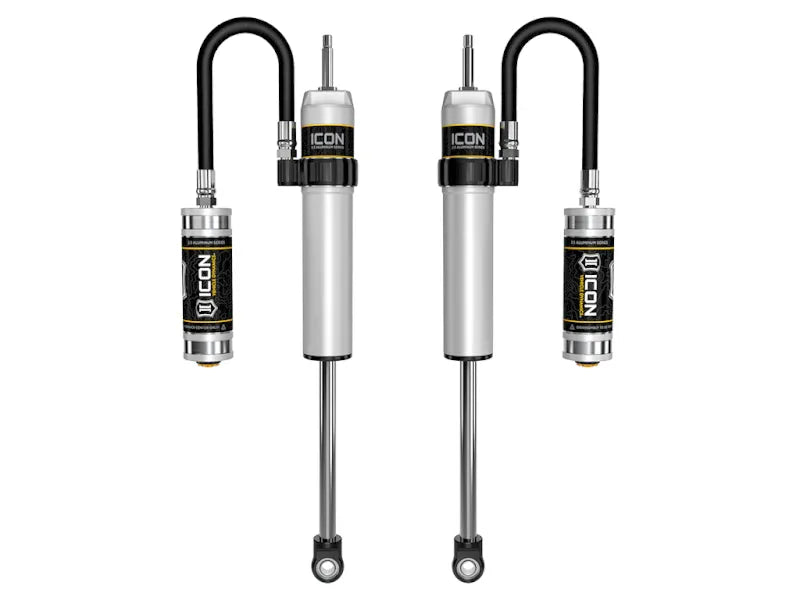

• Pair of ICON 2.5 Series Front Lift Shocks with remote reservoirs
• Application-specific mounting hardware
• PTFE-lined spherical bearings
• Installation instructions

Ideal For:

The ICON 2.5 Series Front Lift Shocks are perfect for Ram 2500 and 3500 owners who demand enhanced suspension performance for off-road adventures without sacrificing on-road comfort. They are especially suited for trucks equipped with a 4.5" front lift, used in heavy-duty towing, hauling, or rugged trail driving. Enthusiasts looking for a durable, tunable shock absorber that can be rebuilt and revalved over time will appreciate the long-term value and adaptability of this product.
