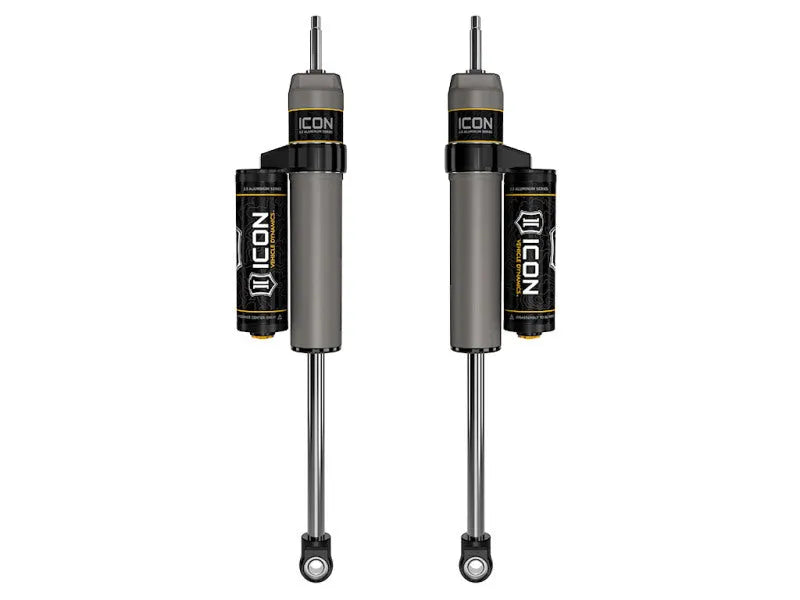

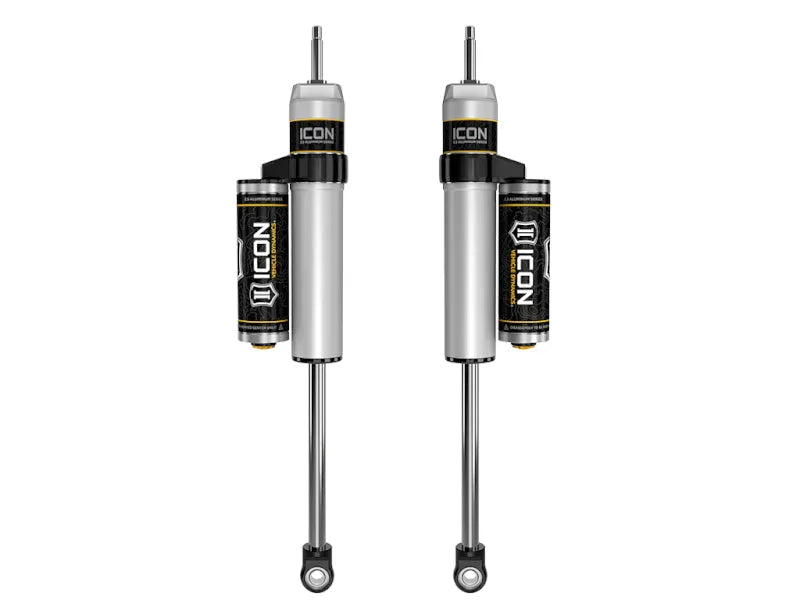

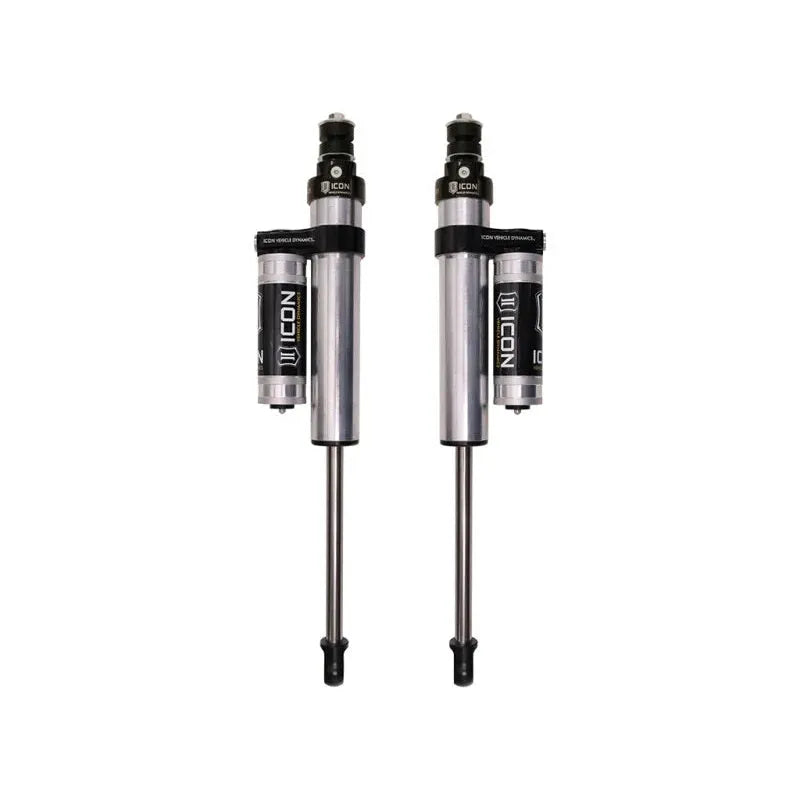

ICON 2.5 Series Rear Shocks
2019–2023 Ram 1500 Big Horn, HFE, Laramie, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, Longhorn, Rebel, Special Service, Tradesman
217716P
Overview:
The ICON 2.5 Series Rear Shocks are precision-engineered performance shocks designed specifically for the 2019–2023 Ram 1500 lineup. Built to deliver exceptional off-road capability while maintaining a smooth and controlled ride on paved roads, these shocks are ideal for Ram owners seeking enhanced suspension performance without sacrificing daily drivability. Each shock is custom valved and sized to match the unique suspension characteristics of your Ram 1500, ensuring optimal damping and ride quality.
Whether tackling rugged trails or cruising highways, the ICON 2.5 Series Rear Shocks provide superior control, improved handling, and increased durability. Their rebuildable and revalveable design allows for long-term serviceability and tuning flexibility to adapt to evolving driving needs.
Key Features:
Designed with advanced technology and premium materials, the ICON 2.5 Series Rear Shocks offer a range of features that enhance performance and reliability:
- Vehicle-specific valving and length configuration for precise fitment and optimized ride quality
- One-piece digressive piston design delivering smooth compression and rebound characteristics
- ICON’s patented internal “Bump Zone” with a 6061 billet aluminum manifold increases damping force by 20% near full compression to prevent harsh bottom outs
- Remote piggyback reservoir design improves heat dissipation, reducing shock fade during extended off-road use
- 7/8” diameter induction hardened, chrome-plated shock shaft for superior strength and corrosion resistance
- Premium grade 5WT shock oil ensures consistent damping performance across a wide temperature range
- PTFE-lined spherical bearings and application-specific mounting hardware for smooth articulation and durability
- 100% rebuildable and revalveable for long-term maintenance and tuning versatility
- Compatible with 0 to 2.5 inches of rear lift on 2019–2023 Ram 1500 models
Construction & Design:
ICON’s 2.5 Series Rear Shocks are constructed from high-grade materials engineered for durability and performance. The shock bodies are crafted from one-piece impact-extruded aluminum cylinders, providing excellent corrosion resistance and a consistent finish. The use of 6061 aircraft-grade aluminum CNC-machined components ensures precision and strength throughout the shock assembly.
The monotube design is nitrogen charged and features a piggyback reservoir that enhances heat dissipation, maintaining consistent damping under demanding conditions. The shock shaft is induction hardened and chrome plated to resist wear and extend service life. ICON’s internal bump zone technology integrates a billet aluminum manifold that adds progressive damping force to control suspension compression at high velocity, reducing harsh bottom outs and improving ride control.
Installation & Fitment:
These shocks are designed as direct replacements for the rear suspension on 2019–2023 Ram 1500 models, including Big Horn, HFE, Laramie, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, Longhorn, Rebel, Special Service, and Tradesman trims. Installation requires no major modifications and fits vehicles with up to 2.5 inches of rear lift. Mounting hardware is included and tailored for each application, ensuring a straightforward installation process for experienced enthusiasts and professional installers alike.
What's Included:
- Pair of ICON 2.5 Series Rear Shocks
- Application-specific mounting hardware
- Installation instructions
Ideal For:
The ICON 2.5 Series Rear Shocks are perfect for Ram 1500 owners who demand enhanced off-road capability without compromising on-road comfort. They are well suited for daily drivers, weekend adventurers, and off-road enthusiasts who require durable, tunable shocks that can handle lifted suspensions and aggressive terrain. These shocks also appeal to those who value long-term serviceability through rebuild and revalve options.
ICON Vehicle Dynamics builds performance suspension components for trucks and SUVs—think coilovers, shocks, lift/leveling systems, and supporting hardware engineered for hard off-road use. Their setups are designed to improve control, ride quality, and durability when you’re pushing faster over rough terrain or building a capable overland/trail rig.
ICON 2.5 Series Rear Shocks (PAIR): Ram 1500 2019-2023 (217716P)
- Unit price
- /per
What does the Available to Promise date mean?
ETA stands for Estimated Time of Arrival. The date shown is calculated using our Available-to-Promise (ATP) system, which tracks real-time supplier commitments to determine when a product is expected to be available for delivery. Specifically, the date is calculated by adding 9 business days from the date a supplier has committed to ship the product, representing a worst-case scenario for when we can expect to receive inventory.
Please note: The ETA is an estimate, not a guarantee. While we work closely with our suppliers to keep dates as accurate as possible, delays due to shipping carriers, weather, customs, or supplier-side issues may occasionally push the actual arrival beyond the date shown. Likewise, inventory may arrive sooner than the ETA in many cases. If you would like to be notified for when this item arrives, sign up for our back in stock notifications!
217716P ICON Ram 1500 2019-2023 2.5 Series Rear Shocks (PAIR). ICON 2.5 Series Rear Shocks deliver superior off-road performance and a smooth street ride for Ram 1500 models from 2019 to 2023. Engineered with vehicle-specific valving and a unique internal Bump Zone, these shocks provide 20% more damping force to prevent harsh bottom outs. Crafted from aircraft-grade aluminum with a piggyback reservoir, they offer excellent heat dissipation and durability. Perfect for Ram 1500 owners seeking enhanced control and ride quality on and off the road.
