Rancho Suspension System Component

2018–2023 Jeep Wrangler Unlimited 4-Door

RS66124BR9-1

Overview:

The Rancho Suspension System Component is engineered specifically for the 2018 to 2023 Jeep Wrangler Unlimited 4-door models, delivering enhanced off-road capability and improved ride quality. Designed to provide a suspension lift ranging from 2 to 3.5 inches, this system equips your Jeep with the ground clearance necessary for tackling rugged trails, rock crawling, and demanding terrain. Featuring the advanced Rancho RS9000®XL shocks with customizable damping control, this suspension upgrade balances on-road comfort with off-road performance, making it ideal for Jeep enthusiasts who demand versatility and durability.

Whether you’re upgrading your Jeep for weekend trail adventures or daily driving with added capability, this suspension system offers a premium solution that maintains factory electronic stability system compatibility and supports larger tires up to 35 inches.

Key Features:

This Rancho suspension system combines innovative technology and rugged construction to enhance your Jeep Wrangler Unlimited’s performance and handling:

• Rancho RS9000®XL shocks with nine-position adjustable damping knob for tailored firmness and control
• Dynamic Rebound Spring (DRS) technology for improved shock response and additional control
• 2 to 3.5 inches of lift to accommodate up to 35-inch tires (tire size may vary by manufacturer)
• Front and rear corner-specific progressive rate coil springs to maintain level stance under heavy loads
• High-strength, low-alloy steel brackets for enhanced durability and long service life
• Compatibility with Jeep factory electronic stability system and original equipment wheels and tires
• Includes extended sway bar end links and e-brake line relocation bracket for proper geometry and function
• Designed for 17-inch wheels with 4.5-inch backspacing to optimize fitment and clearance
• Optional geometry correction bracket and adjustable control arms available for further suspension tuning

Construction & Design:

The Rancho Suspension System Component is built with rugged, high-quality materials engineered to withstand the harsh conditions of off-road driving. The coil springs are progressive rate and corner-specific, ensuring a balanced and stable ride even when carrying heavy loads or navigating uneven terrain. Brackets and hardware are fabricated from high-strength, low-alloy steel, providing exceptional durability and resistance to wear and corrosion.

The RS9000®XL shocks feature a robust design with a nine-position damping adjustment knob, allowing drivers to fine-tune shock firmness for a smooth on-road ride or a more controlled off-road experience. The inclusion of Dynamic Rebound Spring technology further enhances shock performance by improving rebound control and stability.

Installation & Fitment:

This suspension system is designed for bolt-on installation, making it a straightforward upgrade for Jeep Wrangler Unlimited owners. It complies with NHTSA FMVSS126 standards, ensuring safety and reliability. The kit fits 2018 through 2023 Jeep Wrangler Unlimited 4-door models, excluding diesel engines. Non-Rubicon models will achieve a slightly taller lift height compared to Rubicon variants due to factory suspension differences.

Note that this product is Box 1 of 2 for the master suspension lift kit (RS66124BR9). To complete the full suspension upgrade, both RS66124BR9-1 and RS66124BR9-2 must be ordered together.

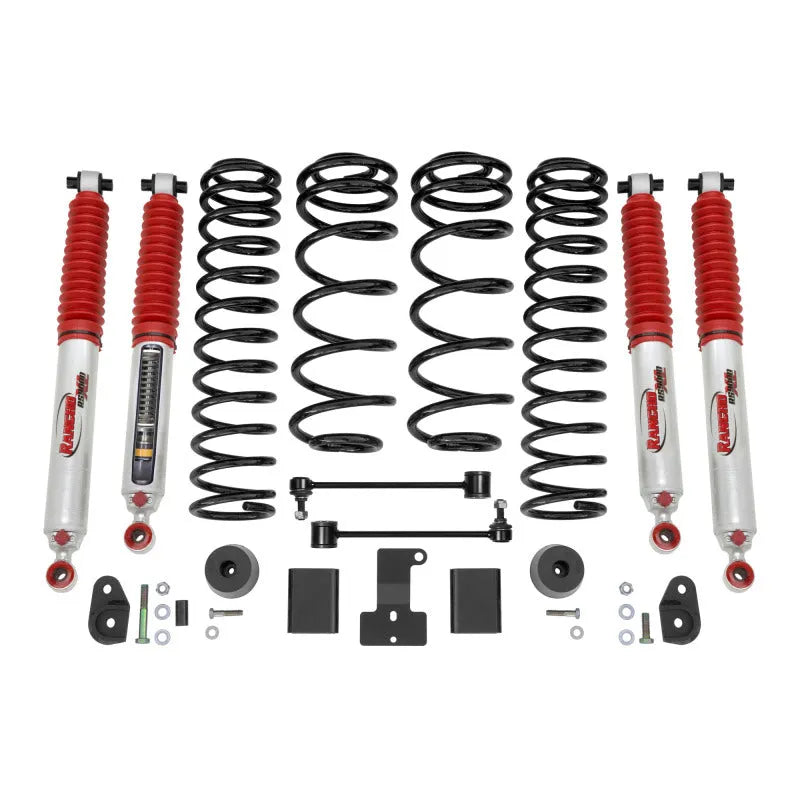

What's Included:

• Four Rancho RS9000®XL adjustable shocks (front and rear)

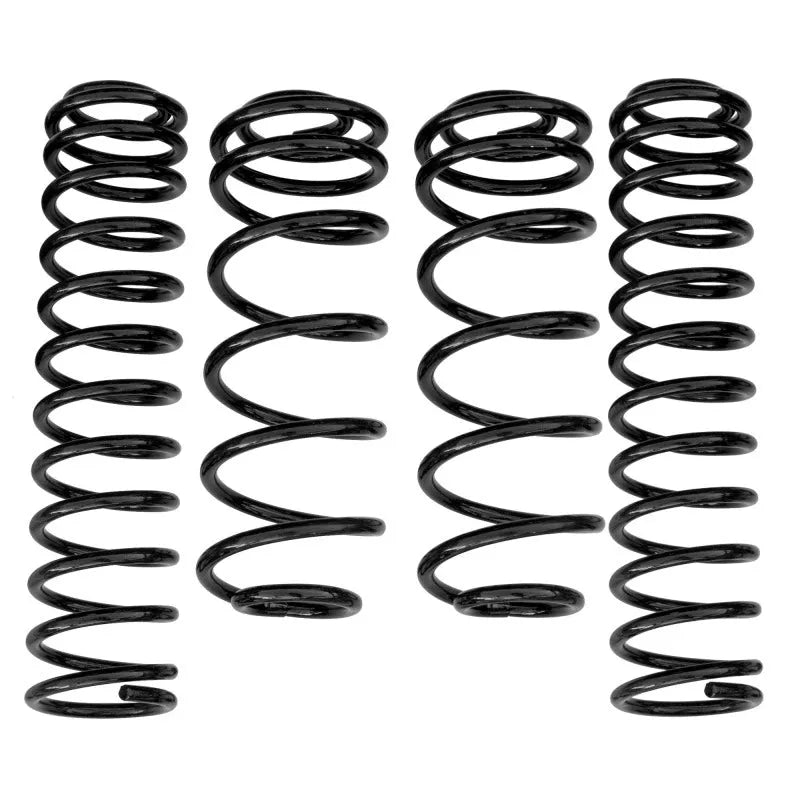

• Front and rear corner-specific progressive rate coil springs
• Bump stops for enhanced suspension travel control
• Front and rear extended sway bar end links
• E-brake line relocation bracket
• All necessary hardware for installation

Ideal For:

This Rancho suspension system is perfect for Jeep Wrangler Unlimited owners seeking a reliable, high-performance suspension upgrade that enhances off-road capability without sacrificing on-road comfort. It is especially suited for enthusiasts who want to run larger tires, improve ground clearance, and maintain factory electronic stability system functionality. Whether you’re a trail rider, rock crawler, or daily driver, this suspension component delivers a balanced and customizable ride experience.

Rancho is a performance suspension and shock brand for trucks, SUVs, and Jeeps, offering shocks/struts, steering stabilizers, leveling kits, and lift systems built for trail and daily use. Their products are aimed at improving control and stability on rough terrain while maintaining everyday drivability—ideal for rigs that tow, haul, and still see dirt on the weekends.
