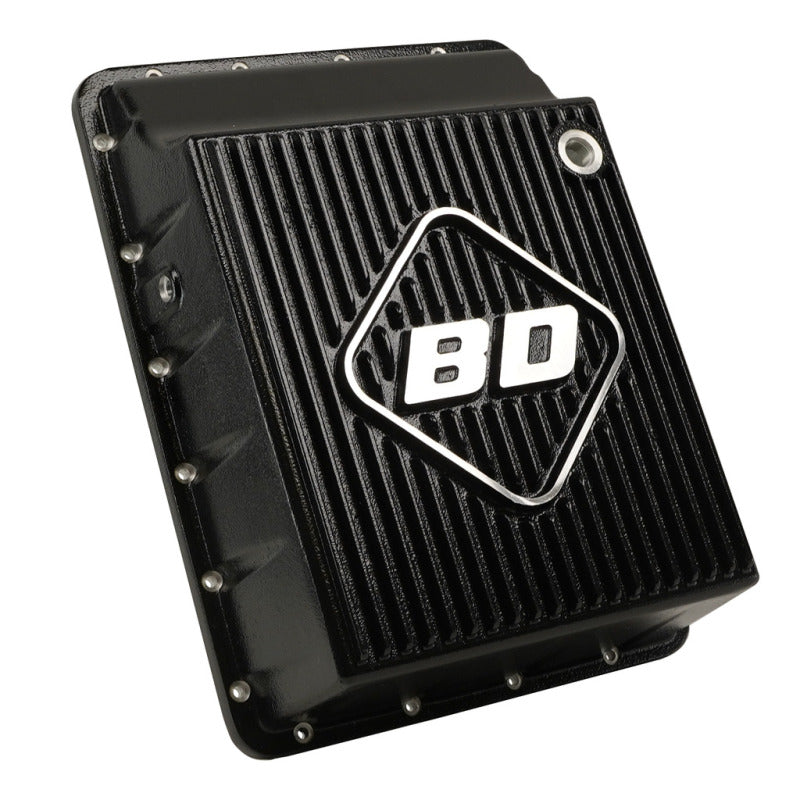

BD Diesel AISIN AS69RC Deep Sump Transmission Pan

2013–2024 Ram 3500 6.7L Diesel

Part #: 1061535

Overview

The BD Diesel AISIN AS69RC Deep Sump Transmission Pan is engineered to enhance the durability and cooling efficiency of your Ram 3500’s transmission system. Designed specifically for 2013 to 2024 Ram 3500 trucks equipped with the 6.7L diesel engine, this deep sump pan increases the transmission fluid capacity, which is critical for maintaining optimal operating temperatures and extending transmission life. Ideal for diesel truck owners who demand reliability and improved performance under heavy-duty conditions, this transmission pan offers a practical upgrade to the factory component.

By increasing the volume of cool oil circulating through the transmission, BD Diesel’s pan helps reduce heat buildup, a common cause of premature transmission wear and failure. Its robust construction also adds structural rigidity to the transmission case, preventing twisting and potential damage during demanding use.

Key Features

This transmission pan combines thoughtful engineering with durable materials to deliver lasting benefits:

• Increased oil capacity for enhanced cooling and longer transmission life
• Precision-machined aluminum construction for superior strength and heat dissipation
• Integrated heat-dissipating fins to reduce transmission fluid temperature
• Improved pan rigidity to prevent transmission case twisting under load
• Magnetic drain plug to capture metal particles and protect transmission internals

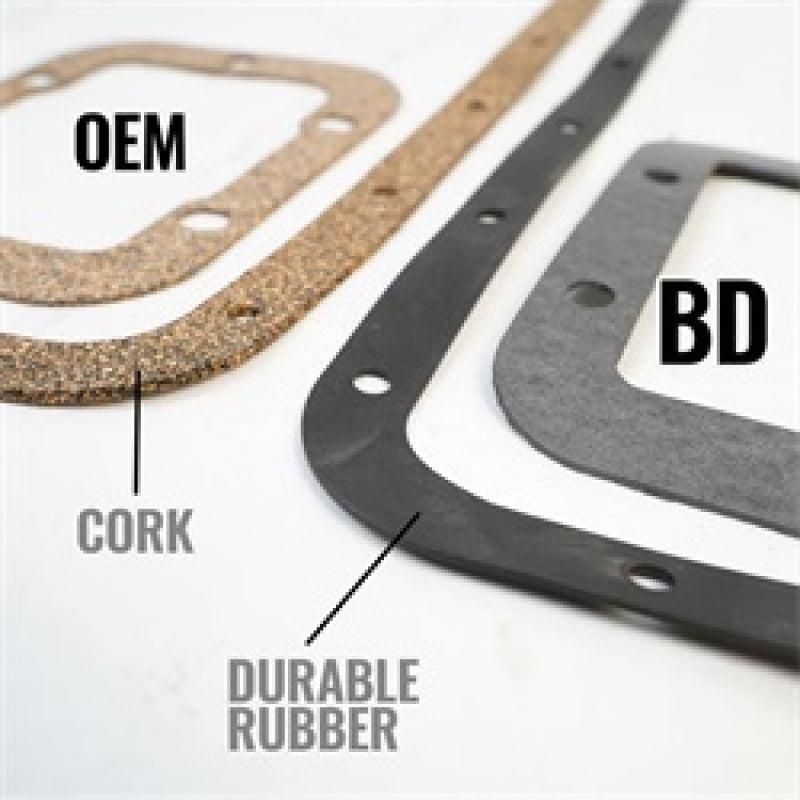

• OEM-style gasket ensures a reliable, leak-free seal
• Temperature sending unit port for easy monitoring of transmission fluid temperature
• Complete hardware kit included for straightforward installation

Construction & Design

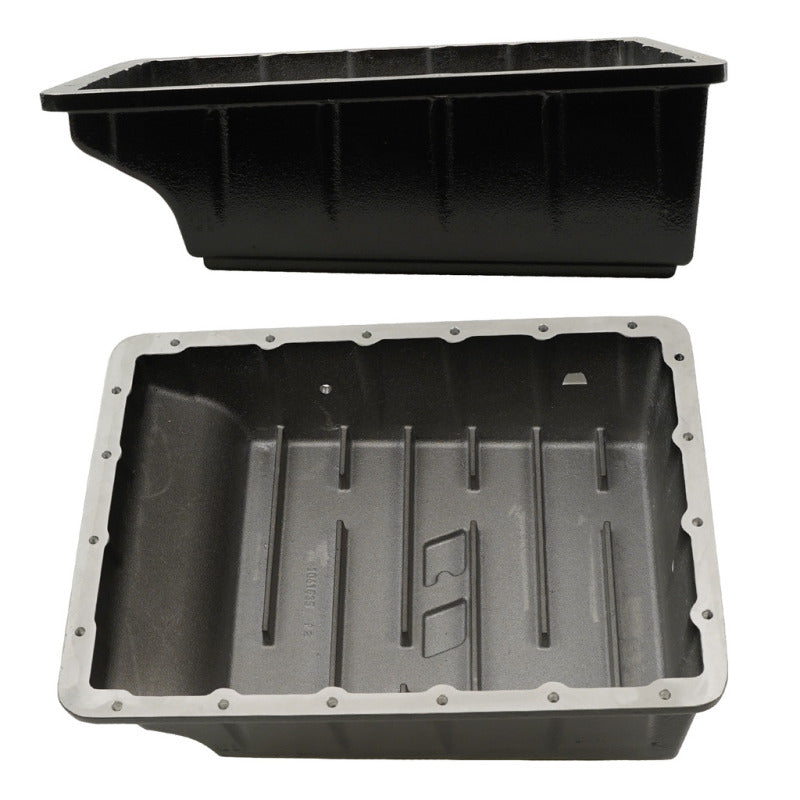

Crafted from high-quality aluminum, the BD Diesel deep sump transmission pan is designed to withstand the rigors of heavy-duty use while efficiently dissipating heat. The aluminum material not only reduces weight compared to steel but also offers excellent thermal conductivity, helping to keep transmission fluid temperatures in check. The pan’s deep sump design increases fluid volume, which improves cooling capacity and fluid longevity.

Heat-dissipating fins are strategically integrated into the pan’s exterior surface to maximize surface area and promote heat transfer away from the transmission. Additionally, the pan’s reinforced structure adds rigidity to the transmission case, reducing the risk of distortion or damage during off-road or towing applications.

Installation & Fitment

The BD Diesel AISIN AS69RC Deep Sump Transmission Pan is a direct-fit replacement for the factory pan on 2013–2024 Ram 3500 trucks with the 6.7L diesel engine. Installation requires no modifications and can be completed with basic hand tools. The kit includes all necessary hardware, including screws, plugs, and an OEM-style gasket, ensuring a secure and leak-free fit. The magnetic drain plug simplifies fluid changes and helps maintain transmission health by capturing metal debris.

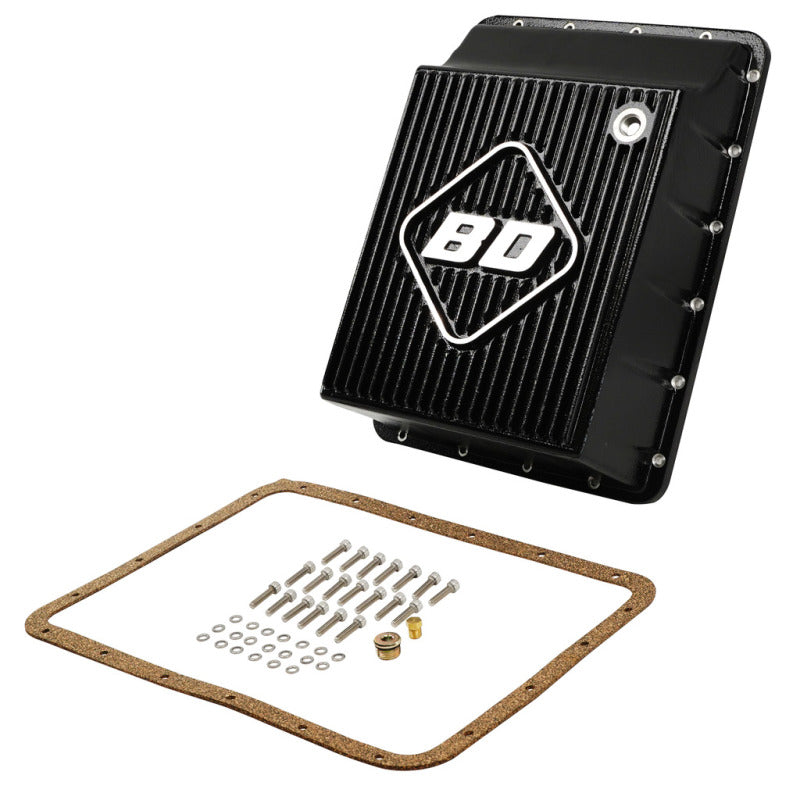

What's Included

• BD Diesel AISIN AS69RC Deep Sump Transmission Pan
• OEM-style gasket
• Magnetic drain plug
• Temperature sending unit port
• Mounting screws and plugs

Ideal For

This transmission pan is perfect for Ram 3500 owners who frequently tow heavy loads, drive in demanding conditions, or simply want to extend the life of their transmission. It is especially beneficial for diesel truck enthusiasts seeking improved transmission cooling and durability without complicated modifications. Whether used for daily driving, hauling, or off-road adventures, this pan provides peace of mind and enhanced transmission protection.
