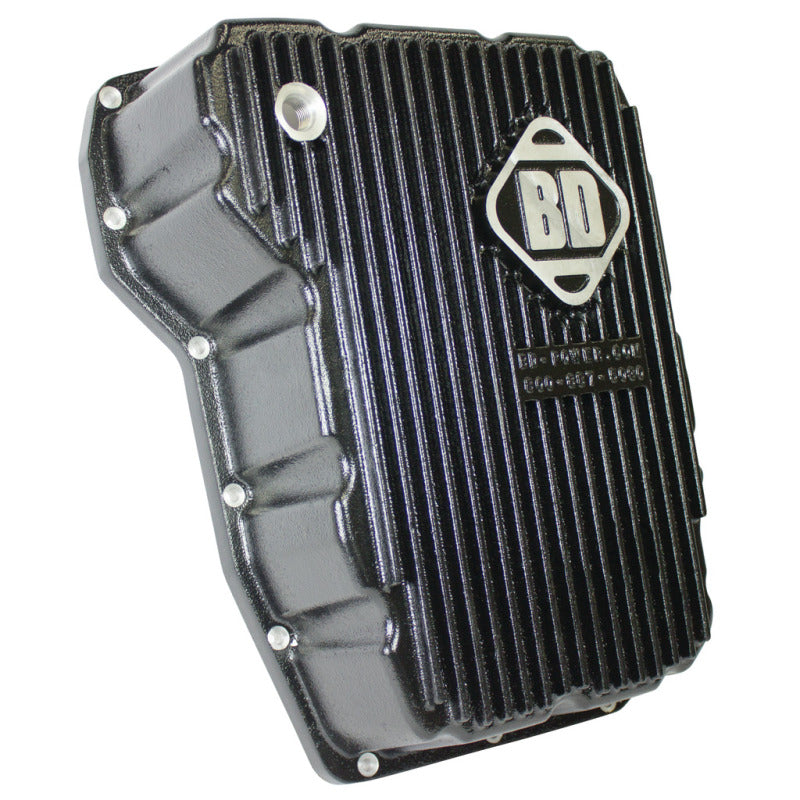

BD Diesel Deep Sump Transmission Pan

2002–2024 Dodge/Ram 1500, 2500, 3500 5.7L Hemi, 6.4L 392, 6.7L Diesel

Part #: 1061525

Overview

The BD Diesel Deep Sump Transmission Pan is engineered to enhance the durability and performance of your Dodge or Ram truck’s transmission system. Designed specifically for 2002 through 2024 models equipped with 5.7L Hemi, 6.4L 392 Hemi, and 6.7L Diesel engines, this transmission pan increases oil capacity to promote cooler operating temperatures and extend transmission life. Ideal for truck owners who demand reliability under heavy-duty conditions, this pan offers improved cooling, added strength, and easy installation.

By increasing the volume of transmission fluid, the BD Diesel pan helps maintain optimal lubrication and temperature control, reducing wear and preventing overheating during towing, hauling, or daily driving. Its robust construction also enhances the structural integrity of the transmission case, minimizing twisting and potential damage.

Key Features

BD Diesel’s Deep Sump Transmission Pan delivers several key benefits that improve transmission longevity and performance:

• Increased oil capacity for enhanced cooling and lubrication
• Durable aluminum construction for lightweight strength
• Heat-dissipating fins to reduce transmission fluid temperature
• Improved pan rigidity to prevent transmission case twisting
• Includes magnetic drain plug to capture metal debris
• OEM-style gasket for reliable, leak-free sealing
• Temperature sending unit port for easy monitoring
• Complete hardware kit with screws and plugs for straightforward installation

Construction & Design

The BD Diesel Deep Sump Trans Pan is crafted from high-quality aluminum, chosen for its excellent heat dissipation and corrosion resistance. The pan’s design incorporates precision-engineered cooling fins that increase surface area, allowing heat to escape more efficiently and keeping transmission fluid temperatures lower under demanding conditions. This helps maintain consistent transmission performance and reduces the risk of overheating.

Additionally, the pan’s reinforced structure adds rigidity to the transmission case, preventing flex and twisting that can lead to premature wear or damage. The magnetic drain plug is strategically placed to attract and hold metallic particles, helping to keep the transmission fluid cleaner and prolong component life.

Installation & Fitment

Installation of the BD Diesel Deep Sump Transmission Pan is straightforward and designed to fit perfectly on select Dodge and Ram trucks from 2002 to 2024. The kit includes all necessary hardware, including screws, plugs, and an OEM-style gasket, ensuring a secure and leak-free fit. The pan also features a temperature sending unit port, allowing easy integration with existing monitoring systems.

No modifications to the transmission or vehicle are required, making this an ideal upgrade for both professional mechanics and experienced DIY enthusiasts. Proper torque specifications should be followed to ensure optimal sealing and performance.

What's Included

• BD Diesel Deep Sump Transmission Pan
• OEM-style gasket
• Magnetic drain plug
• Temperature sending unit port
• Complete set of screws and plugs

Ideal For

This transmission pan is perfect for Dodge and Ram truck owners who operate their vehicles under heavy loads, tow frequently, or drive in demanding conditions where transmission cooling and durability are critical. It is especially beneficial for those with 5.7L Hemi, 6.4L 392 Hemi, and 6.7L Diesel engines seeking to extend transmission life and improve reliability.
