Belltech Performance Handling Kit
2019–2024 Ram 1500 (Big Horn, HFE, Laramie, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, Longhorn, Rebel, Special Service, Tradesman)
1062HK
Overview:
The Belltech Performance Handling Kit is engineered specifically for 2019 to 2024 Ram 1500 models, delivering a perfect balance of lowered stance, improved handling, and preserved ride quality. Designed for Ram owners seeking enhanced vehicle dynamics and a more aggressive appearance, this kit lowers the front by 3 to 4 inches and the rear by 4 to 5 inches. Beyond aesthetics, it significantly lowers the center of gravity, resulting in better cornering stability and a more confident driving experience.
Whether you drive a 2WD or 4WD Ram 1500, this comprehensive kit combines precision-engineered components with easy installation hardware and alignment pieces, making it an ideal upgrade for enthusiasts who demand both performance and comfort.
Key Features:
Belltech’s Performance Handling Kit offers a range of advanced features designed to enhance your Ram 1500’s suspension and handling characteristics:
- Customizable front lowering options of -3" or -4" and rear lowering options of -4" or -5"
- 1-3/8" diameter solid front sway bar and 13/16" diameter hollow rear sway bar for improved roll control
- Large bodied preset Street Performance dampers: 2.4" (60mm) front and 2.2" (55mm) rear
- Cold-formed steel springs engineered for durability and consistent lowering
- Robust drop spindles designed to maintain proper suspension geometry
- Adjustable length heim joint end links for precise sway bar tuning
- Steel, powder-coated spring spacers for corrosion resistance and longevity
- 35mm independent rebound and compression valves in shocks for balanced ride quality
- Preserves original equipment ride quality while enhancing handling performance
Construction & Design:
Every component in the Belltech Performance Handling Kit is crafted with durability and performance in mind. The springs are cold-formed steel, providing consistent lowering without sacrificing strength. The sway bars feature a solid front bar and a hollow rear bar, both designed to reduce body roll and improve cornering precision. The large-bodied preset dampers incorporate advanced valving technology with independent rebound and compression valves to deliver a smooth yet controlled ride.
Drop spindles are engineered to maintain proper suspension geometry after lowering, ensuring safe handling and tire wear. All steel components are powder-coated to resist corrosion and extend the life of the kit under various driving conditions.
Installation & Fitment:
The Belltech Performance Handling Kit is designed for straightforward installation on 2019–2024 Ram 1500 models, including Big Horn, HFE, Laramie, Laramie Longhorn (2019–2021), Limited, Limited Longhorn (2021–2024), Lone Star, Longhorn (2021), Rebel, Special Service (2020–2022), and Tradesman trims. It fits both 2WD and 4WD configurations.
The kit ships in five boxes and includes all necessary hardware and alignment components to achieve the desired lowering heights. Installation requires standard suspension tools and alignment after assembly to ensure optimal performance and safety.

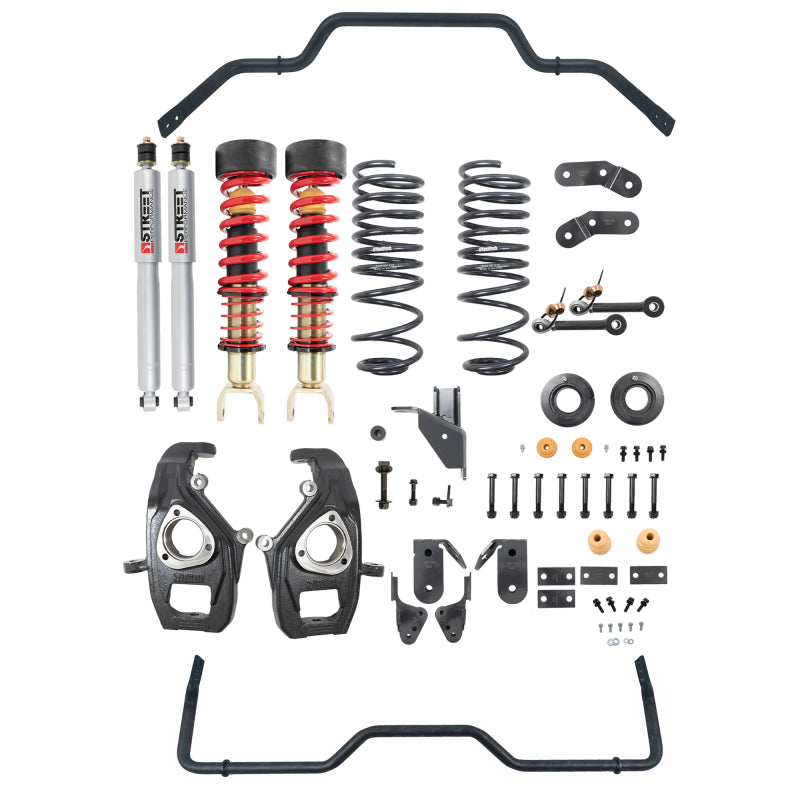

What's Included:
- Front lowering components for -3" or -4" drop
- Rear lowering components for -4" or -5" drop

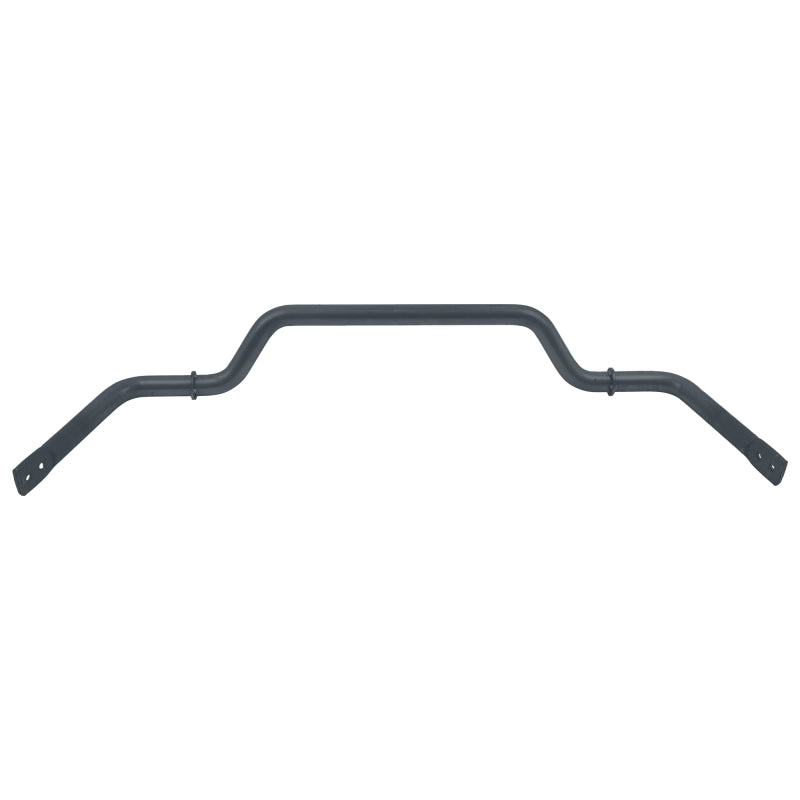

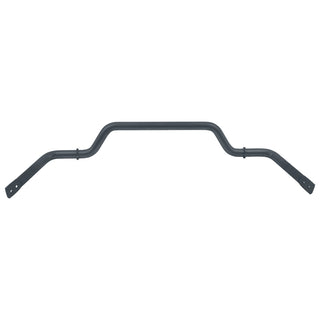

- 1-3/8" diameter solid front sway bar
- 13/16" diameter hollow rear sway bar

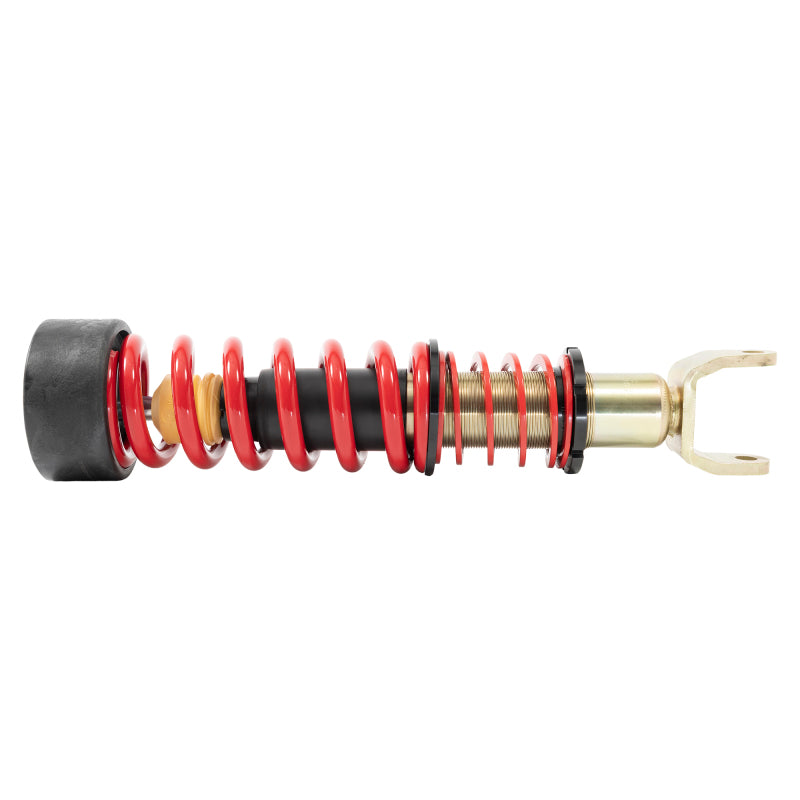

- Large bodied 2.4" (60mm) preset front Street Performance dampers
- Large bodied 2.2" (55mm) preset rear Street Performance shocks
- Cold-formed steel springs with powder-coated spring spacers
- Adjustable length heim joint end links

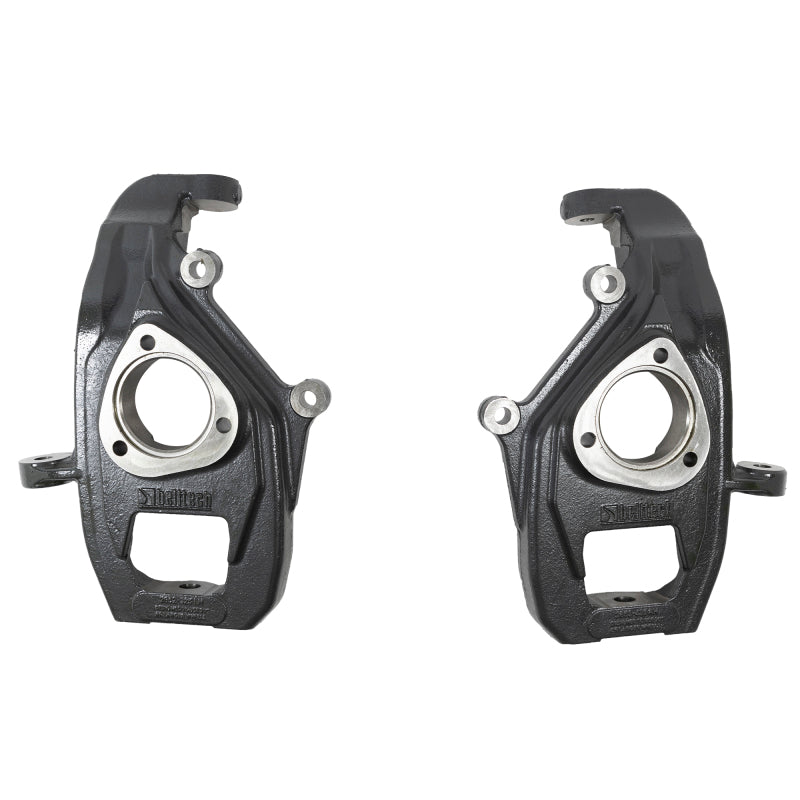

- Robust drop spindles
- All necessary installation hardware and alignment components
Ideal For:
This kit is ideal for Ram 1500 owners who want to improve their truck’s stance and handling without compromising ride comfort. It suits enthusiasts who use their trucks for daily driving, light towing, or spirited driving on highways and backroads. The Belltech Performance Handling Kit is perfect for those seeking a reliable, high-quality suspension upgrade that enhances both aesthetics and driving dynamics.
