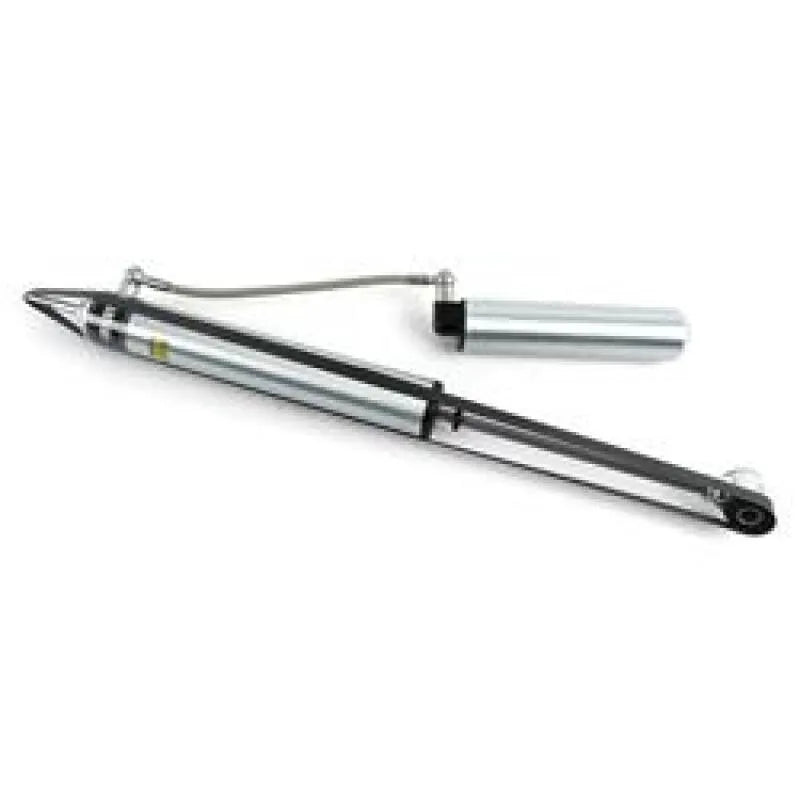

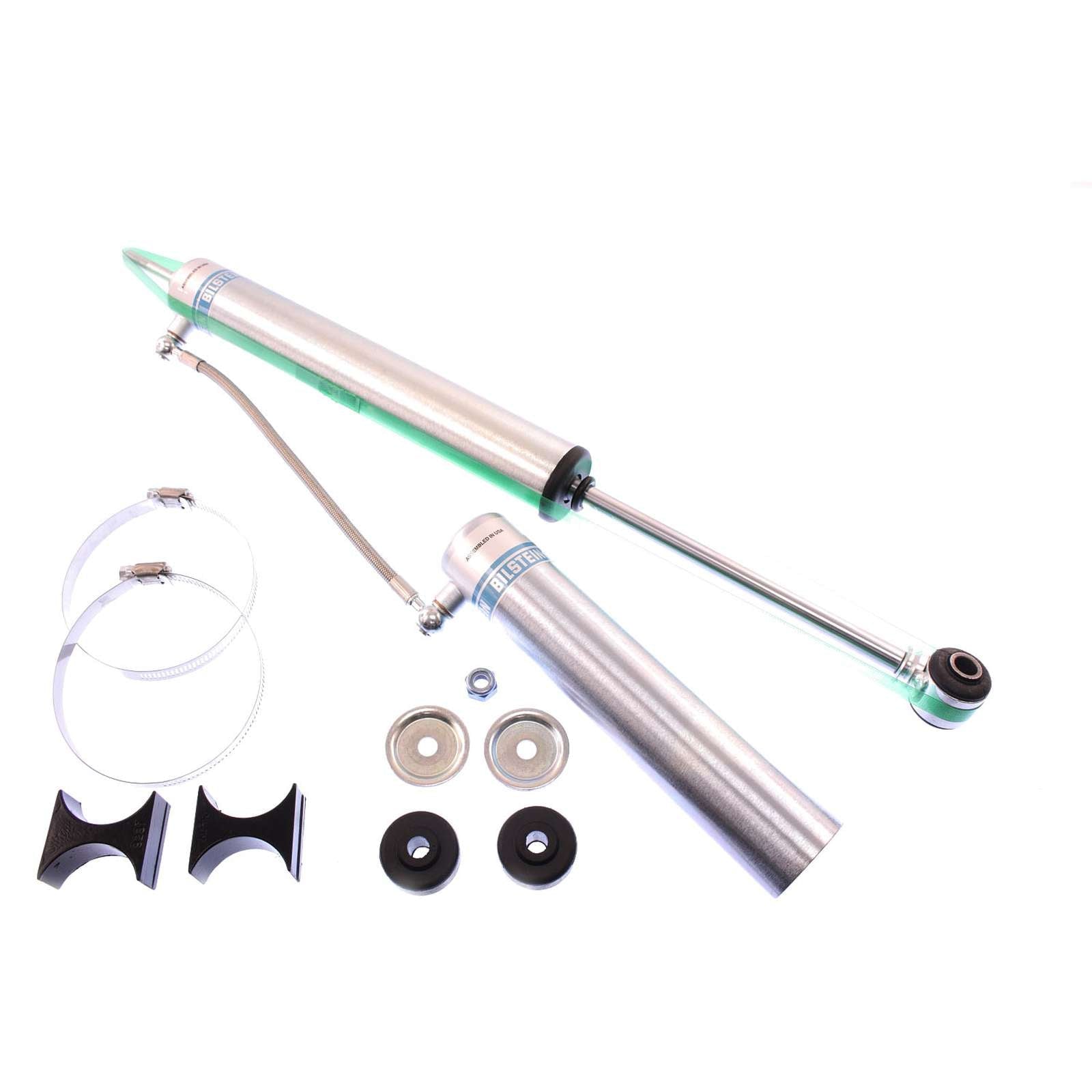

Bilstein B8 5160 Front Shock (w/ Reservoir) w/ 1.5-3" Front Lift

07-18 Jeep Wrangler JK

25-311969

*PURCHASE QUANTITY 2 FOR BOTH SIDES

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Collapsed Length (in) :14.53

Extended Length (in) :24.85

Collapsed Length (mm) :369.0

Extended Length (mm) :631.2

Finish :Zinc Plated

Reservoir :Yes

Body Design :Smooth Body (Non-Coilover)

Body Diameter (id) :46mm

Replacement Mounting Kit :B4-KT1-Z097A00

Spring Seat Included :No

Billet Reservoir Clamp Included :Yes

Adjustable Damping :Non-Adjustable

Quantity per Vehicle :2

UPC :00651860914213

Warranty :Limited 2-Year Warranty

Position :Front
