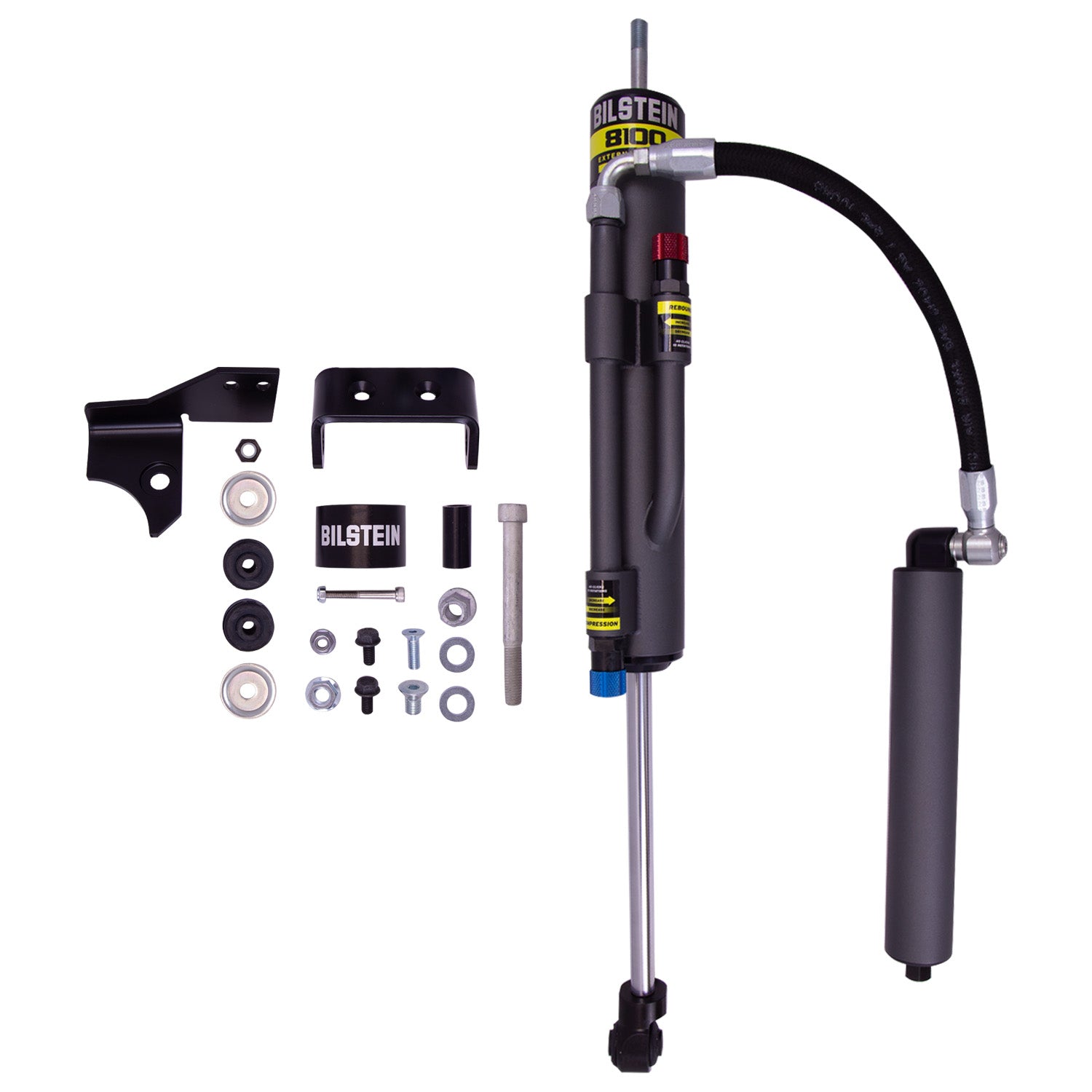

Bilstein B8 8100 Front Right Shock (Bypass): Jeep Wrangler JK 2007 - 2018 (w/ 3.5-5" Front Lift)

Bilstein B8 8100 Front Right Shock (Bypass) w/ 3.5-5" Front Lift

07-18 Jeep Wrangler JK

25-291292

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

Collapsed Length (in) :17.20

Extended Length (in) :27.03

Collapsed Length (mm) :437.0

Extended Length (mm) :686.6

Finish :EVO Grey

Reservoir :Yes

Body Design :Bypass Body (Non-Coilover)

Body Diameter (id) :60mm

Replacement Mounting Kit :B4-KT1-Z103A00

Spring Seat Included :No

Adjustable Damping :Double Adjustable Compression and Rebound with Click Adjuster Knobs

Quantity per Vehicle :1

UPC :00651860899244

Warranty :Limited 2-Year Warranty

Position :Front Right
