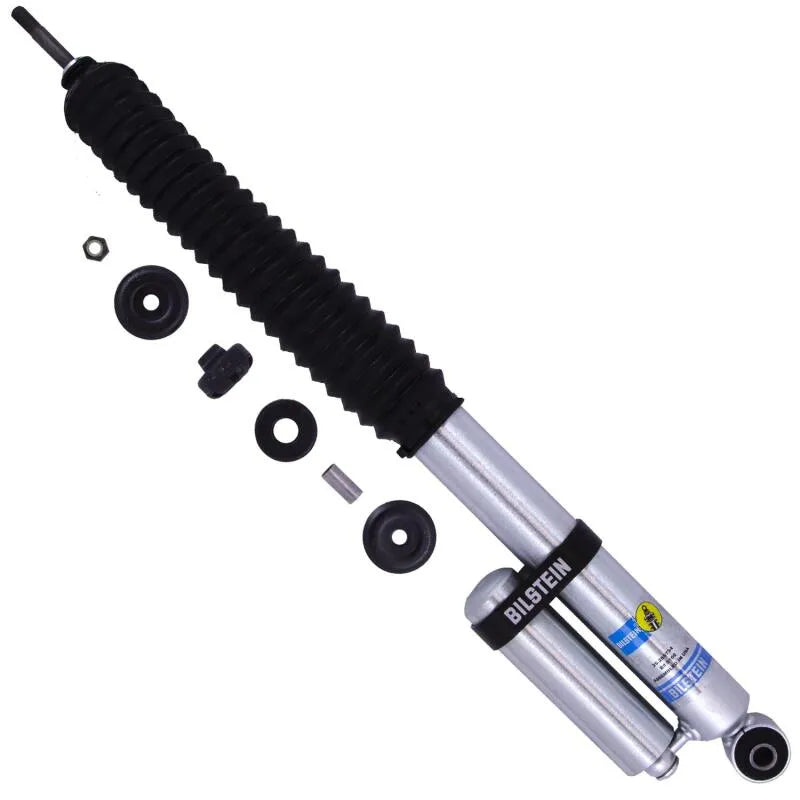

Bilstein B8 5160 Front Shock (w/ Reservoir) w/ 6" Front Lift

14-24 Ram 2500

13-24 Ram 3500

25-331936

*PURCHASE QUANTITY 2 FOR BOTH SIDES

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Collapsed Length (in) : 16.96

Extended Length (in) : 26.74

Collapsed Length (mm) : 430.9

Extended Length (mm) : 679.2

Finish : Zinc Plated

Reservoir : Yes

Body Design : Smooth Body (Non-Coilover)

Body Diameter (id) : 46mm

Replacement Mounting Kit : B4-KT1-Z270A01

Spring Seat Included : No

Billet Reservoir Clamp Included : Yes

Adjustable Damping : Non-Adjustable

Quantity per Vehicle : 2

UPC : 00651860935898

Warranty : Limited 2-Year Warranty

Position : Front
