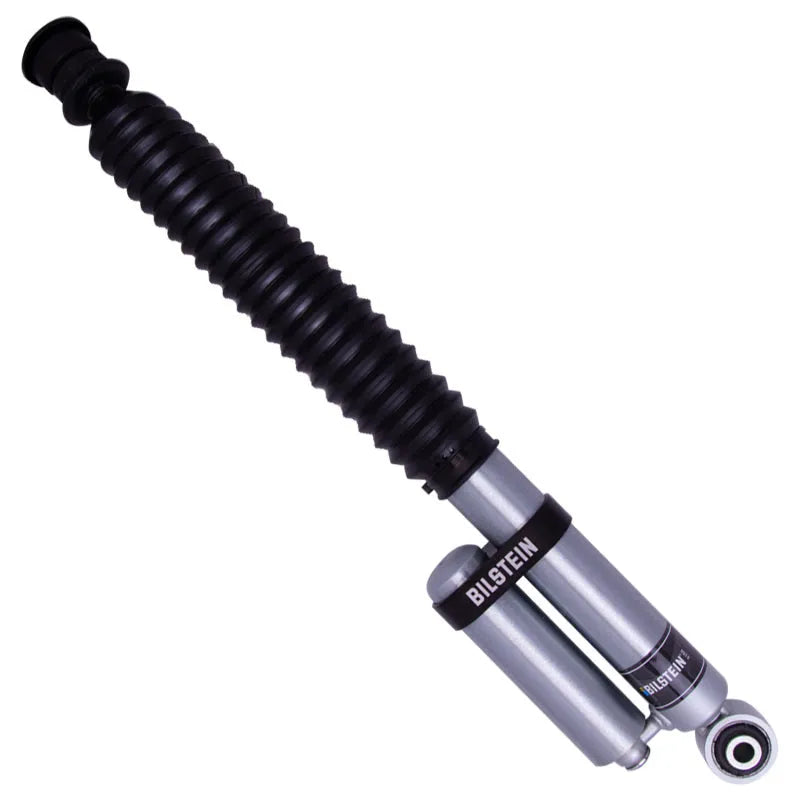

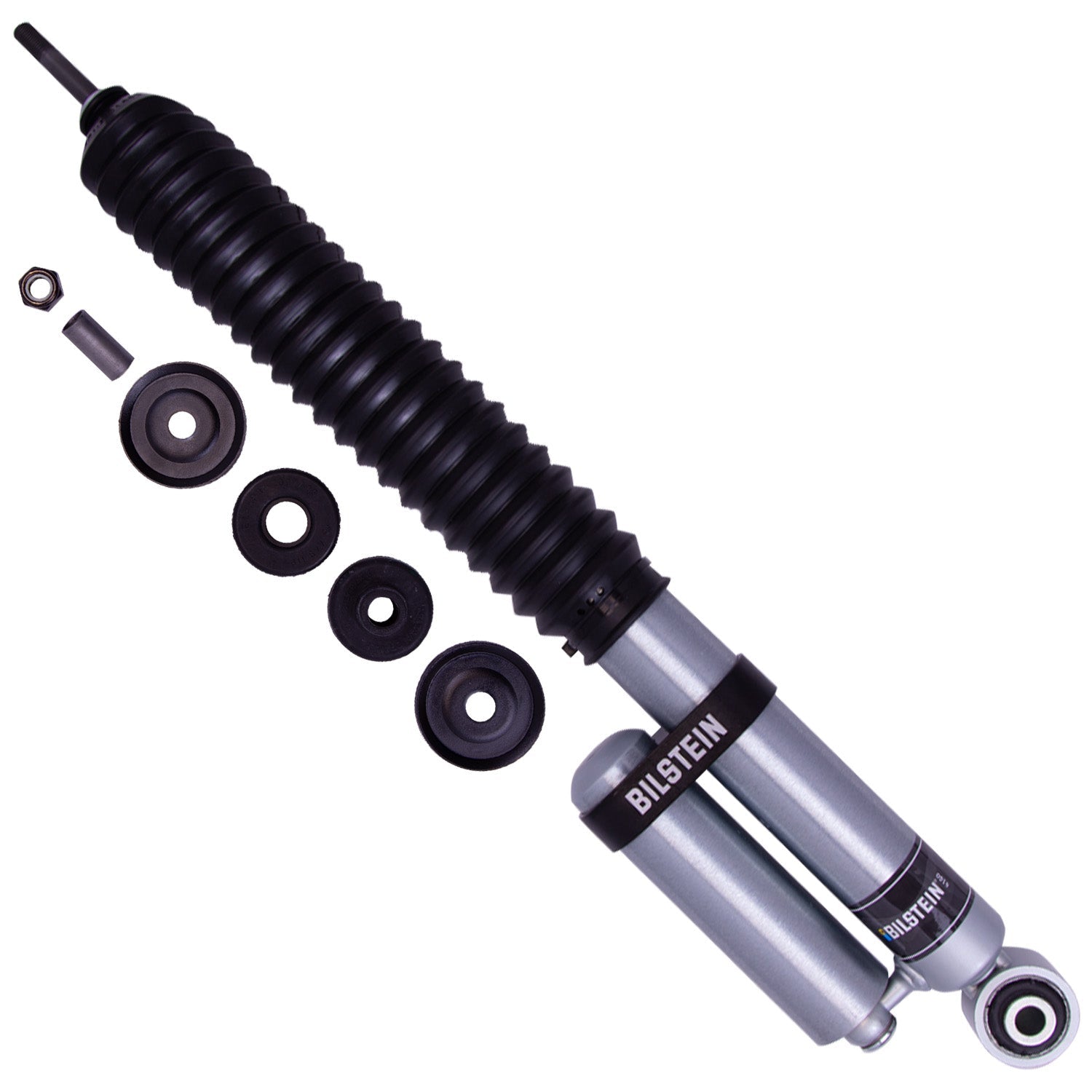

Bilstein B8 5160 Rear Left Shock w/ Reservoir, 0-2" Rear Lift w/ OUT Air Leveling Suspension

19-24 Ram 1500 4WD

25-325102

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Collapsed Length (in) : 15.69

Extended Length (in) : 25.75

Collapsed Length (mm) : 398.5

Extended Length (mm) : 654.0

Finish : Zinc Plated

Reservoir : Yes

Body Design : Smooth Body (Non-Coilover)

Body Diameter (id) : 46mm

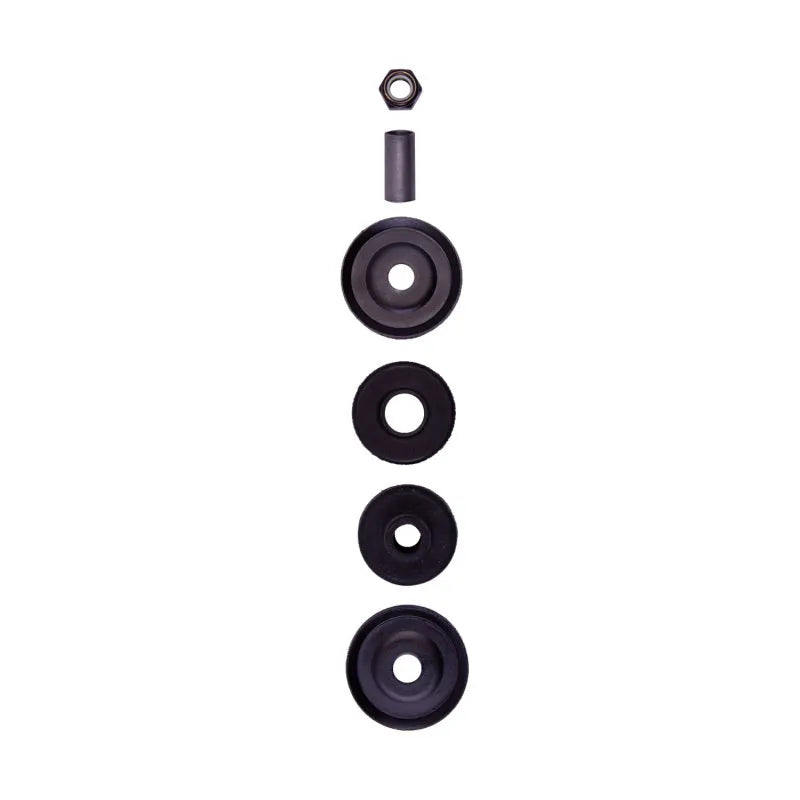

Replacement Mounting Kit : B4-KT1-Z223A01

Spring Seat Included : No

Billet Reservoir Clamp Included : Yes

Adjustable Damping : Non-Adjustable

Quantity per Vehicle : 1

UPC : 00651860894140

Warranty : Limited 2-Year Warranty

Position : Rear Left
