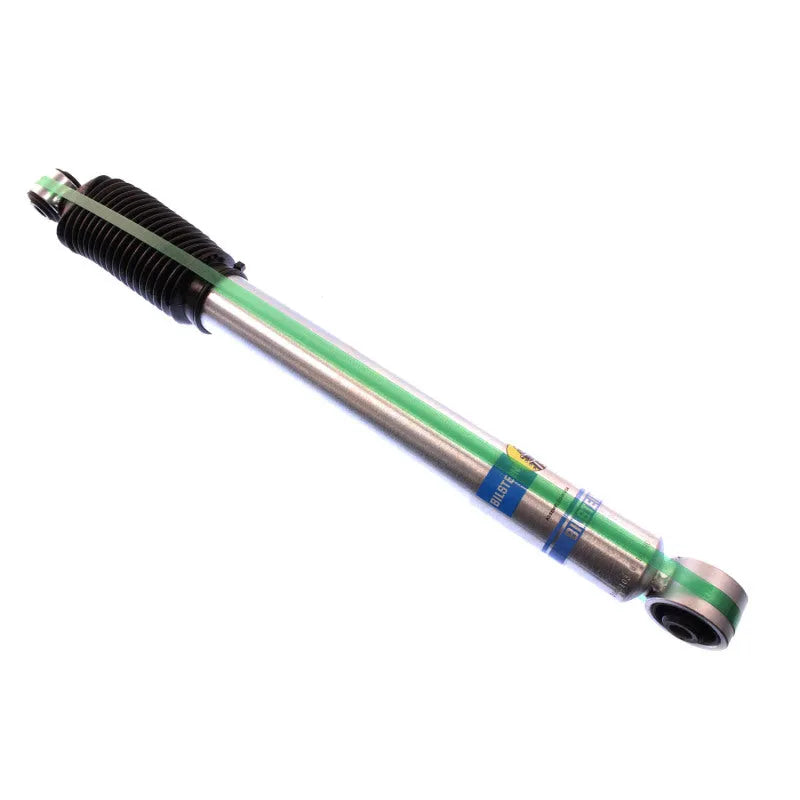

Bilstein B8 5100 Rear Shock w/ 2-4" Rear Lift

06-08 Dodge Ram 1500 4WD

94-13 Dodge Ram 2500 4WD

94-12 Dodge Ram 3500 4WD

24-186636

*PURCHASE QUANTITY 2 FOR BOTH SIDES

*Without ZX3 Electronic Suspension Package; Without Quadrasteer; With Independent Front Suspension

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Collapsed Length (in) : 18.17

Extended Length (in) : 29.92

Collapsed Length (mm) : 461.5

Extended Length (mm) : 760.0

Finish : Zinc Plated

Reservoir : No

Body Design : Smooth Body (Non-Coilover)

Body Diameter (id) : 46mm

Spring Seat Included : No

Adjustable Damping : Non-Adjustable

Quantity per Vehicle : 2

UPC : 00651860482033

Warranty : Limited Lifetime Warranty

Position : Rear
