Brian Tooley Racing Trinity Intake Manifold

2002–2026 Chrysler, Dodge, Jeep & Ram 5.7L/6.1L/6.4L Gen III HEMI Engines

Part #: TRA-HEMI-ML

Overview

The Brian Tooley Racing Trinity Intake Manifold is a premium performance upgrade designed specifically for Gen III HEMI engines ranging from 5.7L to 6.4L. Crafted for enthusiasts seeking enhanced airflow and power gains, this mid-runner, single injector manifold delivers optimized performance across a broad RPM range. Whether you drive a Chrysler 300, Dodge Charger, Jeep Grand Cherokee, or Ram truck equipped with a HEMI engine, the Trinity manifold offers a direct-fit solution engineered to maximize throttle response and horsepower.

Developed and manufactured in the USA, the Trinity series combines advanced engineering with durable materials to provide a reliable, high-flow intake manifold that supports both naturally aspirated and boosted applications. Its design is ideal for street performance, track use, or any build requiring improved mid-range power and efficiency.

Key Features

The Brian Tooley Racing Trinity Intake Manifold incorporates cutting-edge features to ensure superior performance and ease of installation:

• Constructed from high-quality cast aluminum for strength and heat resistance
• Mid-length runners averaging 6.5 inches, optimized for 4500–7400 RPM powerband
• Single injector configuration with high-flow -12AN fuel rails and bracketless mounting
• O-ring sealing between runners, plenum, and cylinder heads for a leak-free, mess-free installation
• Downward-tilted 102mm plenum opening designed for maximum airflow with all HEMI throttle bodies
• Compatible with factory 80mm throttle bodies via included billet adapter and supports aftermarket 92mm+ throttle bodies
• Integrated oil fill port with billet -12 ORB fill cap and positive crankcase ventilation (PVC) -12 ORB port
• Extra-rigid design engineered to handle high boost pressures for forced induction setups
• Fits a wide range of 2002–2026 Chrysler, Dodge, Jeep, and Ram vehicles equipped with 5.7L, 6.1L, and 6.4L HEMI engines

Construction & Design

The Trinity Intake Manifold is precision cast and machined in the USA from premium aluminum, ensuring exceptional durability and thermal management. Its robust construction supports high boost levels without compromising structural integrity. The manifold features CNC-profiled runner entries and exits to optimize airflow dynamics, reducing turbulence and increasing volumetric efficiency. The O-ring sealing system between the runners, plenum, and cylinder heads provides a reliable, leak-proof seal that simplifies maintenance and serviceability.

The plenum’s downward-tilted 102mm opening is engineered to maximize throttle body airflow, accommodating both factory and larger aftermarket throttle bodies. Additionally, the manifold integrates an oil fill port and positive crankcase ventilation ports with billet fittings, enhancing engine bay cleanliness and functionality.

Installation & Fitment

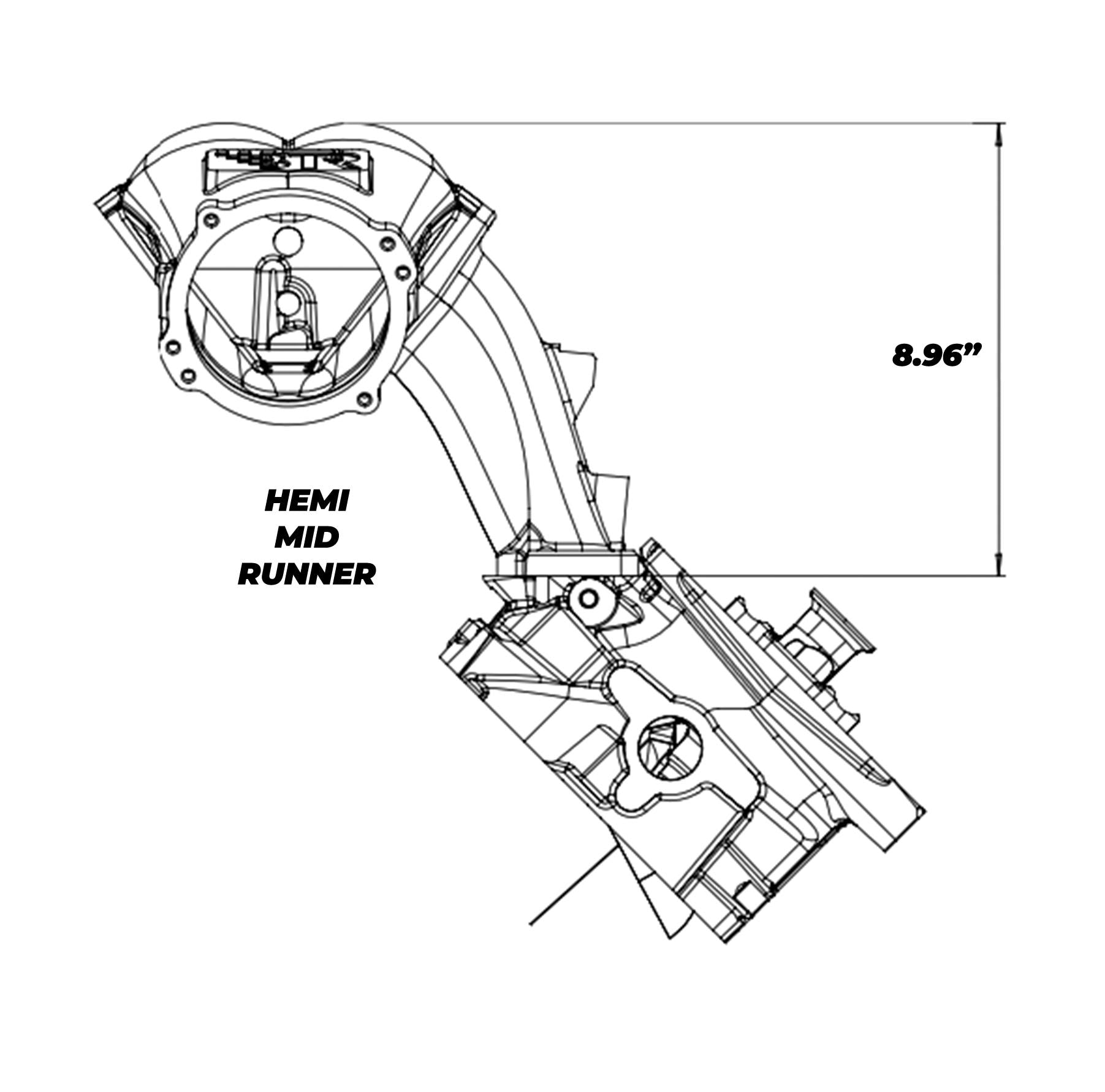

The Brian Tooley Racing Trinity Intake Manifold is designed for direct fitment on a broad range of Gen III HEMI engines, including 5.7L, 6.1L, and 6.4L variants found in Chrysler, Dodge, Jeep, and Ram models from 2002 through 2026. It fits under most factory hoods, though checking dimensions is recommended for vehicles with aftermarket hoods or altered engine placements.

Installation is straightforward for experienced enthusiasts and professional shops alike. For pre-Eagle 2003–2008 truck engines, customer-sourced head adapters are required to match intake ports. The manifold supports both standard and inverted throttle body mounting orientations, providing flexibility for various build configurations.

What's Included

• Brian Tooley Racing Trinity Mid Runner Intake Manifold (Natural Finish)
• Billet adapter for factory 80mm HEMI throttle bodies
• High-flow -12AN single injector fuel rails with bracketless mounting (FRK-10-12)
• Billet -12 ORB oil fill cap
• Positive crankcase ventilation (PVC) -12 ORB port fittings

Ideal For

This intake manifold is ideal for performance enthusiasts and professional builders seeking to enhance airflow and power output on Gen III HEMI engines. It suits naturally aspirated builds targeting mid-to-high RPM power, as well as boosted applications requiring a durable manifold capable of handling increased boost pressures. Perfect for street, strip, and track vehicles, the Trinity manifold supports a wide range of Chrysler, Dodge, Jeep, and Ram models equipped with 5.7L, 6.1L, and 6.4L HEMI engines.
