COMP Cams Stage 3 HRT 224/234 Max Power Hydraulic Roller CAM KIT: 5.7L Hemi / 6.4L 392 2009 - 2025 (VVT)

Comp Cams Stage 3 HRT 224/234 Max Power Hydraulic Roller CAM KIT

09-25 5.7L Hemi / 6.4L 392 (VVT)

CK201-305-17

The COMP Cams Stage 3 HRT 224/234 Max Power Hydraulic Roller Cam Kit is the most aggressive and highest horsepower-producing camshaft kit for vehicle engines with VVT and stock pistons. Designed to fully exploit the high-lift airflow capabilities of factory Gen IV HEMI cylinder heads, this Stage 3 grind delivers outstanding high-RPM power and throttle response.

With an operating range of 2,100–7,400 RPM (and support up to 7500+ RPM with #7230 valve springs), this cam is built for serious performance enthusiasts who want maximum output from a hydraulic roller setup without going to custom pistons or race-only builds.

• Cam Type: Hydraulic Roller
• Camshaft Series: HRT – Stage 3
• Camshaft Material: Billet Steel
• Lifter Type: Hydraulic Roller
• RPM Range: 2,100–7,400+ (supports 7500+ RPM with proper springs)
• Estimated Horsepower Gain: Up to 86 HP
• Valve Springs Required: Yes – designed for COMP #7230 springs
• Low Shock Technology: Reduces valve train stress, enhances durability
• Best HP of any stock piston camshaft for Gen IV HEMI
• Utilizes factory high-lift airflow characteristics

Camshaft Specifications:

• Advertised Intake Duration: 277°
• Advertised Exhaust Duration: 283
• Duration @ .050" (Intake/Exhaust): 224° / 234
• Valve Lift (Intake/Exhaust): 0.632" / 0.619"
• Lobe Separation Angle (LSA): 116°

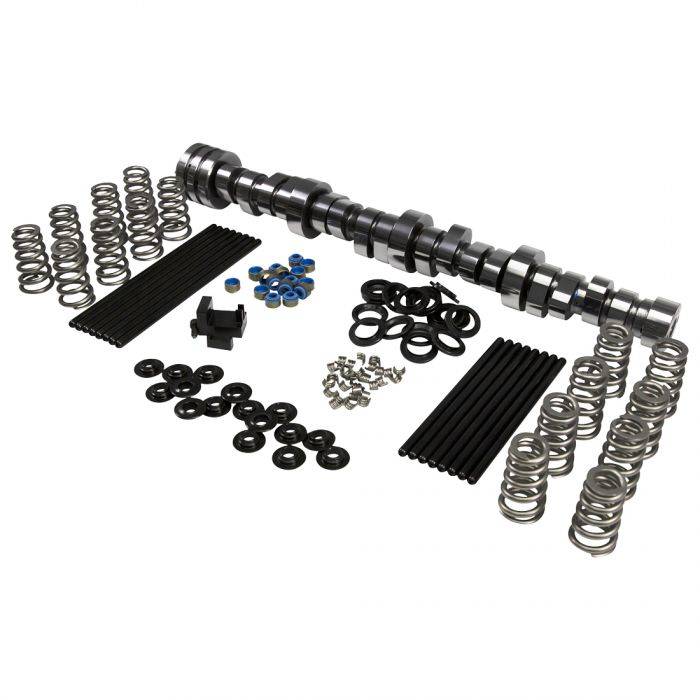

CK-Kit Includes:

• HRT Camshaft
• VVT Phaser Limiter
• Dual-length Pushrods
• Beehive or Conical Valve Springs (COMP #7230)
• Chromemoly Steel Retainers
• Valve Locks
• Spring Seats
• Valve Seals
