Comp Cams Stage 3 HRT 224/234 Max Power Hydraulic Roller MASTER CAM KIT

09-25 5.7L Hemi / 6.4L 392 (VVT)

MK201-305-17

The COMP Cams Stage 3 HRT 224/234 Max Power Hydraulic Roller Master Cam Kit is the ultimate performance cam package for your vehicle engine using stock pistons. Designed to extract every ounce of power from the high-lift airflow capabilities of Gen IV HEMI cylinder heads, this cam provides maximum horsepower and race-level RPM stability—without compromising durability. Operating from 2,100–7,400 RPM, and capable of 7500+ RPM with COMP’s #7230 valve springs, the 224/234 grind makes massive gains in both mid-range torque and top-end power. Built with Low Shock Technology (LST), the camshaft reduces valve train stress, increasing reliability under extreme conditions. The Master Cam Kit (MK-Kit) includes everything needed for a high-performance valvetrain overhaul—camshaft, VVT phaser limiter, pushrods, premium springs, steel retainers, valve locks, spring seats, valve seals, and drop-in performance lifters.

• Camshaft Series: HRT – Stage 3
• Cam Type: Hydraulic Roller
• Lifter Type: Hydraulic Roller
• Camshaft Material: Billet Steel
• Operating RPM Range: 2,100–7,400+ RPM (Supports 7500+ RPM with #7230 springs)

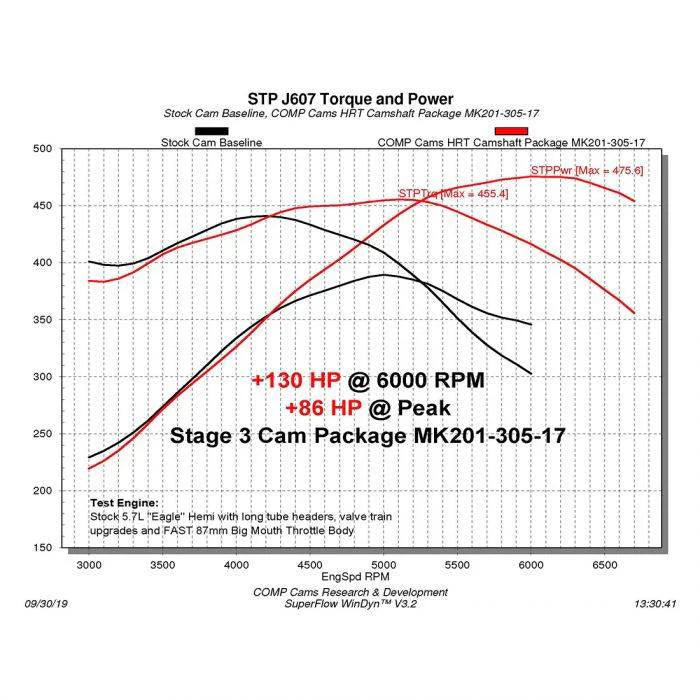

• Estimated Horsepower Gain: Up to +86 HP
• Valve Springs Required: Yes – Designed for COMP #7230 Springs
• Ideal For: Maximum HP builds with stock pistons, ported heads, and supporting mods
• Low Shock Technology: Enhances valve train life, reduces spring load loss, and stabilizes high-RPM operation

Camshaft Specs:

• Intake Duration @ .050" Lift: 224°
• Exhaust Duration @ .050" Lift: 234°
• Advertised Intake Duration: 277°
• Advertised Exhaust Duration: 283°
• Intake Valve Lift: 0.632
• Exhaust Valve Lift: 0.619
• Lobe Separation Angle (LSA): 116°

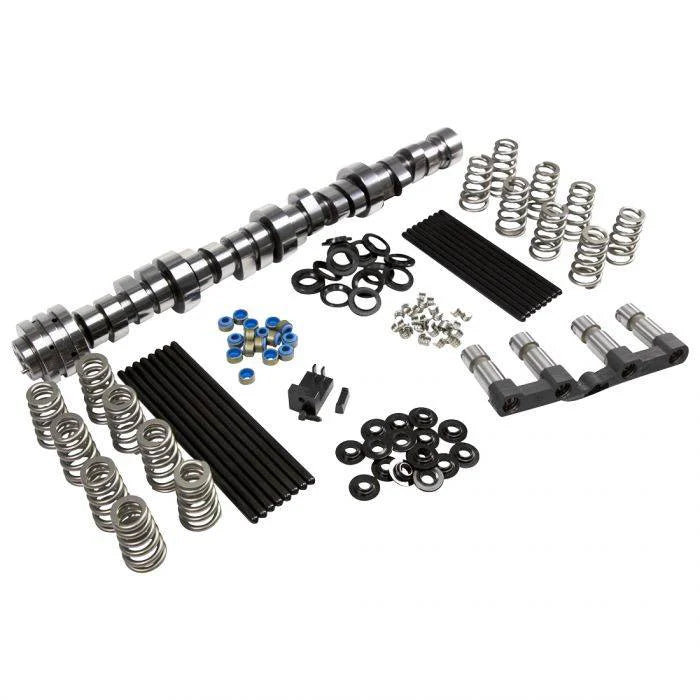

Master Cam Kit (MK-Kit) Includes:

• HRT Stage 3 Camshaft (#201-304-17)
• Performance Drop-In Hydraulic Lifters (#856Y-16)
• VVT Phaser Limiter (#5761)
• Pushrods (#7929-8 & #7997-8)
• Valve Springs (#7230-16)
• Steel Retainers (#761-16)
• Valve Locks (#607-16)
• Spring Seats (#4683-16)
• Valve Seals (#531-16)

COMP Cams is a leading performance valvetrain manufacturer, known for camshafts and supporting components built for everything from mild street upgrades to full race engines. Their product range covers camshafts, lifters, valve springs, rocker arms, and timing/valvetrain parts—key pieces for dialing in powerband, drivability, and RPM capability.
