Diablo Sport Trinity 2 and PCM Swap Kit

2015–2016 Ram 1500 5.7L HEMI

9321

Overview:

The Diablo Sport Trinity 2 and PCM Swap Kit is a cutting-edge performance tuning solution designed specifically for 2015–2016 Ram 1500 trucks equipped with the 5.7L HEMI engine. This comprehensive kit combines the advanced Trinity 2 EX programmer with an unlocked Powertrain Control Module (PCM) to deliver enhanced power, improved drivability, and full emissions compliance across all 50 states. Ideal for enthusiasts seeking reliable performance gains without compromising legal requirements, this kit offers a versatile tuning platform for daily driving, towing, and spirited performance.

With its intuitive 5-inch capacitive touch screen and user-friendly interface, the Trinity 2 provides real-time monitoring, customizable gauges, and a suite of performance tests, making it an indispensable tool for Ram 1500 owners who demand both power and precision.

Key Features:

The Diablo Sport Trinity 2 and PCM Swap Kit is packed with features that enhance your Ram 1500’s performance and user experience:

• Includes Trinity 2 programmer and one-time unlocked PCM cross shipment for seamless installation
• 50-state legal tuning with CARB Executive Order D-770, ensuring emissions compliance during SMOG testing
• Preloaded tunes for premium, 91, and 87 octane fuels, plus a performance tune for maximum power
• Up to 30 rear-wheel horsepower gain on premium fuel with disabled Multi-Displacement System (MDS)
• Performance Transmission Control Module (TCM) tune optimized for 8-speed automatic transmissions
• Adjustable traction control and Electronic Stability Program (ESP) disable options
• Customizable idle speed adjustment by ±400 RPM and speed limiter on/off for increased top speed
• Target cooling fan temperature settings from 150°F to 230°F for optimized engine cooling

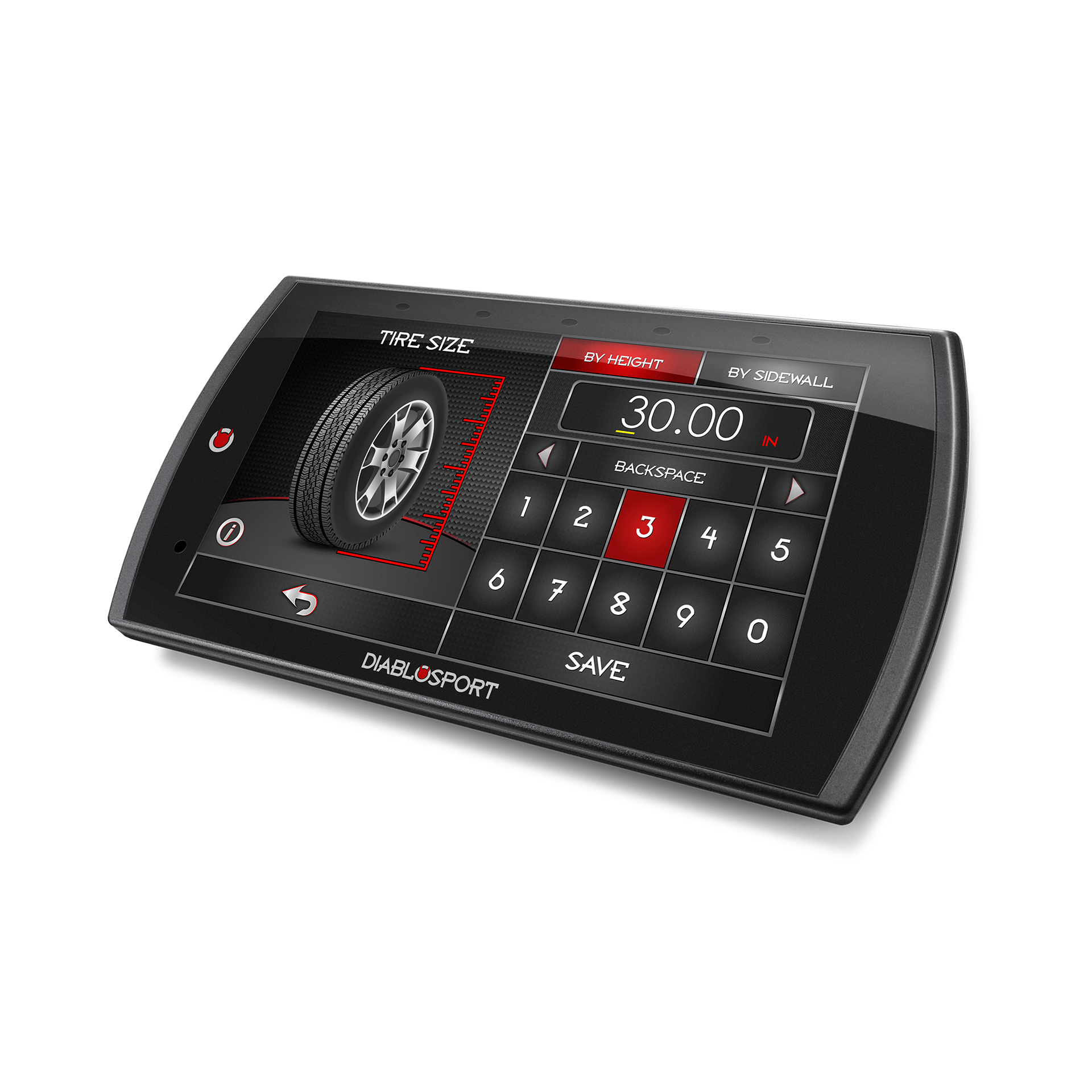

• Tire size correction from 20” to 44” for accurate speedometer readings
• Wideband Air/Fuel Ratio and spark timing adjustments for fine-tuning performance from 1,000 to 7,000 RPM

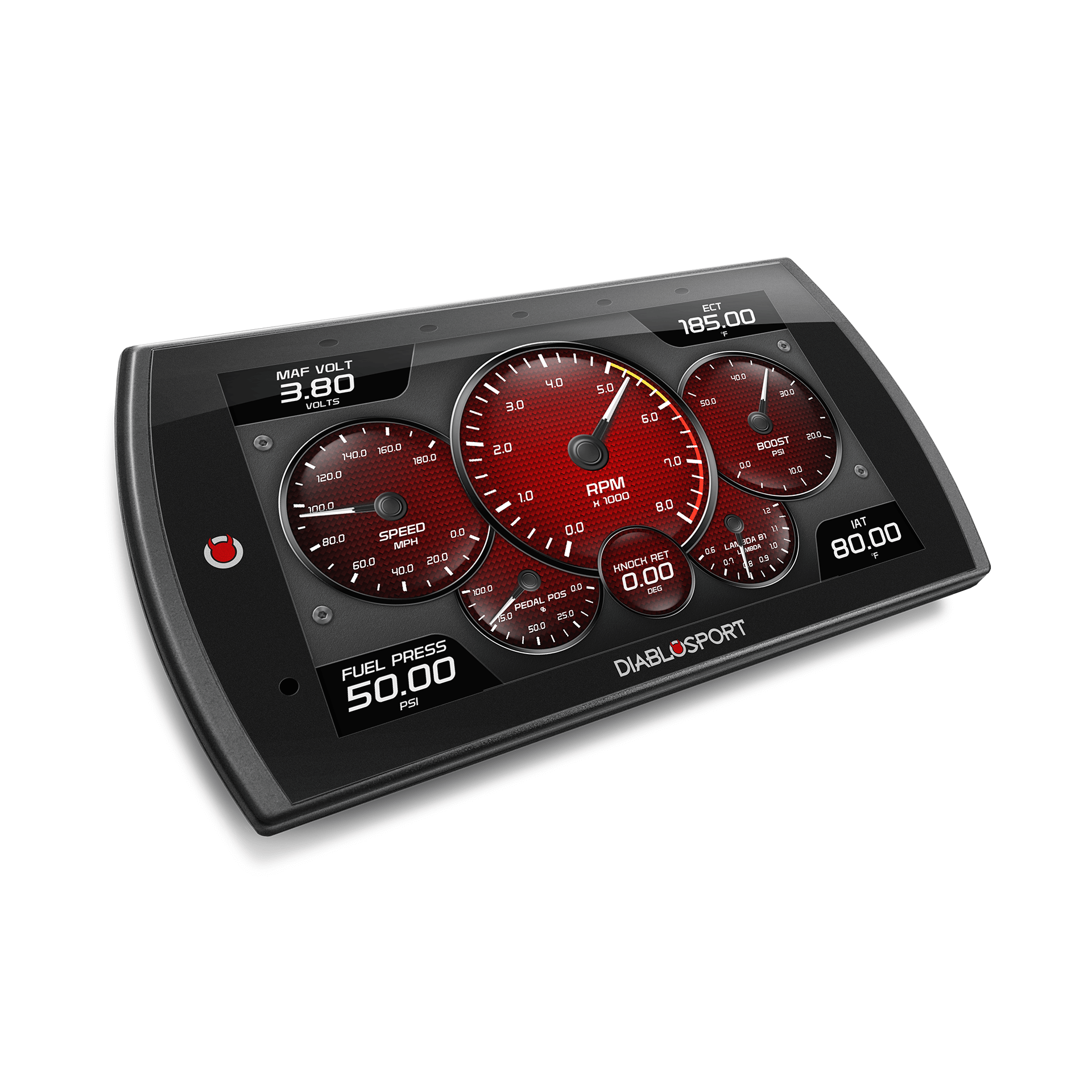

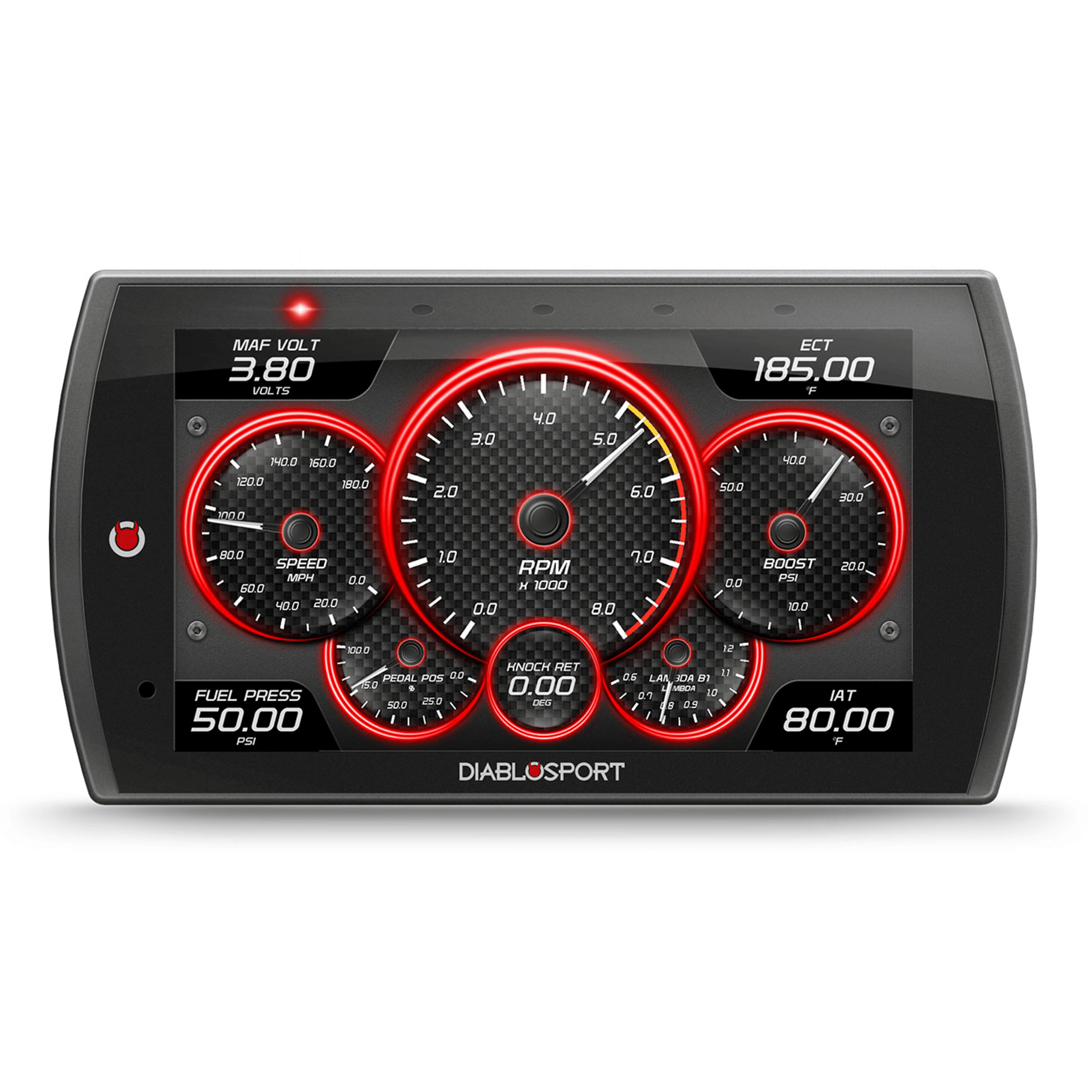

• Full-color 5-inch capacitive touch screen with swipe functionality and customizable gauge layouts

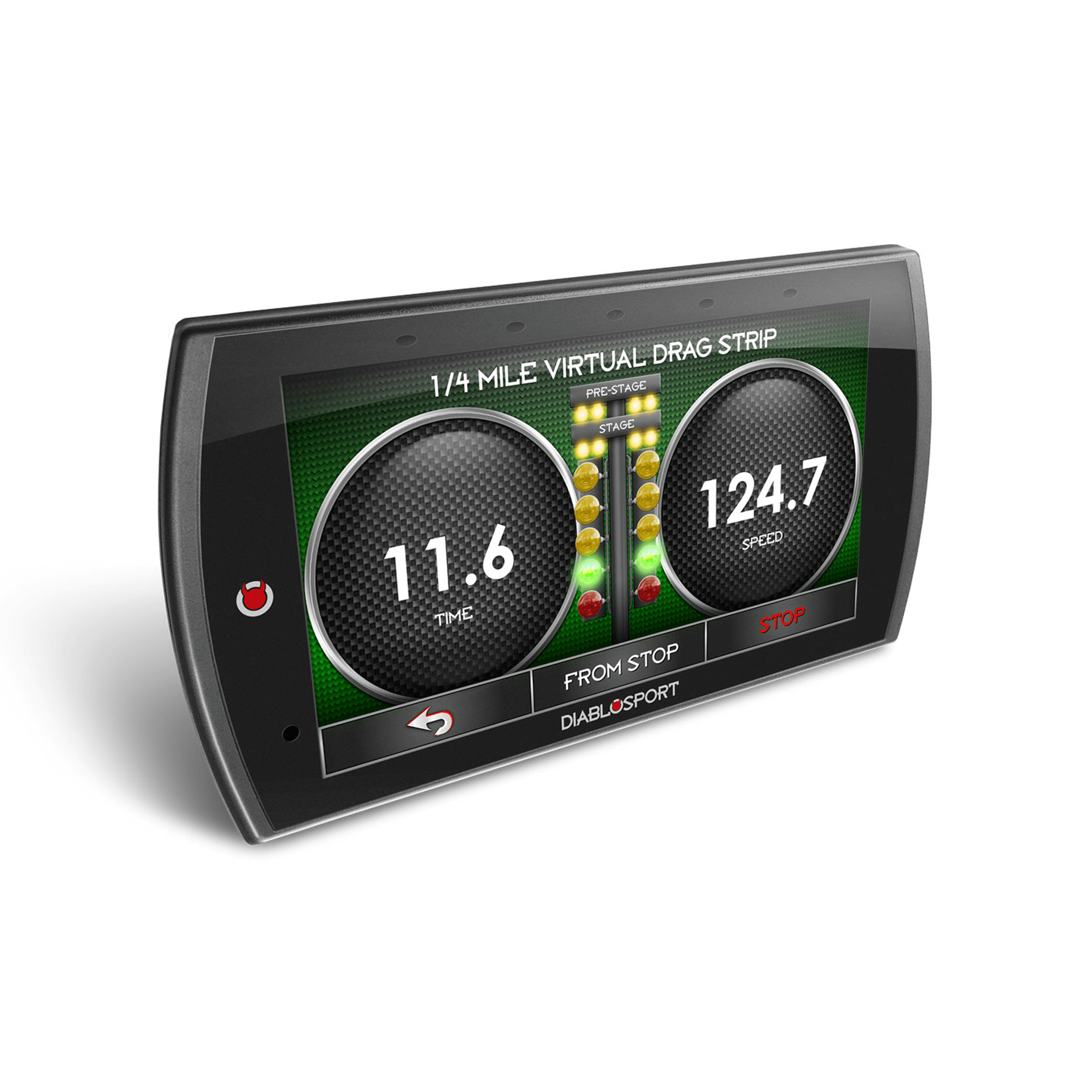

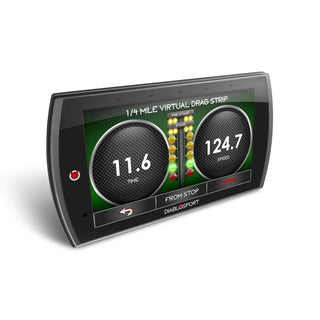

• Built-in performance tests including 0-60 mph and quarter-mile timing
• Data logging with 5-volt inputs and Wi-Fi updates for ongoing software enhancements

Construction & Design:

The Trinity 2 programmer features a robust ABS plastic housing designed for durability and ease of use inside the vehicle cabin. Its large 5-inch capacitive touch screen offers vibrant color display and intuitive swipe controls, providing a modern user experience. The unlocked PCM included in the kit is engineered to integrate seamlessly with your Ram 1500’s existing systems, ensuring reliable communication and tuning capabilities without compromising factory functionality.

Diablo Sport’s commitment to quality and innovation is evident in the meticulous engineering behind both the hardware and software, delivering a tuner that is both powerful and user-friendly.

Performance & Sound

By unlocking the full potential of the Ram 1500’s 5.7L HEMI engine, this kit delivers up to 30 additional rear-wheel horsepower on premium fuel. Disabling the Multi-Displacement System (MDS) enhances throttle response and power delivery, while the performance TCM tune optimizes shift points for the 8-speed transmission, resulting in smoother and more aggressive acceleration. The ability to adjust spark timing and air/fuel ratios allows enthusiasts to tailor engine performance to their specific needs, whether for towing, daily driving, or spirited performance.

Installation & Fitment:

The Diablo Sport Trinity 2 and PCM Swap Kit is designed for direct fitment on 2015–2016 Ram 1500 trucks with the 5.7L HEMI engine. Installation involves swapping the factory PCM with the unlocked unit provided, followed by programming via the Trinity 2 device. The process is straightforward for experienced installers and can be completed with basic automotive tools. No permanent modifications to the vehicle’s wiring or engine components are required, preserving factory reliability and warranty considerations.

What's Included:

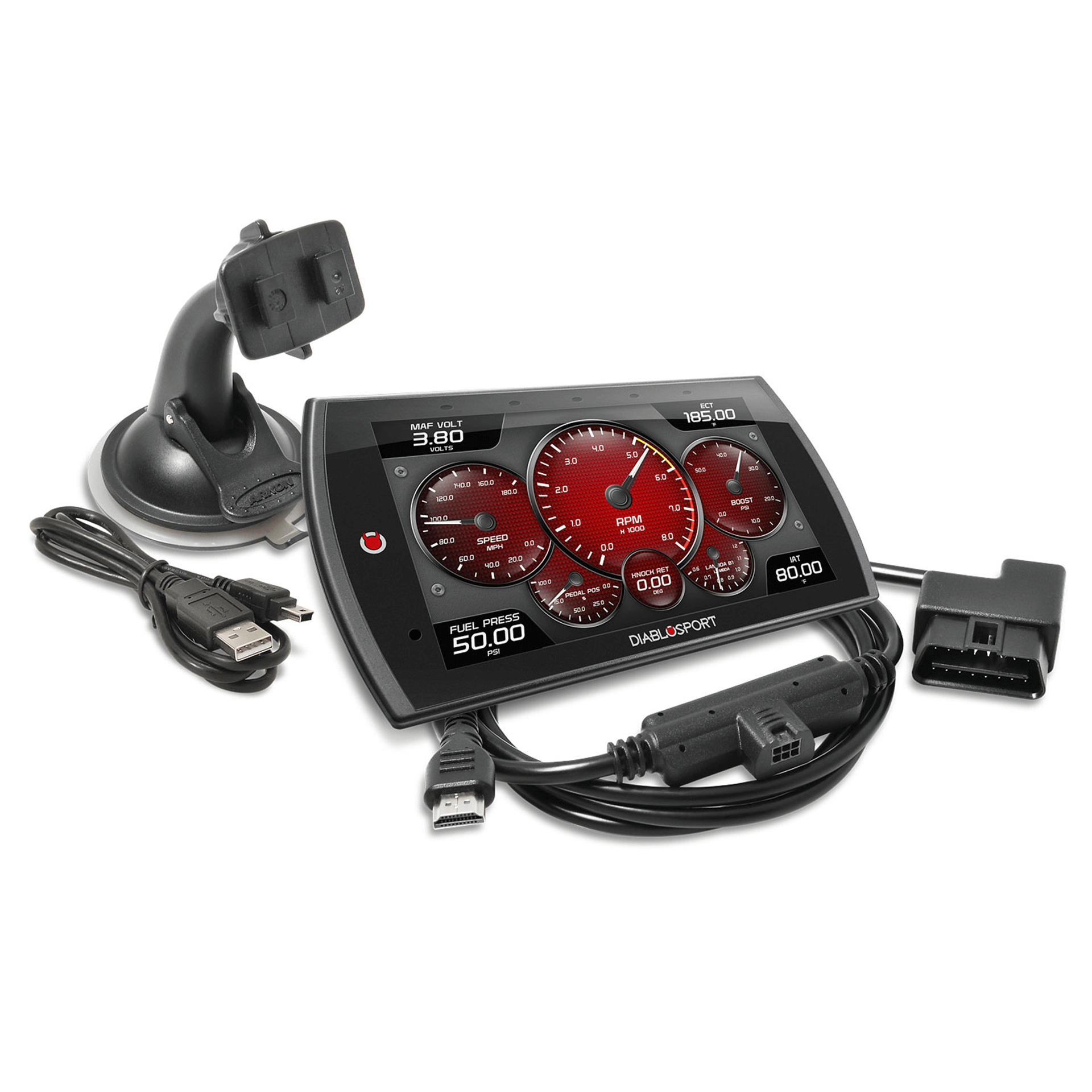

• Diablo Sport Trinity 2 EX Programmer with 5-inch capacitive touch screen
• One-time unlocked PCM cross shipment compatible with 2015–2016 Ram 1500 5.7L HEMI
• Preloaded performance and emissions-compliant tunes for multiple fuel grades
• Instruction manual and software for PC and Mac compatibility

Ideal For:

This kit is perfect for Ram 1500 owners who want to maximize their truck’s performance while maintaining full emissions compliance. Whether you’re a daily driver, a towing enthusiast, or a performance-minded individual, the Diablo Sport Trinity 2 and PCM Swap Kit offers flexible tuning options that cater to a wide range of driving styles and conditions. It is especially beneficial for those living in states with strict emissions testing requirements who still want to enjoy enhanced power and drivability.

Emissions Note

The Trinity 2 and PCM Swap Kit is 50-state legal and comes with a CARB Executive Order (EO) number D-770, ensuring compliance with emissions regulations across the United States. This allows you to pass SMOG testing while running DiabloSport’s performance tunes, providing peace of mind without sacrificing power.
