Fabtech Coilover Conversion Kit

Ram 2500 / 3500 13-16 6.7L Diesel/6.4L/5.7L

K3081DL

Overview:

The Fabtech 4.0 Coilover Reservoir Dirt Logic Suspension (DLSS) Conversion Kit is engineered to upgrade the front suspension of Ram 2500 and 3500 trucks, model years 2013 through 2018. Designed specifically to accommodate the massive Dirt Logic 4.0 Resi Coilovers, this kit transforms your truck’s front end for superior off-road capability and enhanced on-road comfort. Ideal for enthusiasts seeking a high-performance suspension upgrade, this system delivers exceptional damping performance over rough terrain while maintaining a smooth highway ride.

This conversion kit requires prior installation of Fabtech’s Radius Arm or 4 Link Suspension systems, making it a perfect complement to those setups. It is tailored for heavy-duty Ram trucks, including popular trims such as Big Horn, Laramie, Power Wagon, and Tradesman, ensuring broad compatibility across the Ram 2500 and 3500 lineup.

Key Features:

Fabtech’s 4.0 Coilover Conversion Kit offers a range of advanced features designed to maximize suspension performance and durability:

• Enables installation of Dirt Logic 4.0 Resi Coilovers with remote billet aluminum reservoirs
• Utilizes factory upper coil buckets reinforced with support gussets for enhanced strength
• Lower mounts weld directly to the axle housing and include cross support gussets for the factory TracK Bar bracket
• Stainless steel coilover bodies provide superior corrosion resistance for long-lasting durability
• Designed for 7-inch coilover travel to accommodate larger tires and aggressive off-road use
• Compatible with tire sizes up to 38x13.50R22 with minor trimming required
• Optimized for wheels ranging from 17x9 to 22x10 with 5-inch backspacing
• Delivers a balanced ride quality, combining smooth highway handling with outstanding off-road damping
• High-strength construction supports demanding off-road conditions and heavy loads

Construction & Design:

The Fabtech 4.0 Coilover Conversion Kit is built with premium materials and precision engineering to ensure reliability and performance. The coilover bodies are crafted from stainless steel, offering excellent resistance to corrosion and wear in harsh environments. The remote reservoirs are machined from billet aluminum, enhancing heat dissipation and shock performance during extended off-road use.

Structural reinforcements include gussets on the factory upper coil buckets and cross supports on the lower mounts, which weld securely to the axle housing. This design maintains the integrity of the suspension under extreme loads and improves overall chassis rigidity. The kit’s components are engineered to integrate seamlessly with Fabtech’s Radius Arm and 4 Link Suspension systems, preserving factory geometry while enabling significant suspension travel.

Installation & Fitment:

Installation of the Fabtech 4.0 Coilover Conversion Kit is a professional-level upgrade requiring welding and drilling of approximately 10 holes. The process typically takes 4 to 5 hours and must be performed after the Fabtech Radius Arm or 4 Link Suspension system is installed. Minor trimming of the fender or wheel well area may be necessary to accommodate larger tires and wheels.

This kit fits a wide range of Ram 2500 and 3500 models from 2013 to 2018, including trims such as Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, Power Wagon, SLT, and Tradesman. It supports 4WD configurations and is optimized for tire sizes up to 38x13.50R22 with wheels up to 22x10 inches and 5-inch backspacing.

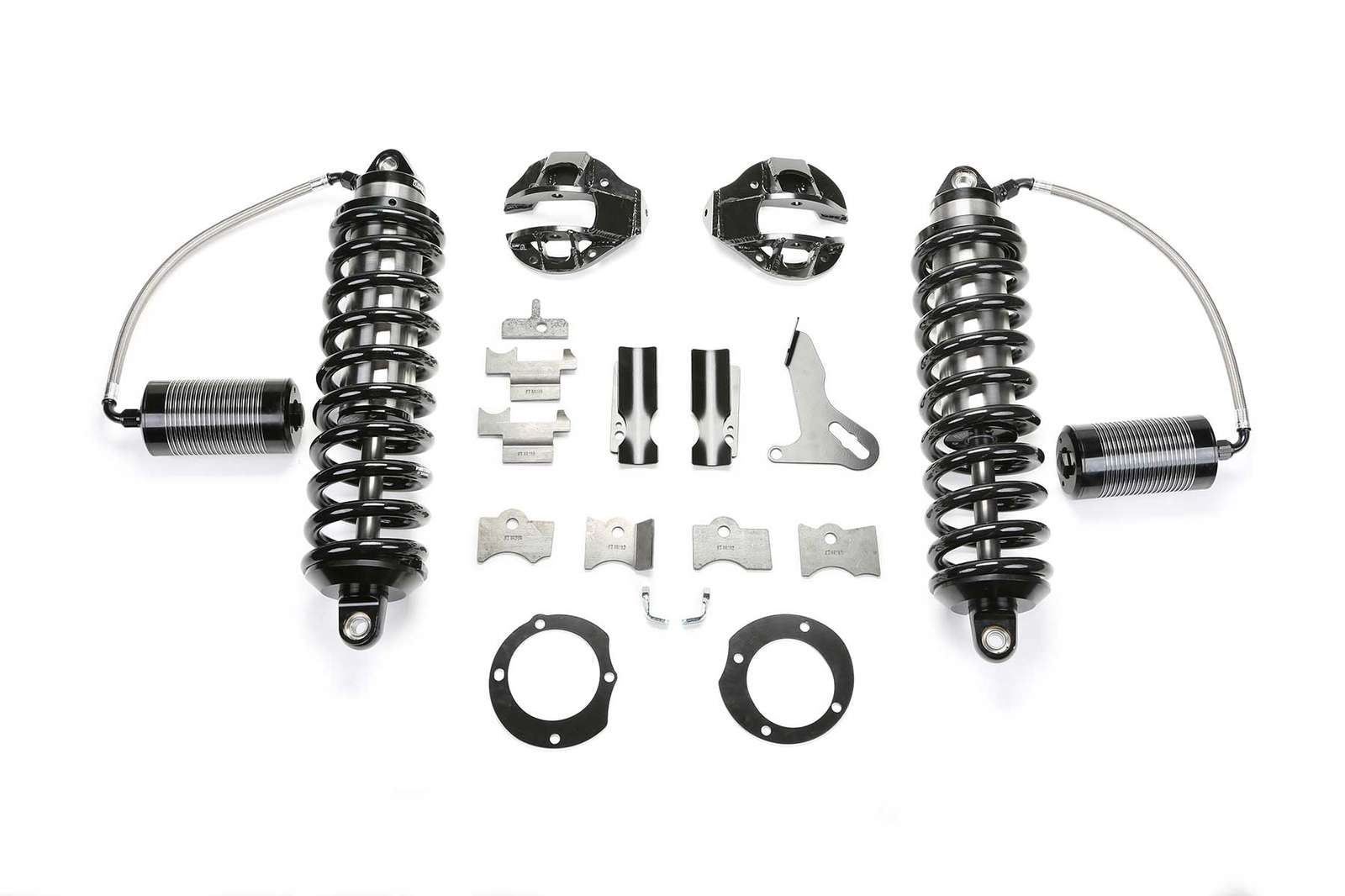

What's Included:

• Upper coil bucket support gussets
• Lower axle housing mounts with cross support gussets
• Hardware kit for welding and installation
• Instructions for professional installation

Ideal For:

This conversion kit is ideal for Ram 2500 and 3500 owners who demand superior suspension performance for off-road adventures without sacrificing on-road comfort. It is perfect for enthusiasts who have already upgraded to Fabtech’s Radius Arm or 4 Link Suspension systems and want to maximize their truck’s front suspension capabilities. Whether tackling rugged trails, hauling heavy loads, or cruising highways, this kit provides a durable, high-performance solution.
