Fabtech Ball Joint Control Arm Lift System
2019–2021 Ram 1500 Big Horn, HFE, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel, Special Service, Tradesman
K3169DL
Overview:
The Fabtech 3-inch Ball Joint Upper Control Arm (UCA) System is engineered specifically for 2019 to 2021 Ram 1500 models, delivering a balanced lift that enhances both on-road comfort and off-road capability. Designed to accommodate 35-inch tires, this lift kit provides a commanding stance without compromising ride quality or vehicle handling. Fabtech’s precision engineering ensures full suspension travel and steering articulation without binding, maintaining the factory turning radius for confident maneuverability.
This system is ideal for Ram 1500 owners seeking a durable, high-performance suspension upgrade that supports aggressive off-road use while preserving everyday drivability. It replaces the factory plastic upper control arms with robust tubular steel components featuring heavy-duty ball joints, significantly improving suspension strength and reliability.
Key Features:
The Fabtech 3-inch UCA System combines advanced suspension components and premium shocks to deliver superior performance and durability:
- 3-inch suspension lift designed for 35x12.50R18 or 35x12.50R20 tires with minor trimming
- Heavy-duty tubular steel upper control arms with large, robust ball joints for enhanced strength
- Dirt Logic 2.50-inch coilover front shocks with stainless steel bodies and NitroSteel piston rods for corrosion resistance and durability
- Dirt Logic 2.25-inch rear shocks providing excellent damping for both on- and off-road conditions
- Rear coil spring spacers to maintain factory stance and ride quality
- Full suspension travel with no binding or loss of steering lock-to-lock capability
- Compatible with 18x9 or 20x9 wheels with 5-inch backspacing (minor trimming required)
- Designed for aggressive off-road use while maintaining superior ride comfort
Construction & Design:
Fabtech’s upper control arms are constructed from high-strength tubular steel, replacing the factory plastic arms and light-duty ball joints. This upgrade significantly increases suspension durability and resistance to off-road stresses. The large ball joints provide improved articulation and longevity, ensuring reliable performance in demanding conditions.
The Dirt Logic coilover shocks feature stainless steel bodies and NitroSteel piston rods, materials chosen for their exceptional corrosion resistance and toughness. This construction extends shock life and maintains consistent damping performance over varied terrain. Rear coil spring spacers lift the rear suspension without compromising ride quality or vehicle stance.
Installation & Fitment:
This lift kit is designed for straightforward installation on 2019 to 2021 Ram 1500 models, including Big Horn, HFE, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel, Special Service, and Tradesman trims. Minor trimming of the wheel well may be required to accommodate larger tires and wheels. The system is not compatible with factory air suspension, diesel models, or 2019 Ram 1500 Classic models. OEM wheels and tires cannot be reused with this kit.

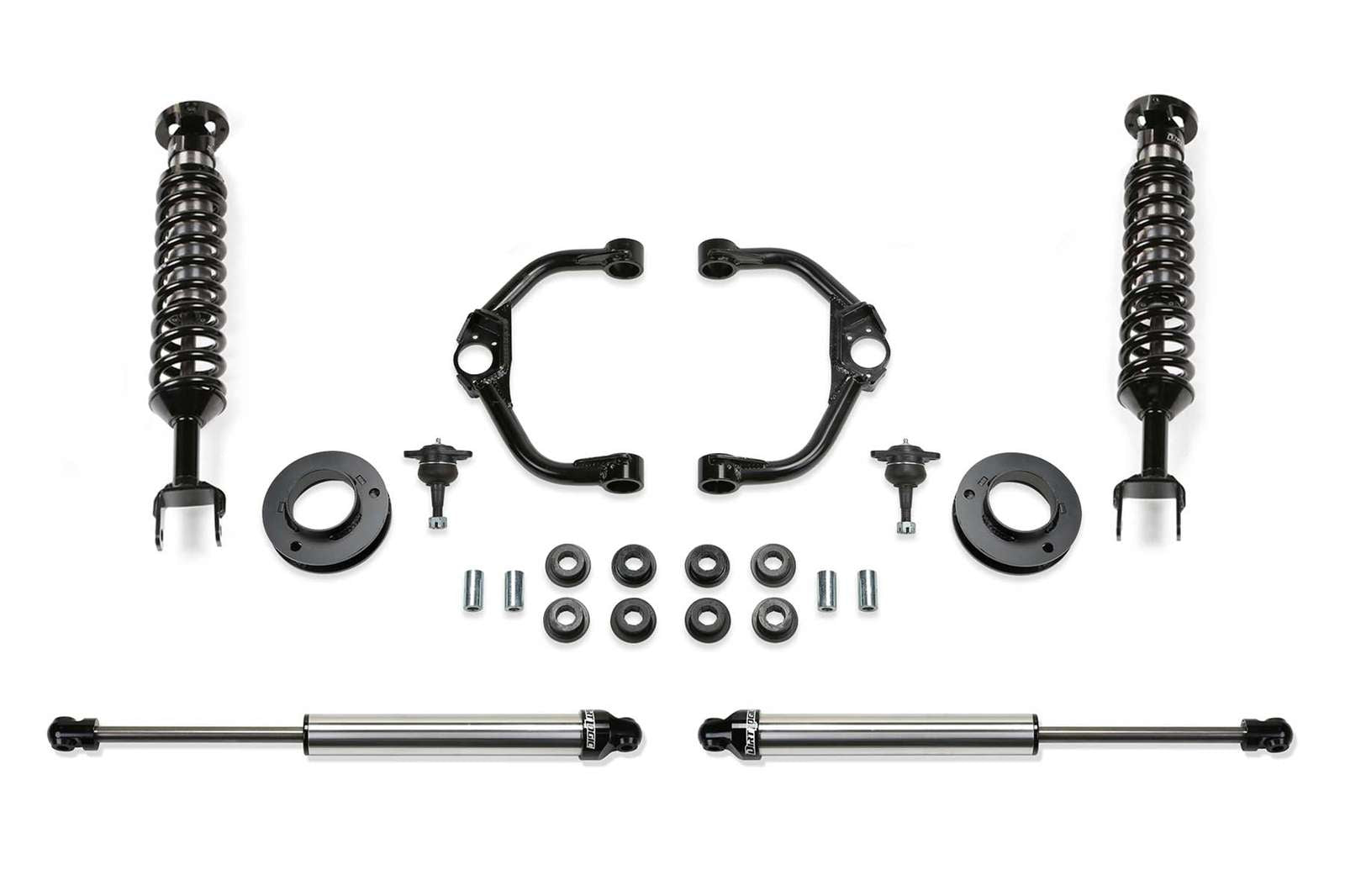

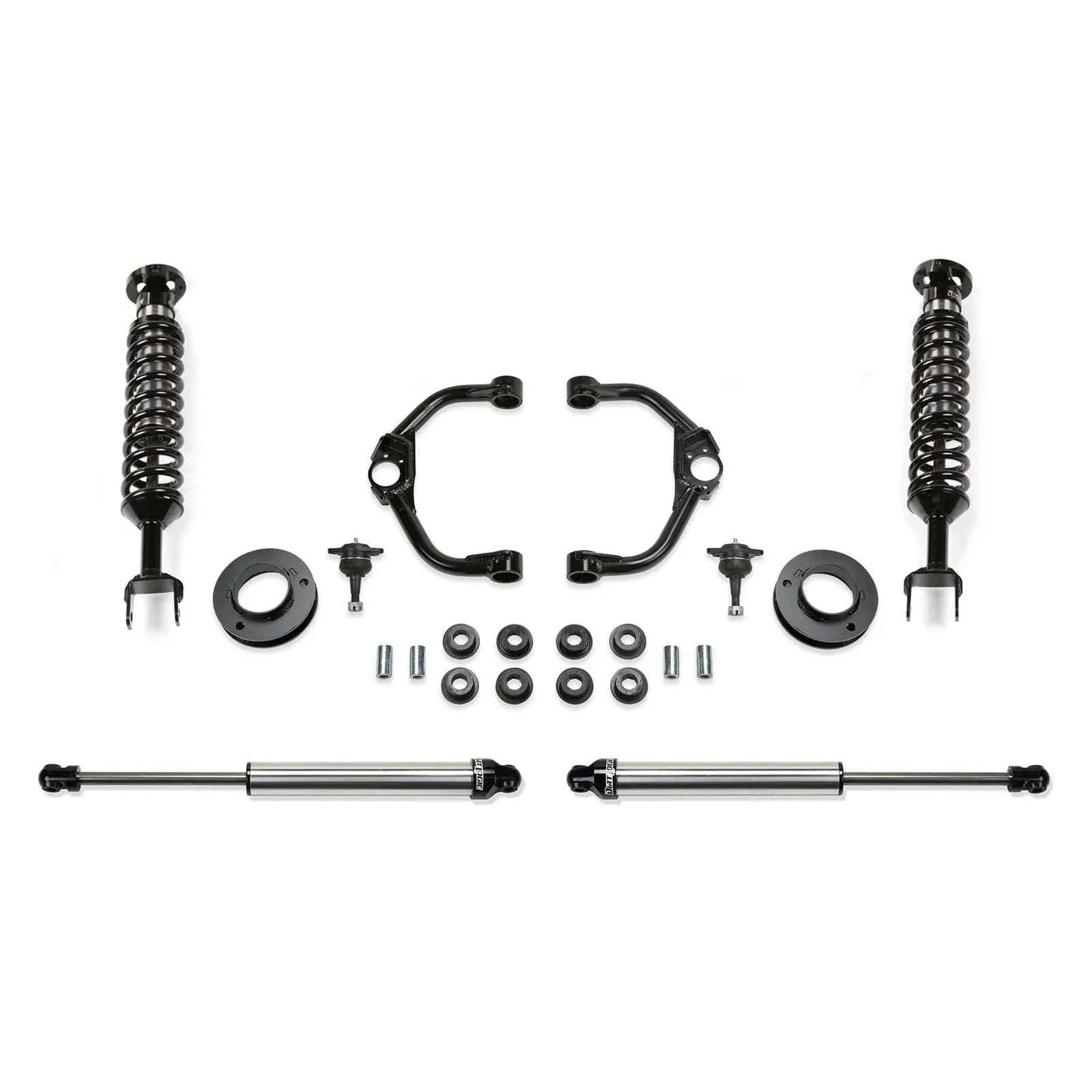

What's Included:
- Fabtech tubular steel upper control arms with heavy-duty ball joints
- Dirt Logic 2.50-inch front coilover shocks
- Dirt Logic 2.25-inch rear shocks
- Rear coil spring spacers
- All necessary hardware for installation
Ideal For:
This lift system is perfect for Ram 1500 owners who want a moderate 3-inch lift that supports larger 35-inch tires for enhanced off-road capability without sacrificing daily driving comfort. It suits enthusiasts who demand durability and strength from their suspension components for aggressive trail use, as well as those looking to improve vehicle stance and ground clearance with a high-quality, engineered solution.
