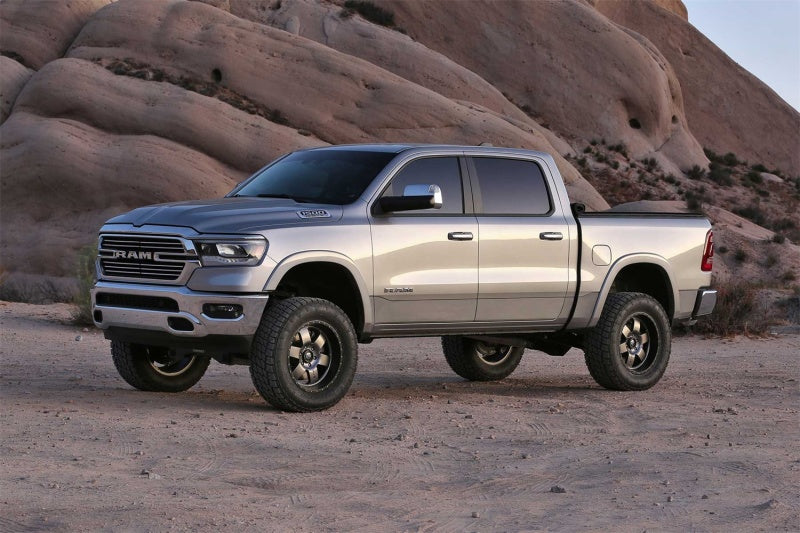

Fabtech Performance Coilover Suspension System
2019–2021 Ram 1500 Big Horn, HFE, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel, Tradesman
K3095DL
Overview:
The Fabtech 6-inch Performance Coilover Suspension System is engineered to elevate your Ram 1500’s offroad capability while maintaining exceptional on-road comfort. Designed specifically for 2019 to 2021 Ram 1500 models, this system increases ride height using factory suspension components enhanced with heavy-duty bracketry. Featuring Fabtech’s Dirt Logic shocks and extended length steering knuckles, it delivers superior damping and stability for both rugged trails and highway cruising.
This suspension upgrade is ideal for Ram owners seeking a balanced lift kit that preserves electronic stability control functionality and offers improved ground clearance without compromising ride quality.
Key Features:
Fabtech’s Performance Coilover Suspension System combines advanced engineering and durable materials to provide a reliable lift solution. Key features include:
- 6-inch lift utilizing factory suspension components with heavy-duty bracketry for durability
- Front and rear Dirt Logic shocks with dual 2.5-inch aluminum remote reservoirs for enhanced heat dissipation and reduced shock fade
- Extended length ductile iron steering knuckles designed to maintain near-stock track width and ensure proper electronic stability control (ESC) operation
- 1/4-inch thick steel lower control arm crossmembers with an arched design for maximum ground clearance on challenging terrain
- Four adjustable alignment cams for a wide range of alignment settings
- Heavy-duty sway bar drop brackets that retain factory link ends at the correct angle to prevent binding and maintain positive road feel
- Rear steel coil spring spacers that work with factory coil springs to maintain proper load capacity and a smooth highway ride
- Fully welded box design crossmembers for added front suspension strength
- Compatible with aftermarket 20-inch wheels or larger; minor trimming may be required for certain tire and wheel combinations
Construction & Design:
Fabtech’s suspension system is built with premium materials and precision engineering to withstand demanding offroad conditions. The front coilovers feature stainless steel bodies and NitroSteel piston rods for corrosion resistance and long-lasting performance. Aluminum remote reservoirs improve heat management, reducing shock fade during extended use.
The extended length steering knuckles are crafted from ductile iron, providing strength and durability while preserving factory ESC functionality. The heavy-duty 1/4-inch steel crossmembers are fully welded and arched to maximize ground clearance without sacrificing structural integrity.
Installation & Fitment:
This lift kit is designed for direct fitment on 2019 to 2021 Ram 1500 models including Big Horn, HFE, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel, and Tradesman trims. It is not compatible with factory air suspension, Rebel models equipped with OEM 22-inch wheels and heavy-duty bearing options, or 2019 Ram 1500 Classic models.
Installation requires minor trimming for certain tire and wheel setups, specifically when using 35/12.50R20 or 37/12.50R20 tires on 20x9 wheels with 5-inch backspacing. OEM wheels and tires cannot be used with this system. Professional installation is recommended to ensure proper alignment and suspension performance.

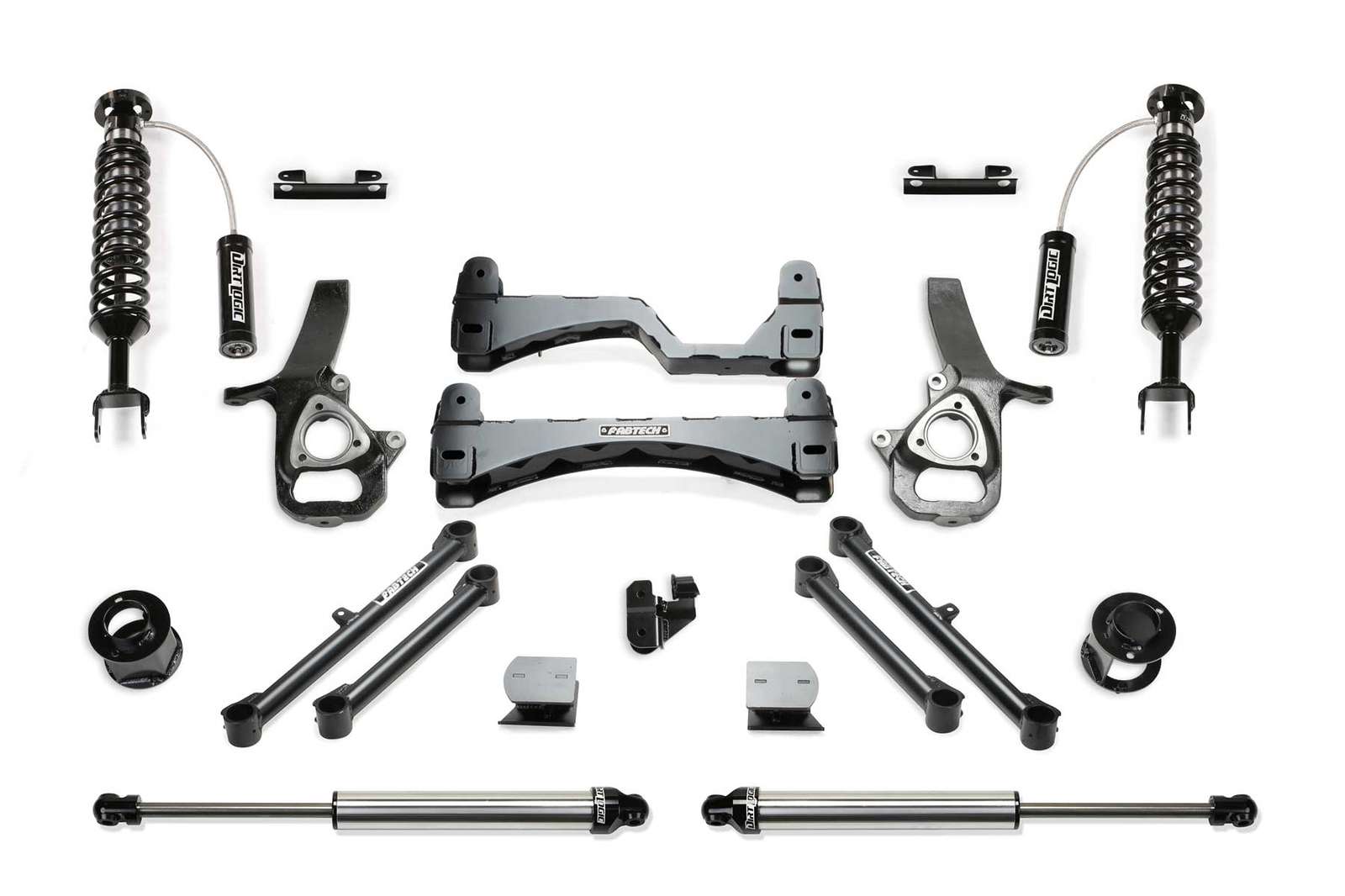

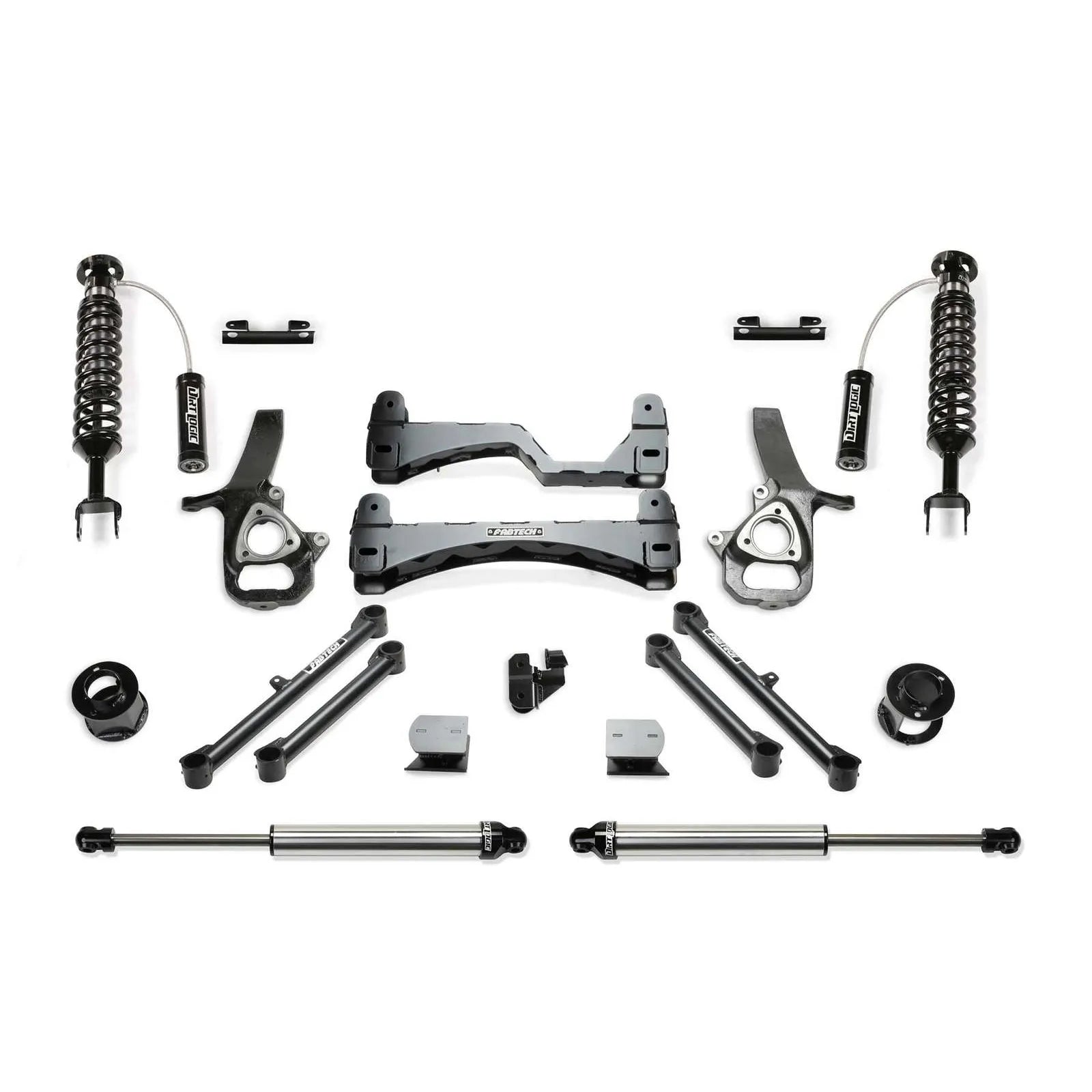

What's Included:
- Fabtech Dirt Logic 2.5-inch stainless steel coilover shocks with dual remote reservoirs (front)
- Fabtech Dirt Logic 2.25-inch shocks (rear)
- Extended length ductile iron steering knuckles
- 1/4-inch thick steel lower control arm crossmembers with adjustable alignment cams
- Heavy-duty sway bar drop brackets
- Steel rear coil spring spacers
- All necessary mounting hardware and brackets
Ideal For:
This suspension system is perfect for Ram 1500 owners who demand a versatile lift kit that enhances offroad capability without sacrificing on-road comfort. It suits enthusiasts who frequently tackle rugged trails, require improved ground clearance, and want to maintain factory electronic stability control features. Additionally, it is well-suited for those upgrading to larger aftermarket wheels and tires while preserving a smooth highway ride.
