Fabtech Performance Coilover Suspension System
2019–2021 Ram 1500 Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel, Special Service, Tradesman
K3088DL
Overview:
The Fabtech Performance Coilover Suspension System is engineered specifically for 2019 to 2021 Ram 1500 models, offering a perfect balance between maintaining a stock-like ride quality and accommodating larger tires and wheels. This system is ideal for Ram 1500 owners who want to enhance their truck’s off-road capability and appearance without sacrificing comfort or factory electronic stability control functionality. Featuring heavy-duty bolt-on bracketry and Fabtech’s proven independent front suspension (IFS) technology, this suspension upgrade delivers reliable, trouble-free performance for years to come.
Designed to provide a 6-inch lift, the system includes Dirt Logic 2.5 stainless steel coilover shocks with remote reservoirs for superior heat dissipation and damping control. The rear suspension lift is achieved using steel coil spring spacers that retain the factory coil springs, ensuring excellent load-carrying capacity and a smooth highway ride. This comprehensive suspension solution enhances ground clearance, protects drivetrain components, and preserves the truck’s handling characteristics.
Key Features:
The Fabtech Performance Coilover Suspension System combines durability, adjustability, and advanced engineering to elevate your Ram 1500’s performance and stance. Key features include:
- Heavy-duty 1/4" thick steel lower control arm crossmembers with an arched design for maximum ground clearance
- Four adjustable alignment cams providing a wide range of alignment adjustments for precise handling
- Extended length ductile iron steering knuckles that maintain near-stock track width and ensure compatibility with factory electronic stability control (ESC)
- Stainless steel Dirt Logic 2.5 coilover shocks with aluminum remote reservoirs to reduce shock fade and improve heat dissipation
- Heavy-duty front differential skid plate constructed from 1/4" thick steel to protect the front differential from off-road obstacles
- Rear lift achieved through steel coil spring spacers utilizing factory coil springs for stock load capacity and ride quality
- Fully welded box design crossmembers for enhanced strength and durability
- Integrated differential mounts that reposition the front differential for proper CV axle alignment
Construction & Design:
Fabtech’s suspension system is built with premium materials and precision engineering to withstand demanding off-road conditions while maintaining on-road comfort. The lower control arm crossmembers are fabricated from 1/4" thick steel and feature a fully welded box design, ensuring exceptional strength and rigidity. The extended length steering knuckles are made from ductile iron, providing durability and maintaining proper geometry for factory ESC compatibility.
The coilover shocks feature stainless steel bodies and NitroSteel® piston rods for corrosion resistance and long-lasting performance. Aluminum remote reservoirs help dissipate heat efficiently, reducing shock fade during extended off-road use. The rear coil spring spacers are crafted from steel to maintain the factory spring rate and load-carrying capacity, preserving the truck’s ride quality and handling characteristics.
Installation & Fitment:
This suspension system is designed for direct bolt-on installation using heavy-duty bracketry, minimizing the need for extensive modifications. It fits 2019 to 2021 Ram 1500 models including Big Horn, Laramie, Laramie Longhorn (2019–2020), Limited, Lone Star, Rebel, Special Service (2021), and Tradesman trims. Note that this system is not compatible with factory air suspension, OEM 22" wheels with heavy-duty bearing option, Rebel models equipped with certain configurations, or 2019 Ram 1500 Classic models.
Minor trimming may be required to accommodate larger 35" or 37" tires on 20x9 wheels with 5" backspacing. Aftermarket wheels 20" or larger are required, and OEM wheels and tires cannot be used with this system.

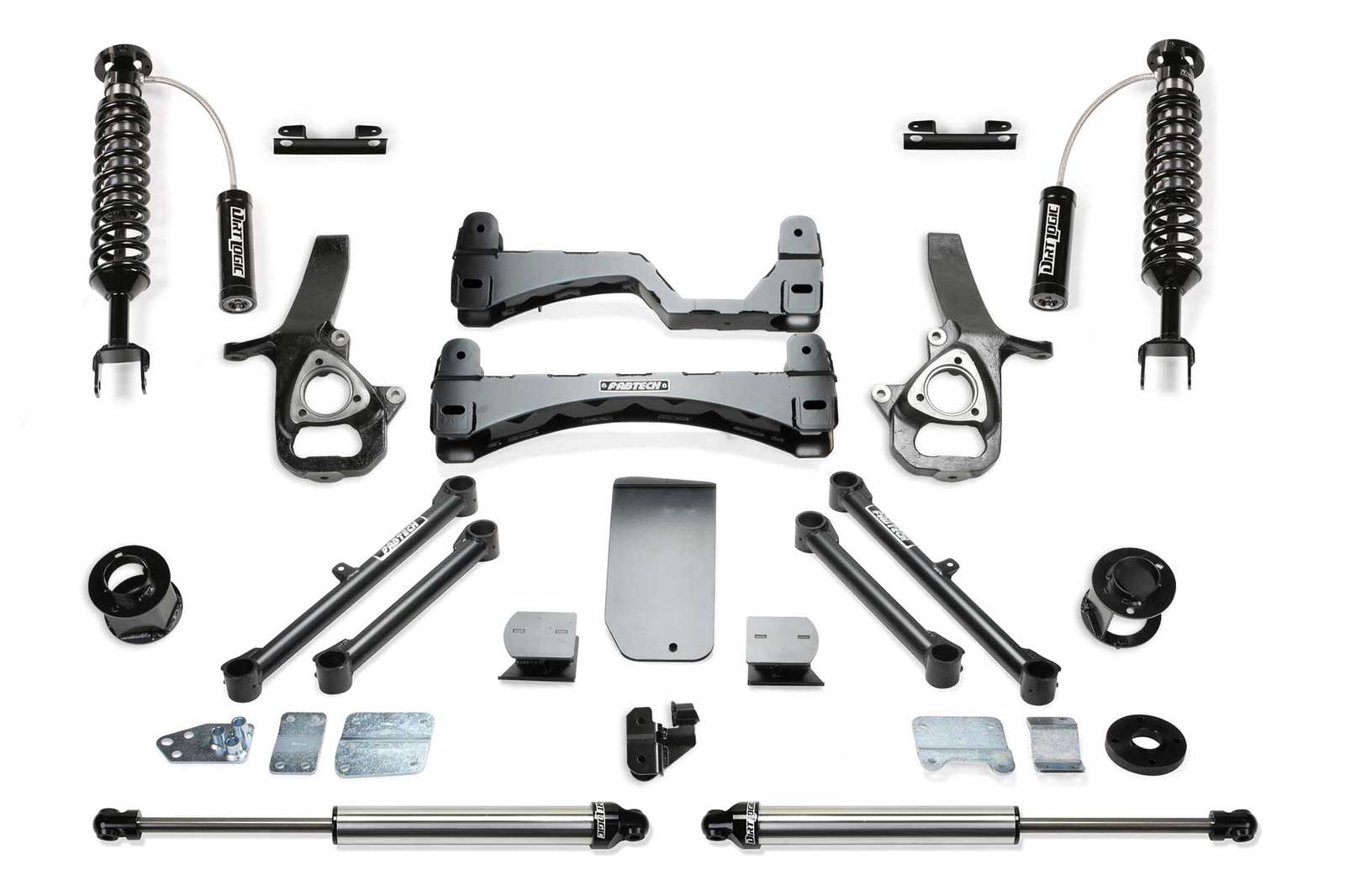

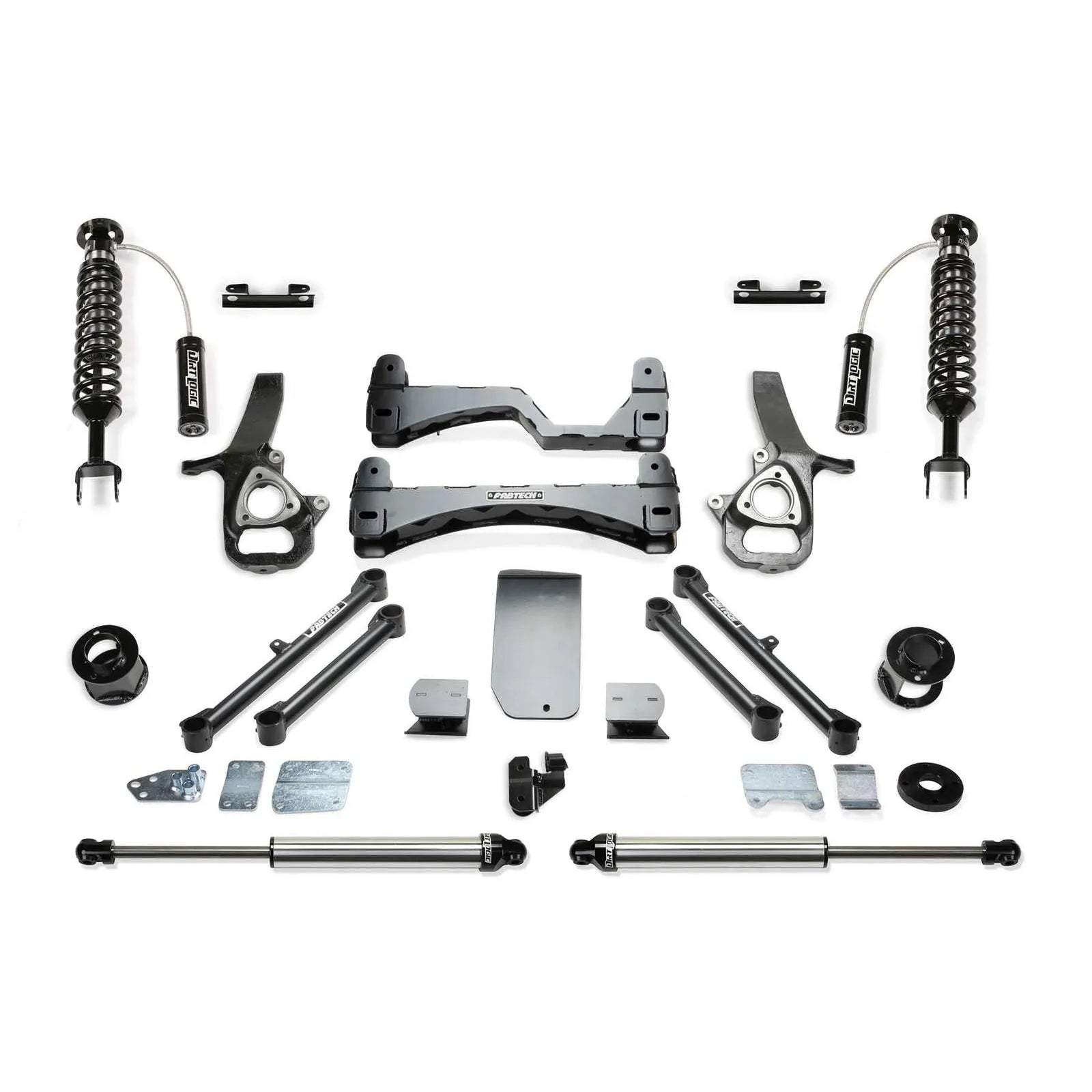

What's Included:
- Front and rear Fabtech Dirt Logic 2.5 coilover shocks with remote reservoirs
- Rear Dirt Logic 2.25 shocks
- Heavy-duty 1/4" thick steel lower control arm crossmembers
- Extended length ductile iron steering knuckles
- Steel coil spring spacers for rear lift
- Front differential skid plate
- All necessary mounting hardware and alignment cams
Ideal For:
This suspension system is perfect for Ram 1500 owners seeking a reliable, high-quality lift solution that supports larger tires and wheels without compromising ride comfort or factory electronic stability control. It is well-suited for enthusiasts who use their trucks for daily driving, highway cruising, and moderate off-road adventures, providing enhanced ground clearance and drivetrain protection while maintaining excellent on-road manners.
