Fabtech Upper Control Arm System
2019–2021 Ram 1500 Big Horn, HFE, Laramie, Laramie Longhorn, Limited, Lone Star, Special Service, Tradesman
K3167M
Overview:
The Fabtech 3-inch Ball Joint Upper Control Arm (UCA) System is engineered specifically for 2019 to 2021 Ram 1500 models, delivering a balanced lift that enhances both on-road comfort and off-road capability. Designed to accommodate 35-inch tires, this lift kit provides a commanding stance without compromising ride quality or suspension performance. Ideal for Ram owners seeking a durable, reliable upgrade, the system combines a mild 3-inch lift with heavy-duty components to improve suspension strength and vehicle clearance.
Fabtech’s engineers rigorously tested the system to ensure smooth suspension travel and full steering lock without binding or loss of turning radius. This kit is a substantial upgrade over the factory plastic upper control arms, offering enhanced durability for aggressive driving and off-road conditions.
Key Features:
This Fabtech lift kit offers a comprehensive set of features designed to improve your Ram 1500’s performance and appearance:
- 3-inch front and rear lift for improved ground clearance and tire fitment
- Heavy-duty tubular steel upper control arms with large ball joints for increased strength
- Steel spacer for coilover shock top mount and coil spring collar for proper suspension travel
- Fabtech Stealth monotube shocks with Nitrocarb piston rods for corrosion resistance and durability
- Compatible with 35x12.50R18 and 35x12.50R20 tires on 18x9 or 20x9 wheels with 5-inch backspacing (minor trimming required)
- Maintains factory ride quality while enhancing off-road capability
- Full steering lock with no binding or loss of turning radius
- Does not fit factory air suspension, Rebel models, or 2019 Ram 1500 Classic models
Construction & Design:
Fabtech’s upper control arms are constructed from high-strength tubular steel, replacing the factory plastic arms and light-duty ball joints. This robust design significantly improves suspension durability and reliability, especially under demanding off-road conditions. The large ball joints provide enhanced articulation and resistance to wear, ensuring long-lasting performance.
The front lift is achieved through a combination of a steel spacer mounted atop the factory coilover shock and a coil spring collar positioned below the coil spring. This dual-spacer design delivers a full 3-inch lift while preserving proper suspension travel and preventing binding. The rear suspension lift is accomplished with a coil spring spacer that maintains the vehicle’s factory stance and ride comfort.
Fabtech’s Stealth shocks feature a sealed monotube design with Nitrocarb-treated piston rods, offering excellent corrosion resistance and protection against rock chipping. These shocks provide a smooth highway ride while delivering effective damping for off-road terrain.
Installation & Fitment:
The Fabtech 3-inch UCA System is designed for straightforward installation using factory mounting points and hardware. Minor trimming of the front fender liners may be required to accommodate larger tires and wheels. This kit is compatible with 2019 to 2021 Ram 1500 Big Horn, HFE, Laramie, Laramie Longhorn (2019–2020), Limited, Lone Star, Special Service (2021), and Tradesman models.
Note that this lift kit is not compatible with factory air suspension, Rebel models, or 2019 Ram 1500 Classic models. OEM wheels and tires cannot be used with this system due to clearance requirements.

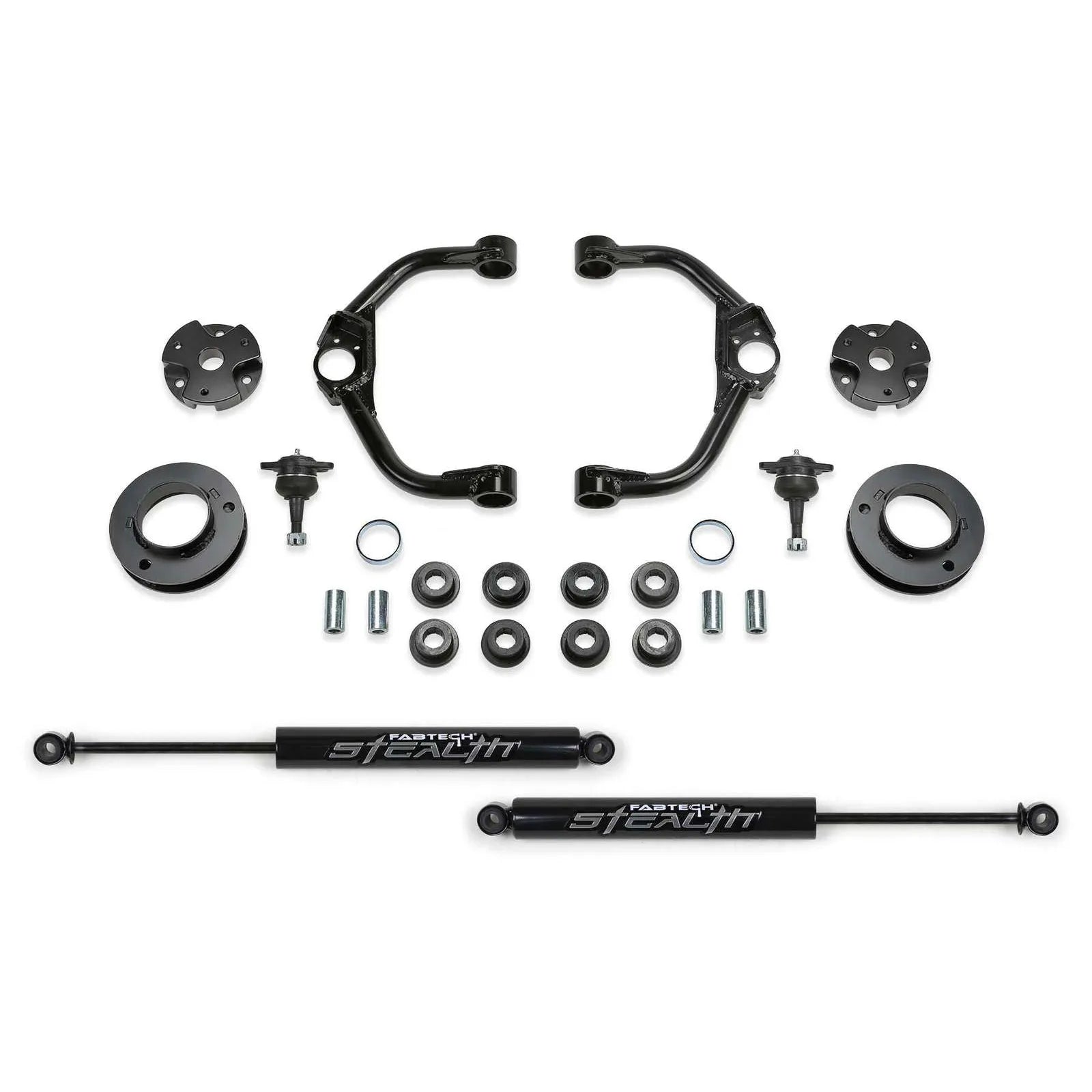

What's Included:
- Fabtech tubular steel upper control arms with heavy-duty ball joints
- Front coilover shock steel spacer
- Coil spring collar for front suspension
- Rear coil spring spacer
- Fabtech Stealth monotube shocks with Nitrocarb piston rods
- All necessary hardware for installation
Ideal For:
This lift kit is perfect for Ram 1500 owners who want a moderate 3-inch lift that enhances off-road capability without sacrificing daily drivability. It suits enthusiasts looking to run larger 35-inch tires while maintaining factory-like ride quality and steering performance. Whether tackling rugged trails or cruising on the highway, this system provides strength, reliability, and improved vehicle stance.
