Fabtech Radius Arm Kit
2019–2021 Ram 2500 / 2020 Ram 3500
K3180M
Overview:
The Fabtech Radius Arm Kit is a comprehensive suspension upgrade designed specifically for Ram 2500 models from 2019 to 2021 and Ram 3500 models from 2020. This kit enhances the factory suspension geometry by replacing the stock radius arms with Fabtech’s signature tubular radius arms, engineered for superior strength and improved caster angle. Ideal for enthusiasts looking to run oversized tires and lifted suspension setups, this kit delivers a smoother, more controlled ride without compromising load-carrying capacity.
Fabtech’s innovative coil spring design addresses the harsh ride and nervous suspension feel common in stock Ram front suspensions. By replacing the factory bowed coil springs with straight vertical coils mounted on patented angled spring seats, the kit provides a more supple ride quality while maintaining the vehicle’s heavy-duty performance. The rear suspension benefits from a dual-rate coil spring setup that balances comfort and load handling for everyday driving and heavy hauling.
Key Features:
This Radius Arm Kit combines advanced engineering and durable materials to optimize suspension performance and vehicle handling. Key features include:
- Fabtech’s trademark tubular radius arms with dimple die side plates for enhanced strength and increased caster angle
- Front straight coil springs paired with patented angled spring mounts to eliminate spring bow and reduce harshness
- Heavy-duty 1/4" thick steel front and rear track bar drop brackets to properly center axles under the vehicle at lifted heights
- Dual-rate rear coil springs that provide a smooth highway ride and progressive support under heavy loads
- Fabtech-exclusive heavy-duty steel front bump extensions that retain factory bump stop cushions for progressive damping and prevent suspension overtravel
- Compatibility with 37-inch tires on 17", 18", and 20" wheels with minor trimming
- Designed to maintain factory load carrying capacity and suspension geometry for lifted Ram 2500 and 3500 trucks
Construction & Design:
Fabtech’s Radius Arm Kit is built with rugged, high-strength materials to withstand the demands of lifted and off-road Ram trucks. The tubular radius arms feature dimple die side plates, a hallmark of Fabtech’s quality and engineering, providing superior rigidity and durability compared to stock components. The coil springs are redesigned with a straight vertical configuration, supported by Fabtech’s patented angular spring mounts that modify the lower spring seat without altering the factory mounting points. This design innovation reduces spring bow, allowing for a lower spring rate and improved ride comfort without sacrificing load capacity.
Steel track bar drop brackets are fabricated from 1/4" thick steel to ensure precise axle alignment at increased ride heights. The front bump extensions are crafted from heavy-duty steel to preserve the factory bump stop cushions, offering progressive suspension damping and preventing suspension overtravel under extreme conditions.
Installation & Fitment:
The Fabtech Radius Arm Kit is engineered for direct fitment on select Ram 2500 and 3500 models, requiring minor trimming for optimal tire clearance when running 37-inch tires on 17", 18", or 20" wheels with a 5" backspacing. Installation involves replacing the factory radius arms, coil springs, and track bar brackets, along with mounting the patented angled spring seats. The kit is designed to work with the factory coil spring seats and bump stops, preserving the original suspension characteristics while improving ride quality and performance.
Note that this kit does not fit standard cab models, vehicles with factory air suspension, gas engine variants, or Power Wagon models beyond 2020.

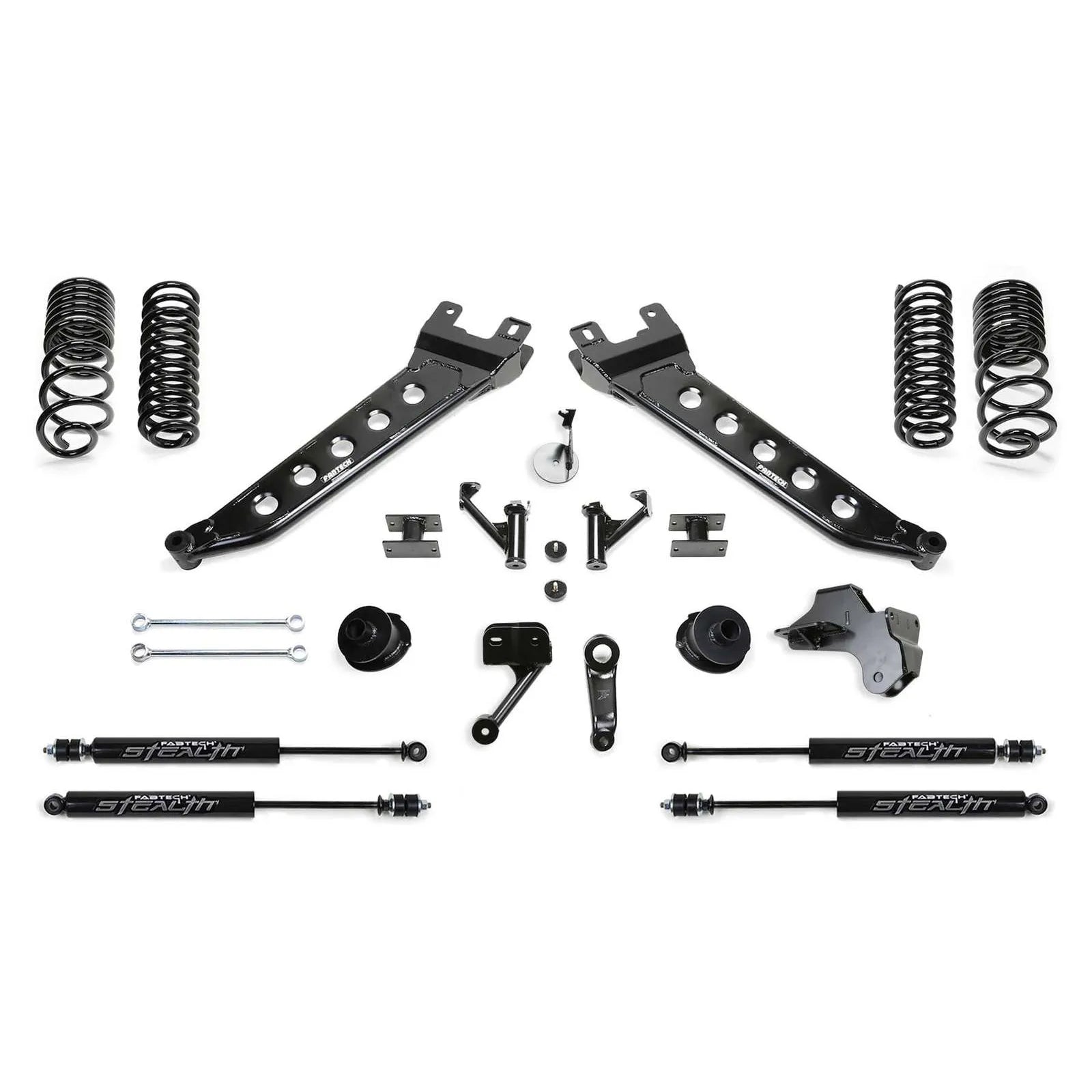

What's Included:
- Fabtech tubular radius arms with dimple die side plates
- Front straight coil springs with patented angled spring mounts
- Dual-rate rear coil springs
- Heavy-duty 1/4" steel front and rear track bar drop brackets
- Heavy-duty steel front bump extensions
- All necessary hardware for installation
Ideal For:
This Radius Arm Kit is perfect for Ram 2500 and 3500 owners who want to upgrade their suspension for lifted applications with oversized tires while maintaining factory load capacity and improving ride comfort. It is especially suited for off-road enthusiasts, heavy-duty truck users, and anyone seeking enhanced suspension geometry and durability without sacrificing daily drivability.
Fabtech is an off-road suspension leader producing lift kits, shocks, and related components to increase ride height, clear larger tires, and improve capability. Their systems are engineered for specific trucks and SUVs, blending on-road drivability with the added travel and strength enthusiasts want for trails, desert runs, and overland builds.
Fabtech Radius Arm Kit: Ram 2500 (2019-2021) / 3500 (2020) w/ Stealth
- Unit price
- /per
What does the Available to Promise date mean?
ETA stands for Estimated Time of Arrival. The date shown is calculated using our Available-to-Promise (ATP) system, which tracks real-time supplier commitments to determine when a product is expected to be available for delivery. Specifically, the date is calculated by adding 9 business days from the date a supplier has committed to ship the product, representing a worst-case scenario for when we can expect to receive inventory.
Please note: The ETA is an estimate, not a guarantee. While we work closely with our suppliers to keep dates as accurate as possible, delays due to shipping carriers, weather, customs, or supplier-side issues may occasionally push the actual arrival beyond the date shown. Likewise, inventory may arrive sooner than the ETA in many cases. If you would like to be notified for when this item arrives, sign up for our back in stock notifications!
K3180M Fabtech Ram 2500 (2019-2021) / 3500 (2020) w/ Stealth Radius Arm Kit. The Fabtech Radius Arm Kit enhances suspension performance with durable tubular arms and patented straight coil springs for a smoother ride. Designed for 2019-2021 Ram 2500 and 2020 Ram 3500 models, it improves caster angle and supports oversized tires while maintaining load capacity. Heavy-duty track bar drop brackets ensure proper axle alignment at lifted heights, delivering reliable handling and comfort for serious Ram enthusiasts.
