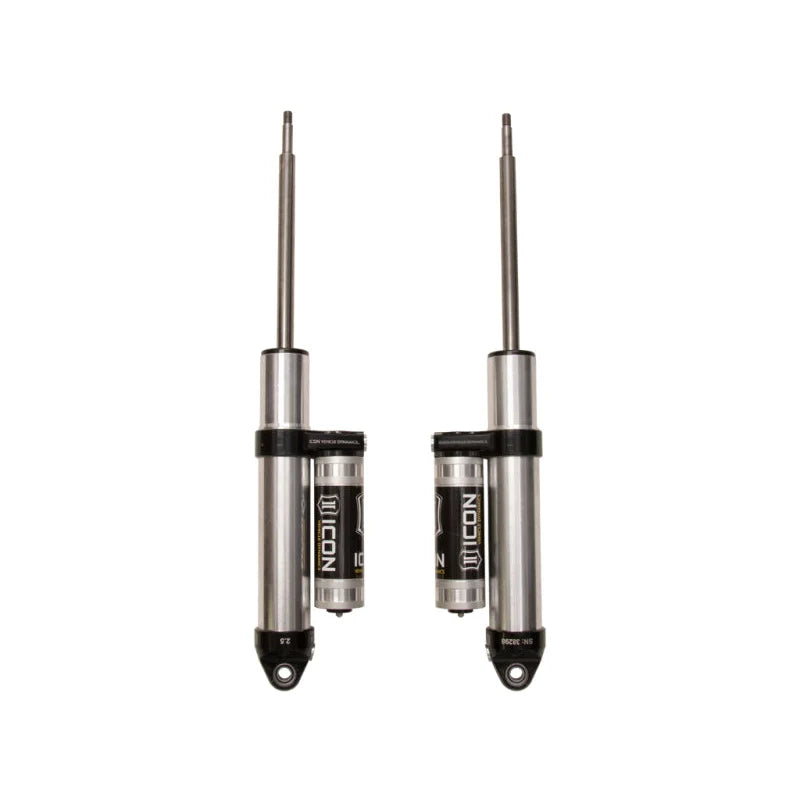

ICON 2.5 Series Air Ride Rear Shocks (PAIR)
2014–2022 Ram 2500
217708P
Overview:
The ICON 2.5 Series Air Ride Rear Shocks are precision-engineered suspension components designed specifically for the Ram 2500 models from 2014 through 2022. These shocks deliver exceptional off-road capability while maintaining a smooth, controlled ride on paved roads. Built with vehicle-specific valving and length, they optimize suspension performance to handle the unique demands of heavy-duty trucks equipped with air ride rear suspensions.
Ideal for Ram 2500 owners seeking enhanced ride quality and durability, these shocks provide superior damping control to improve handling, reduce harsh bottom-outs, and maintain stability over rough terrain. Their rebuildable and revalveable design ensures long-term serviceability and customization to suit individual driving preferences.
Key Features:
Engineered for both rugged off-road use and comfortable street driving, the ICON 2.5 Series Rear Shocks incorporate advanced technology and premium materials:
- Vehicle-specific valving and length for optimized performance on Ram 2500 air ride rear suspensions
- Unique internal “Bump Zone” created by a 6061 billet aluminum manifold increases damping force by 20% to prevent harsh bottom-outs
- One-piece digressive piston design for consistent and responsive damping
- Remote piggyback reservoir improves heat dissipation to reduce shock fade during extended use
- Premium 5WT shock oil maintains consistent damping across a wide temperature range
- 7/8” diameter induction hardened, chrome-plated shock shaft for durability and smooth operation
- Polyurethane bushings and forged steel mounting stems ensure OE factory-type fitment and long-lasting performance
- PTFE-lined spherical bearings with application-specific mounting hardware for precise articulation
- 100% rebuildable and revalveable for extended service life and tuning flexibility
- Nitrogen charged monotube design with piggyback reservoir for superior heat management and shock response
Construction & Design:
ICON’s 2.5 Series Rear Shocks are crafted from high-grade 6061 aircraft aluminum, CNC machined for precision and strength. The one-piece impact-extruded aluminum cylinders provide excellent corrosion resistance and a consistent finish, ensuring durability in harsh environments. The internal components are engineered for smooth, reliable operation, while the nitrogen-charged monotube design enhances heat dissipation and shock fade resistance.
The piggyback reservoir, connected via a billet aluminum manifold, creates an internal “Bump Zone” that adds extra damping force during high-velocity compression, preventing harsh bottom-outs and improving suspension control. This advanced design allows the shocks to perform exceptionally well under demanding off-road conditions while maintaining comfort on the street.
Installation & Fitment:
These ICON 2.5 Series Rear Shocks are designed for direct bolt-on installation on Ram 2500 trucks equipped with air ride rear suspensions from model years 2014 to 2022. They fit a wide range of trims including Big Horn, Laramie, Laramie Limited (2014–2015), Laramie Longhorn, Limited (2016–2022), Limited Longhorn (2021–2022), Lone Star (2014–2015, 2019–2022), Outdoorsman (2014–2016), Power Wagon (2014–2020), SLT (2014–2018), and Tradesman.
No major modifications are required, and the shocks come with all necessary hardware for a straightforward installation process. Professional installation is recommended to ensure optimal performance and safety.
What's Included:
- Pair of ICON 2.5 Series Air Ride Rear Shocks
- Application-specific mounting hardware
- PTFE-lined spherical bearings
- Installation instructions
Ideal For:
These shocks are perfect for Ram 2500 owners who demand a balance of off-road capability and on-road comfort. Whether you use your truck for heavy-duty work, towing, or weekend adventures, ICON’s 2.5 Series Rear Shocks provide enhanced suspension control, durability, and ride quality. They are especially suited for those who want a rebuildable and tunable shock option that can adapt to changing driving conditions and preferences.
