ICON Stage 1 Suspension System: Dodge Ram 2500 (03-10) / Ram 2500 (11-12) / Dodge Ram 3500 (03-10) / Ram 3500 (11-12)

ICON Stage 1 Suspension System

2003–2012 Dodge Ram 2500 / Dodge Ram 3500

K214500T

Overview:

The ICON Stage 1 Suspension System is a premium lift kit designed specifically for 2003 to 2012 Dodge Ram 2500 and 3500 models. This system offers a 4.5-inch lift, providing increased ground clearance and improved off-road capability while maintaining a smooth and controlled ride on the highway. Engineered to enhance both performance and durability, the Stage 1 system is ideal for drivers who require a reliable suspension upgrade for towing, construction sites, rough terrain, or everyday driving.

Built with advanced technology derived from ICON’s 2.5-inch systems, this Stage 1 kit adds additional lift height without compromising steering geometry or suspension travel. It ensures proper alignment and handling throughout the entire range of motion, whether on or off the road.

Key Features:

The ICON Stage 1 Suspension System combines robust components and innovative design to deliver superior performance and reliability. Key features include:

• 4.5-inch lift height for enhanced ground clearance and tire clearance
• Dual rate coil springs for improved ride quality and load handling
• Tubular steel upper and lower link arms to increase strength and reduce bushing bind
• Polyurethane bump stops with billet extensions for extended suspension travel
• Sway bar drop brackets to maintain proper sway bar geometry
• Forged pitman arm for precise steering response
• Track bar drop bracket to correct axle positioning
• Rear 2.5-inch lift blocks with heavy-duty U-bolts for solid rear lift
• 2.0 Aluminum Series smooth body shocks tuned for balanced on- and off-road performance
• Engineered front-end components to preserve steering geometry and improve function

Construction & Design:

Every component in the ICON Stage 1 Suspension System is crafted from high-quality materials to ensure durability and long-lasting performance. The tubular steel upper and lower link arms provide increased strength and reduce the binding commonly found in factory link bushings, resulting in smoother articulation and improved alignment range. Polyurethane bump stops with billet extensions protect suspension components and allow for greater travel without damage.

The system’s aluminum series shocks feature a smooth body design that balances damping for both highway comfort and off-road control. Forged and precision-machined parts like the pitman arm and sway bar brackets contribute to the system’s robust build quality and reliable steering performance.

Installation & Fitment:

The ICON Stage 1 Suspension System is designed for direct bolt-on installation on 2003–2010 Dodge Ram 2500/3500 and 2011–2012 Ram 2500/3500 models. The kit ships in multiple boxes and includes all necessary hardware and components for a complete lift installation. No major modifications are required, and the system allows for proper clearance of 35-inch tires without trimming. Some 37-inch tires may fit with minor fender well trimming.

This system is an excellent choice for those seeking a balance between lifted off-road capability and smooth highway driving, making it suitable for towing and rough terrain alike.

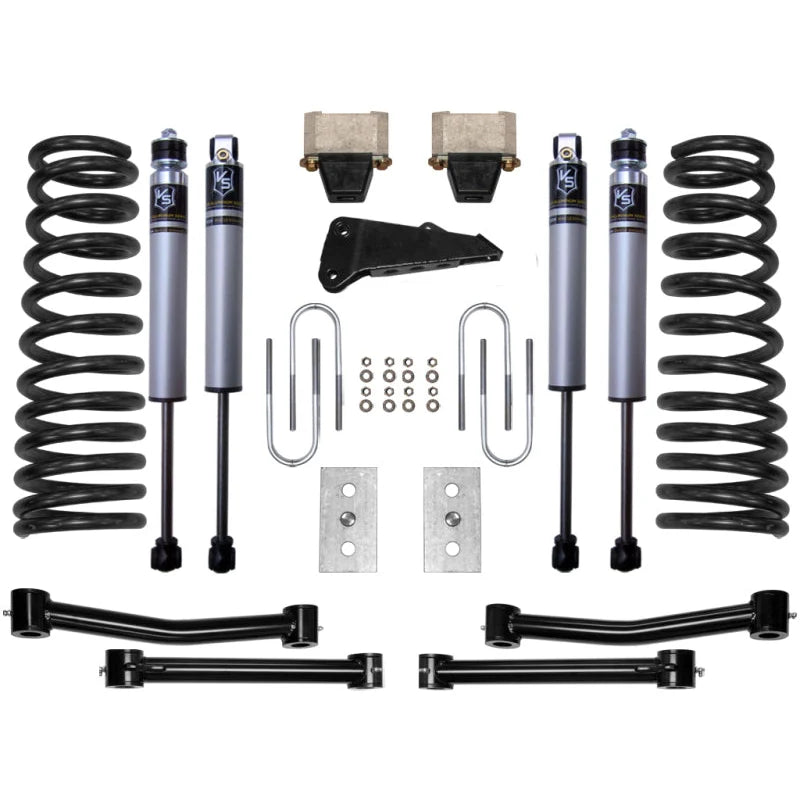

What's Included:

• Dual rate coil springs
• Tubular steel upper and lower link arms
• Polyurethane bump stops with billet extensions
• Sway bar drop brackets
• Forged pitman arm
• Track bar drop bracket
• Rear 2.5-inch lift blocks with U-bolts
• 2.0 Aluminum Series smooth body shocks
• All necessary mounting hardware

Ideal For:

The ICON Stage 1 Suspension System is perfect for Dodge Ram 2500 and 3500 owners who need a reliable, durable lift kit that enhances off-road capability and towing performance without sacrificing daily drivability. It excels on rough construction sites, country dirt roads, and challenging off-road trails, while maintaining a smooth and controlled ride on highways.
