KC HiLiTES Gravity LED Fog Lights

2010–2018 Jeep Wrangler JK

Part #: 497

Overview

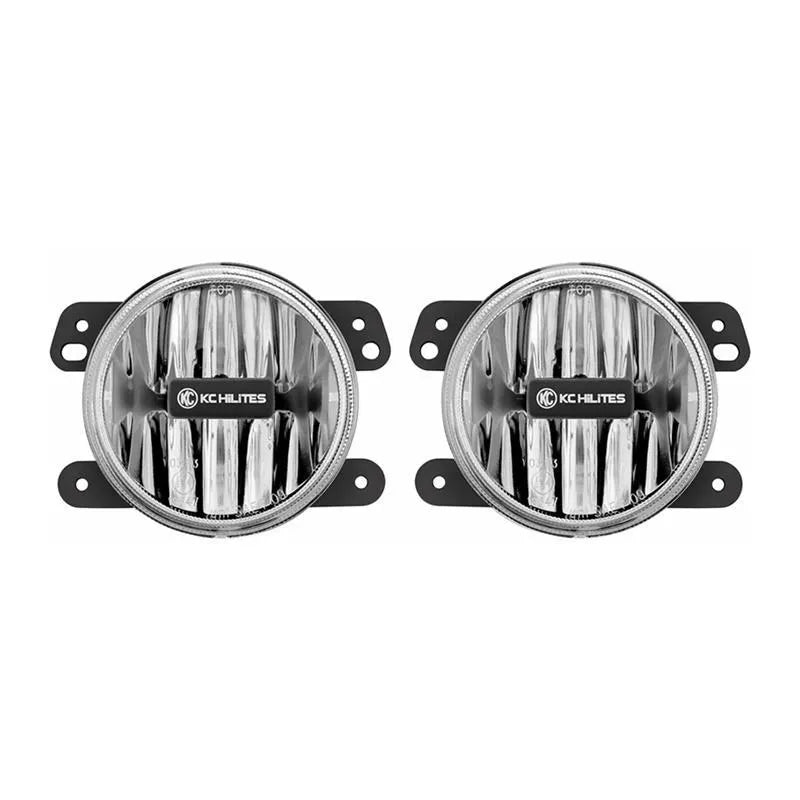

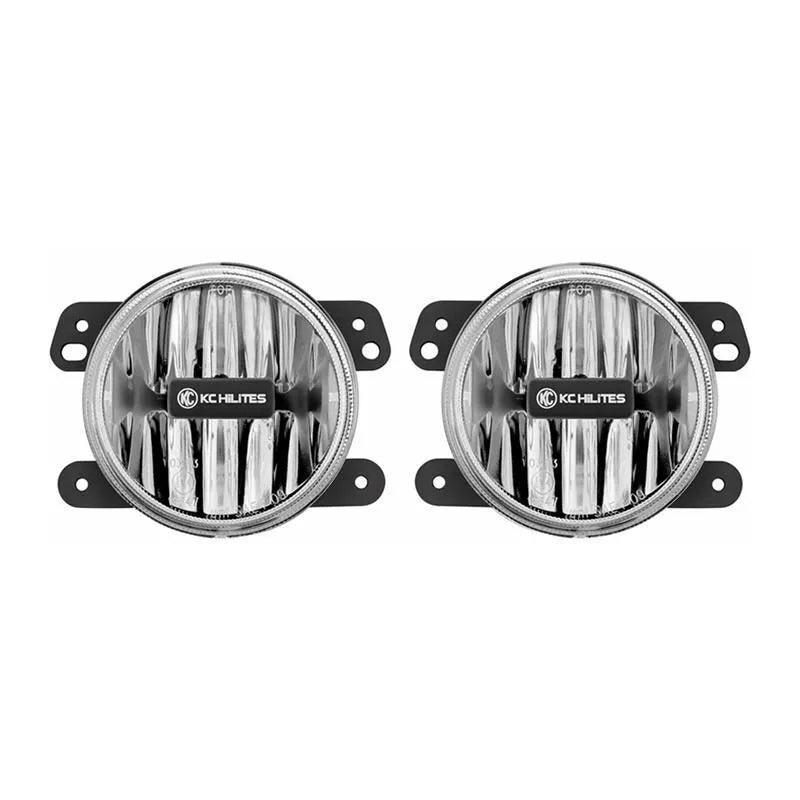

The KC HiLiTES 4" Gravity LED G4 Fog Lights are engineered specifically for Jeep Wrangler JK models from 2010 to 2018. Designed to enhance visibility in adverse weather conditions such as fog, rain, snow, and dust, these fog lights deliver a powerful and precise beam pattern that improves short-range illumination without blinding oncoming traffic. Ideal for off-road enthusiasts and daily drivers alike, these lights combine advanced LED technology with rugged construction to provide reliable performance and long-lasting durability.

With a lightweight magnesium housing and shatter-resistant polycarbonate lens, these fog lights are built to withstand harsh environments while maintaining optimal heat dissipation. The Gravity LED G4 lights are street legal, meeting SAE J583 and ECE-R19 standards, making them a practical upgrade for Jeep owners seeking both style and function.

Key Features

KC HiLiTES Gravity LED Fog Lights incorporate cutting-edge technology and thoughtful design to deliver exceptional lighting performance and durability. Key features include:

• Two 10W 4" Gravity LED fog lights per set, each powered by high-quality CREE LEDs
• Patented Gravity Reflective Diode (GRD) system that directs light into precision reflectors for maximum output and efficiency
• Fog beam pattern optimized for low, wide-angle illumination to enhance visibility in fog, dust, rain, and snow
• Raw lumen output of 866 lumens per light with a beam distance of up to 245 meters
• Street legal compliance with SAE J583 and ECE-R19 standards
• Lightweight magnesium housing for superior heat dissipation and corrosion resistance
• Shatter-resistant polycarbonate lens for impact protection and long service life
• Adjustable mounting system for precise horizontal aiming and consistent beam alignment
• IP69-rated for dust and water ingress protection, ensuring reliable operation in extreme conditions
• Compatible with 9V to 32V electrical systems, drawing only 0.74 amps per light

Construction & Design

The KC HiLiTES Gravity LED Fog Lights feature a robust magnesium housing that excels at dissipating heat generated by the LEDs, extending the lifespan of the lighting components. The housing is sealed with a tough polycarbonate lens that resists shattering and protects the internal electronics from debris and moisture. Rated IP69, these lights are fully sealed against dust and high-pressure water, making them suitable for off-road adventures and harsh weather conditions.

The innovative Gravity Reflective Diode system integrates patented optical reflectors that capture and focus every bit of light output, projecting a powerful and precise fog beam. The adjustable mounting brackets allow for easy installation and fine-tuning of the beam angle to ensure optimal road illumination without glare.

Performance & Sound

Each 10W LED fog light produces 866 raw lumens with a color temperature of 5000K, delivering bright white light that enhances visibility and reduces eye strain during nighttime or low-visibility driving. The beam intensity reaches 150 lux at 10 meters, with a candela rating of 15,000 cd, projecting a clear and consistent beam up to 245 meters ahead. The low amp draw of 0.74A per light ensures efficient power consumption without compromising brightness.

Installation & Fitment

Designed specifically for Jeep Wrangler JK models from 2010 through 2018, these fog lights bolt directly onto the original equipment bumper mounts and utilize the factory fog light wiring harness for a seamless installation experience. The included universal adjustable brackets allow for precise horizontal aiming to achieve the best beam pattern and road coverage. Installation requires no major modifications, making it a straightforward upgrade for Jeep owners seeking improved fog lighting.

What's Included

• Two 10W 4" Gravity G4 LED fog lights
• Universal adjustable mounting brackets

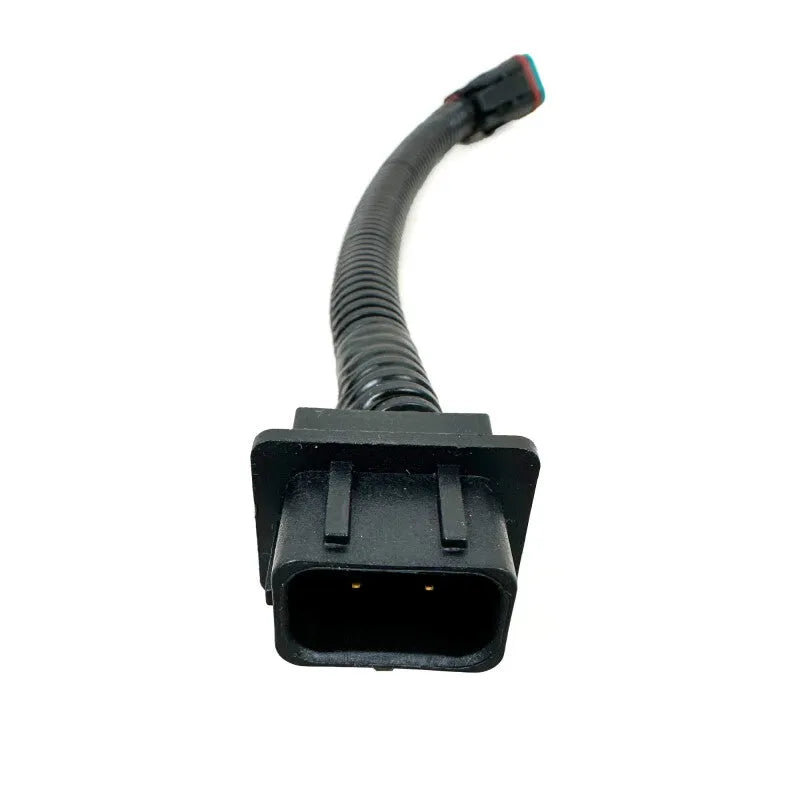

• Deluxe wiring harness with 2-pin weatherproof connectors
• 30A LED switch with panel mount

Ideal For

These KC HiLiTES Gravity LED Fog Lights are perfect for Jeep Wrangler JK owners who demand enhanced visibility and safety in challenging weather and off-road conditions. Whether navigating foggy mountain trails, rainy city streets, or dusty desert roads, these fog lights provide reliable illumination that helps you see and be seen. They are also an excellent choice for enthusiasts looking to upgrade their vehicle’s lighting system with durable, street-legal LED technology.

KC HiLiTES is an off-road lighting pioneer, producing auxiliary lighting solutions for trucks, Jeeps, SUVs, and powersports rigs. From trail-ready LED light bars to driving and spot patterns, KC products are built for durability and visibility when the terrain (and the darkness) gets serious.
