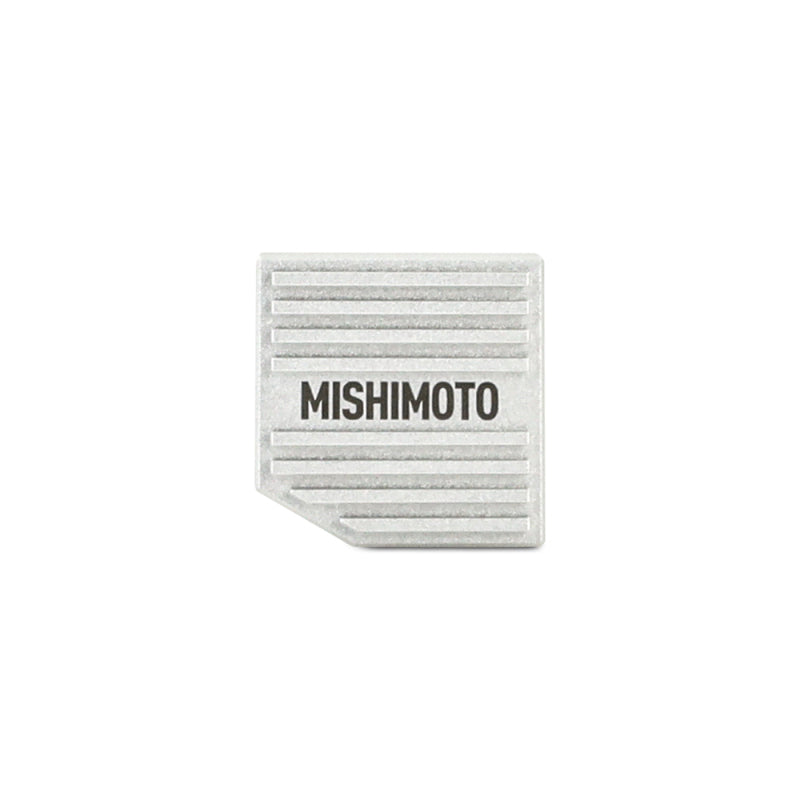

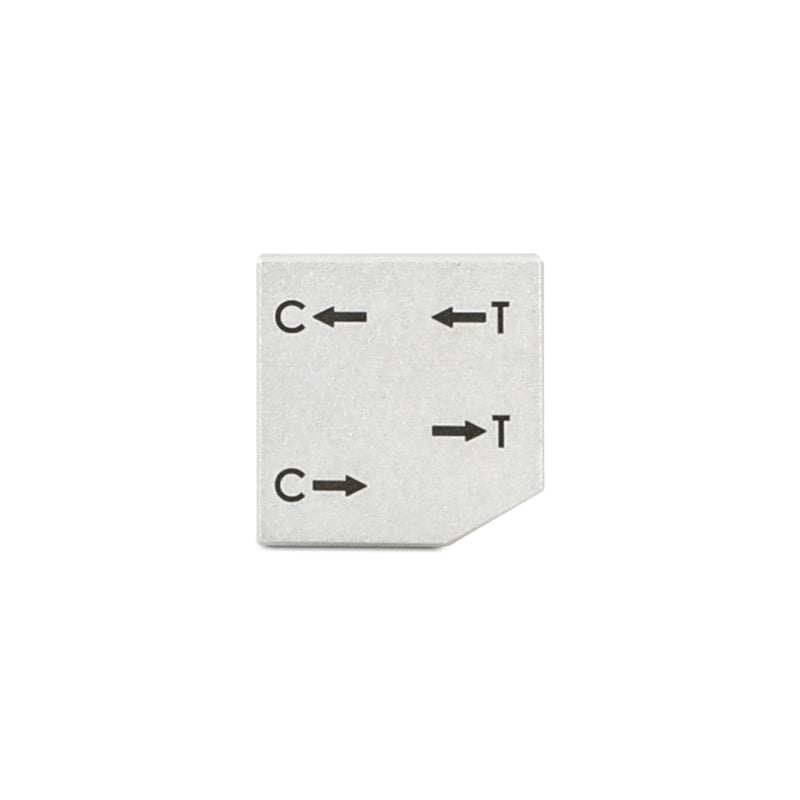

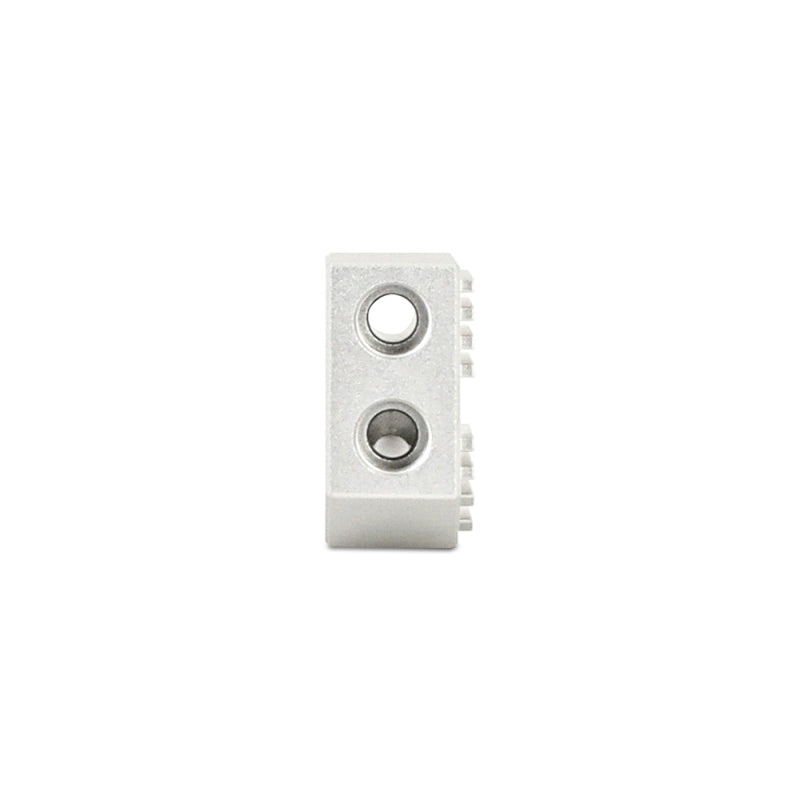

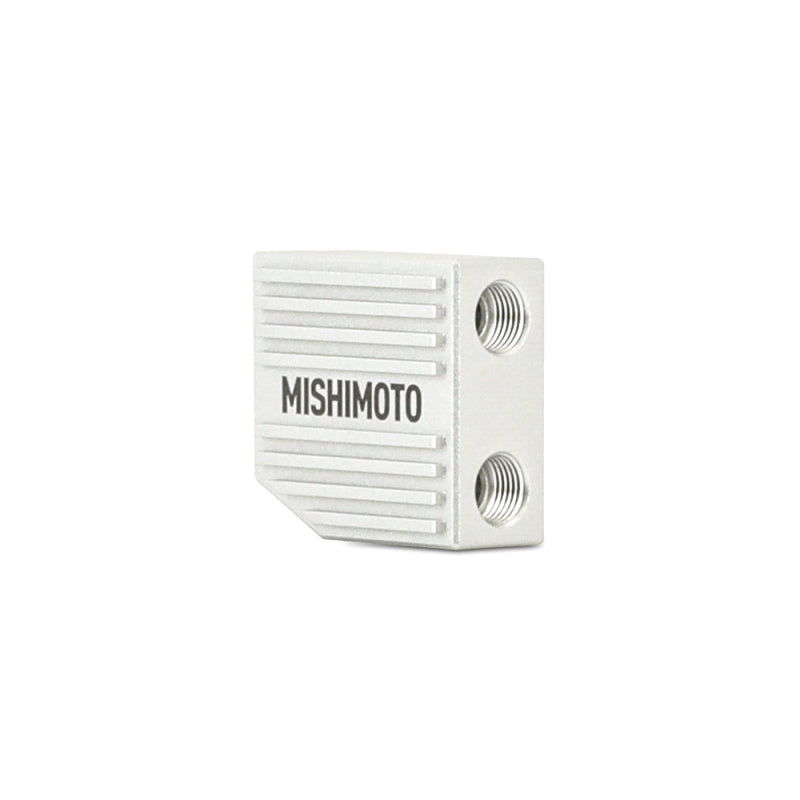

Mishimoto Thermal Bypass Valve Upgrade

2005–2020 Chrysler, Dodge, Jeep, Ram Models Various Engines

Part #: MMTC-JK-TBVFF

Overview

The Mishimoto Thermal Bypass Valve Upgrade is a precision-engineered direct-fit replacement designed to improve the transmission cooling system on a wide range of Chrysler, Dodge, Jeep, and Ram vehicles from 2005 to 2020. This upgrade replaces the factory thermostatic bypass valve, a common failure point that can cause transmission overheating or restricted fluid flow. By enabling full-flow transmission fluid circulation through the cooler immediately at startup, it ensures optimal temperature regulation for enhanced transmission durability and performance.

Ideal for drivers who frequently tow, operate in hot climates, or demand reliable transmission cooling under extreme conditions, this valve eliminates the risk of overheating caused by a stuck or malfunctioning stock valve. It provides consistent fluid flow without the flow restrictions inherent to the factory design, promoting longer transmission life and improved vehicle reliability.

Key Features

The Mishimoto Thermal Bypass Valve Upgrade delivers a robust solution to transmission cooling challenges with these key features:

• Full-flow design allows continuous transmission fluid circulation through the cooler from engine start
• Eliminates the failure-prone thermostatic bypass valve found in stock systems
• All-aluminum CNC-machined housing for superior durability and enhanced heat dissipation
• Improves transmission cooling efficiency, especially in hot climates and under heavy load conditions
• Direct-fit replacement requiring no modifications to transmission cooler lines or vehicle wiring
• Compatible with a broad range of Chrysler, Dodge, Jeep, and Ram vehicles from 2005 to 2020
• Reduces the risk of transmission overheating and extends transmission life
• Backed by Mishimoto’s industry-leading Lifetime Warranty

Construction & Design

Crafted from high-quality aluminum, the Mishimoto Thermal Bypass Valve Upgrade features precision CNC machining to ensure a perfect fit and reliable operation. The all-metal construction not only enhances durability but also improves heat transfer away from the transmission fluid, aiding in effective temperature regulation. By removing the internal thermostat mechanism present in the stock valve, this design eliminates a common failure point and flow restriction. This robust engineering guarantees consistent fluid flow through the cooler regardless of ambient temperature, providing dependable transmission protection in all driving conditions.

Installation & Fitment

This upgrade is engineered as a direct-fit replacement for the factory thermal bypass valve, allowing for straightforward installation in under one hour using basic hand tools. No modifications to transmission cooler lines or vehicle wiring are necessary, making it a hassle-free upgrade. The valve fits the following vehicles and engine configurations:

• Chrysler 300 (2005–2014) – 2.7L, 3.5L V6, 3.6L V6, 5.7L Hemi, 6.1L SRT8, 6.4L 392
• Dodge Magnum (2005–2008) – 2.7L, 3.5L V6, 5.7L Hemi, 6.1L SRT8
• Dodge Charger (2006–2019) – 2.7L, 3.5L V6, 3.6L V6, 5.7L Hemi, 6.1L SRT8, 6.4L 392
• Dodge Challenger (2008–2014)
• Dodge Durango (2011–2013)
• Jeep Grand Cherokee (2007–2013) – 3.0L V6, 3.6L V6, 3.7L V6, 4.7L V8, 5.7L Hemi, 6.1L SRT8, 6.4L SRT8
• Jeep Commander (2009–2010)
• Jeep Wrangler (2012–2018) – 3.6L V6
• Jeep Wrangler JK (2018)
• Ram 1500 (2012–2020) – 4.7L V8, 5.7L Hemi
• Ram 2500 (2012–2013) – 5.7L Hemi

What's Included

• One Mishimoto Thermal Bypass Valve with all-aluminum CNC-machined housing
• Installation hardware and seals
• Detailed installation instructions

Ideal For

This thermal bypass valve upgrade is perfect for vehicle owners who:

• Operate their vehicles in hot or extreme climates where transmission cooling is critical
• Tow heavy loads or frequently drive under demanding conditions
• Own Chrysler, Dodge, Jeep, or Ram models within the specified year ranges and want to prevent transmission overheating
• Seek a reliable, maintenance-free upgrade to replace the factory bypass valve prone to failure
• Desire improved transmission longevity and consistent cooling performance
