PPE MicroPure XR Engine Oil Filter: Dodge Ram (89-25)

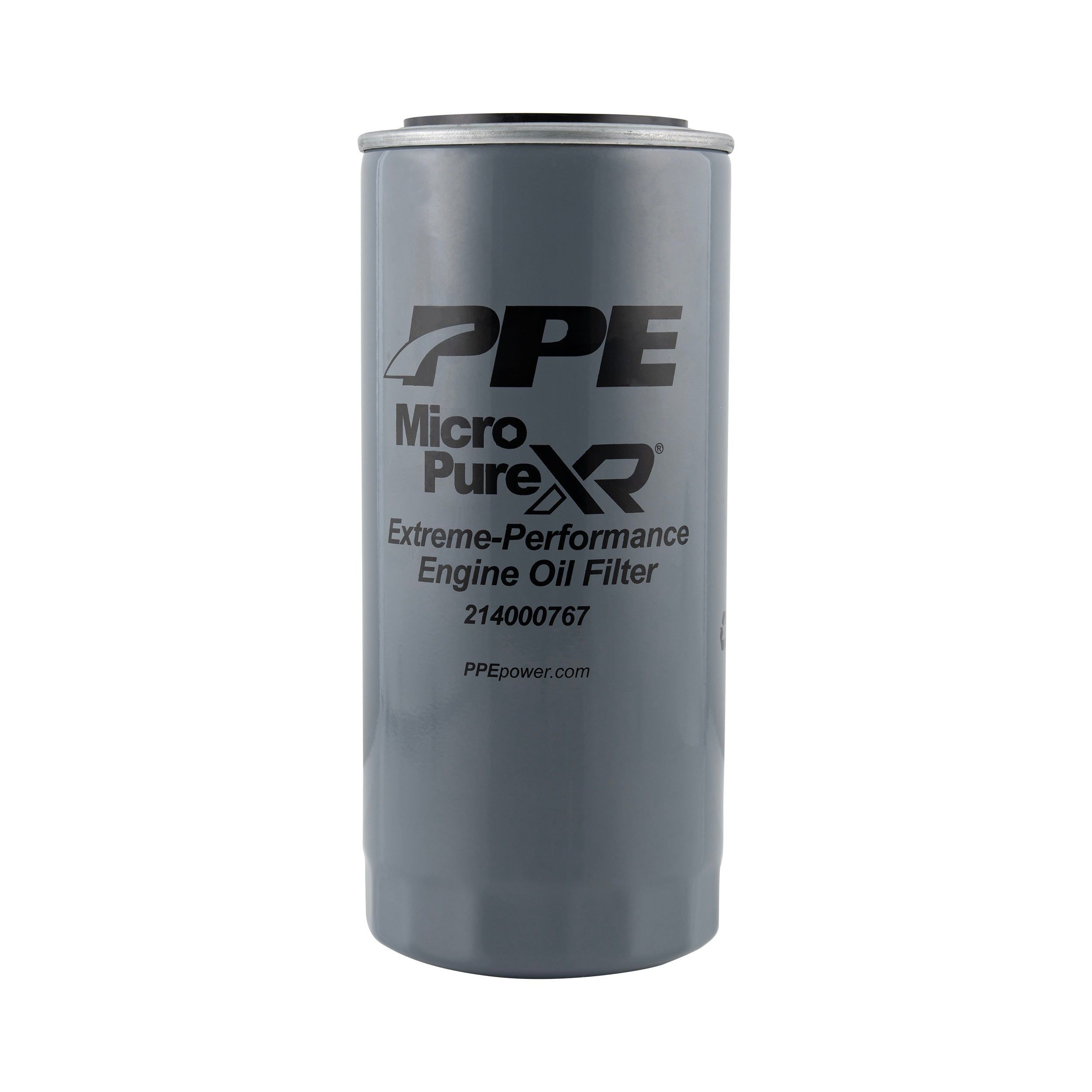

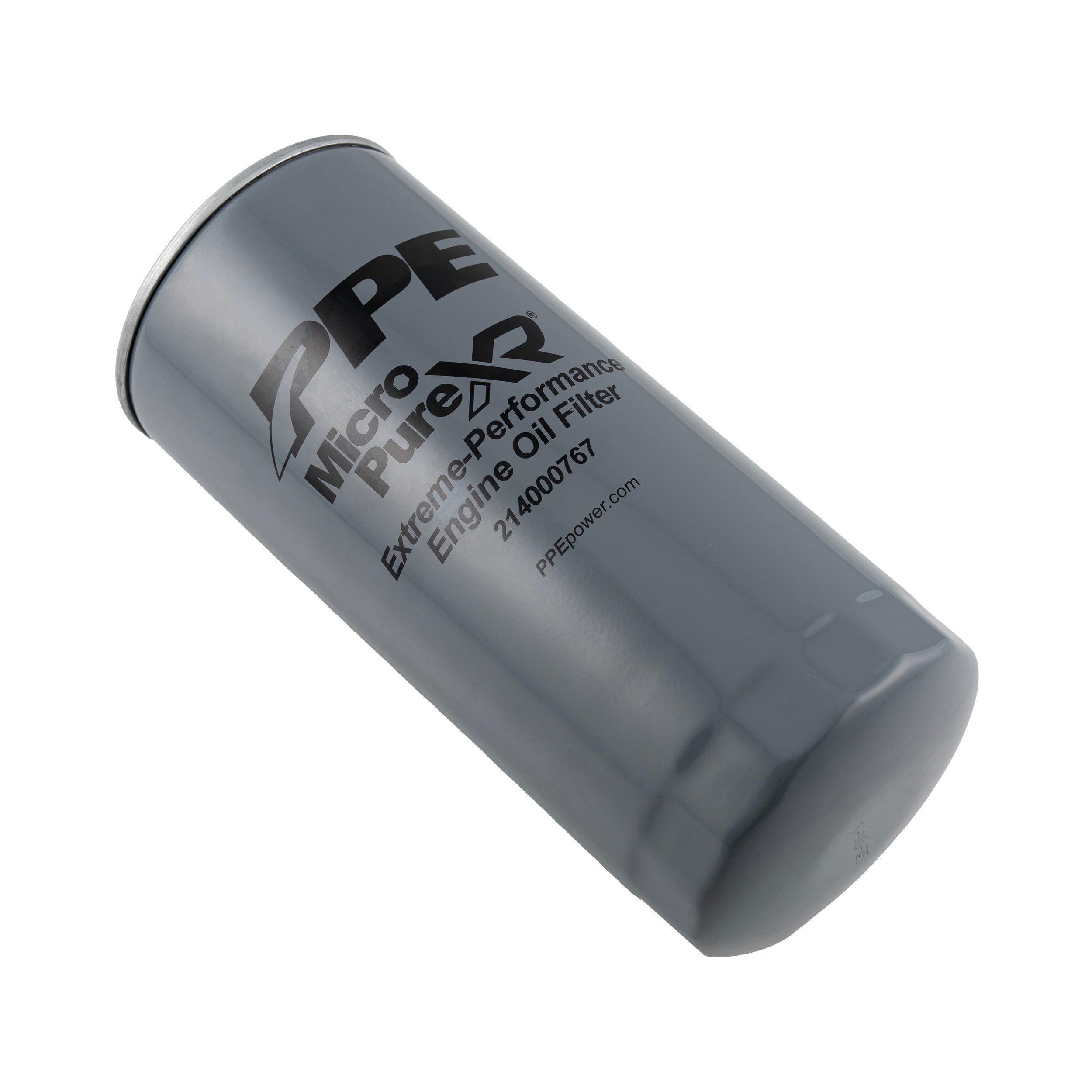

PPE MicroPure XR Engine Oil Filter

1989–2025 Dodge Ram with Cummins Engine

214000767

Overview:

The PPE MicroPure XR Engine Oil Filter is a premium replacement designed specifically for Dodge Ram trucks equipped with Cummins engines from 1989 through 2025. Engineered to provide superior filtration and protection, this oil filter is ideal for owners seeking to extend engine life and maintain optimal oil performance under demanding conditions. By upgrading from the OEM filter, the PPE MicroPure XR offers enhanced contaminant capture, improved seal integrity, and robust construction to safeguard your engine’s vital components.

Designed for both daily drivers and heavy-duty users, this filter ensures cleaner oil circulation, reducing premature wear and potential engine damage caused by contaminants and metal particles. The PPE MicroPure XR is a reliable choice for those who demand consistent engine protection and longer oil change intervals.

Key Features:

The PPE MicroPure XR Engine Oil Filter incorporates advanced technology and thoughtful engineering to deliver outstanding filtration performance:

• 530 square inches of filtration media area, a 15% increase over the OEM filter’s 460 square inches
• Ultra-fine synthetic microfiber MicroPure XR® media with a 5-micron nominal rating for superior contaminant capture
• Integrated high-temperature neodymium magnet to attract and trap ferrous particles, preventing media clogging
• Heavy-duty coil spring ensures a secure seal between the media end cap and base plate, eliminating dirty oil blow-by
• Steel-NBR poppet valve with precision coil spring for a sealed bypass valve, ensuring consistent filtration under all conditions
• Heat-resistant silicone anti-drainback valve retains oil in the filter after shutdown, protecting against dry starts

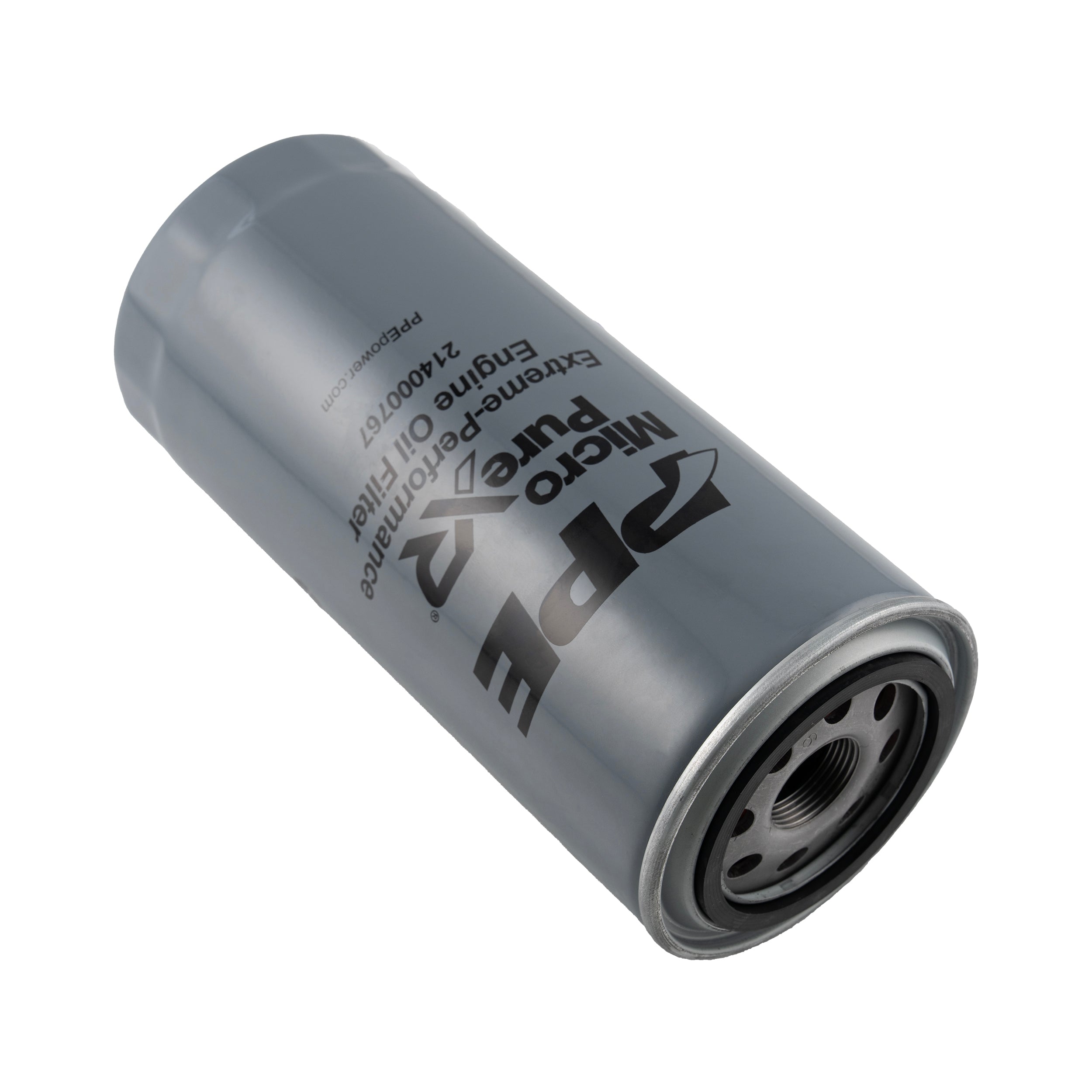

• High-strength steel base plate with increased thread engagement and large oil passages for improved durability and flow
• Durable metal center tube provides rigid media support and pressure resistance
• TorqSTOP Technology prevents over-tightening and reinforces the rubber gasket, enabling a burst pressure rating of 450 PSI
• Integrated pleat-locking spiral bead adhesive keeps filter media pleats evenly spaced for consistent filtration

Construction & Design:

The PPE MicroPure XR filter is built to withstand the rigors of heavy-duty use and extended service intervals. Its high-strength steel base plate features increased thread engagement for secure installation and large oil passages that promote optimal oil flow. The metal center tube reinforces the filter media, preventing collapse under high pressure and ensuring consistent filtration performance.

The filter media itself is a specially engineered synthetic microfiber blend, designed to capture contaminants as small as 5 microns, significantly finer than the OEM 20-micron rating. This advanced media is supported by a pleat-locking spiral bead adhesive that maintains pleat spacing and structural integrity throughout the filter’s service life.

Additional design enhancements include a heavy-duty coil spring for a reliable seal, a steel-NBR poppet valve for a sealed bypass, and a heat-resistant silicone anti-drainback valve to maintain oil presence after engine shutdown. The integrated neodymium magnet further protects the engine by capturing ferrous debris before it can circulate.

Installation & Fitment:

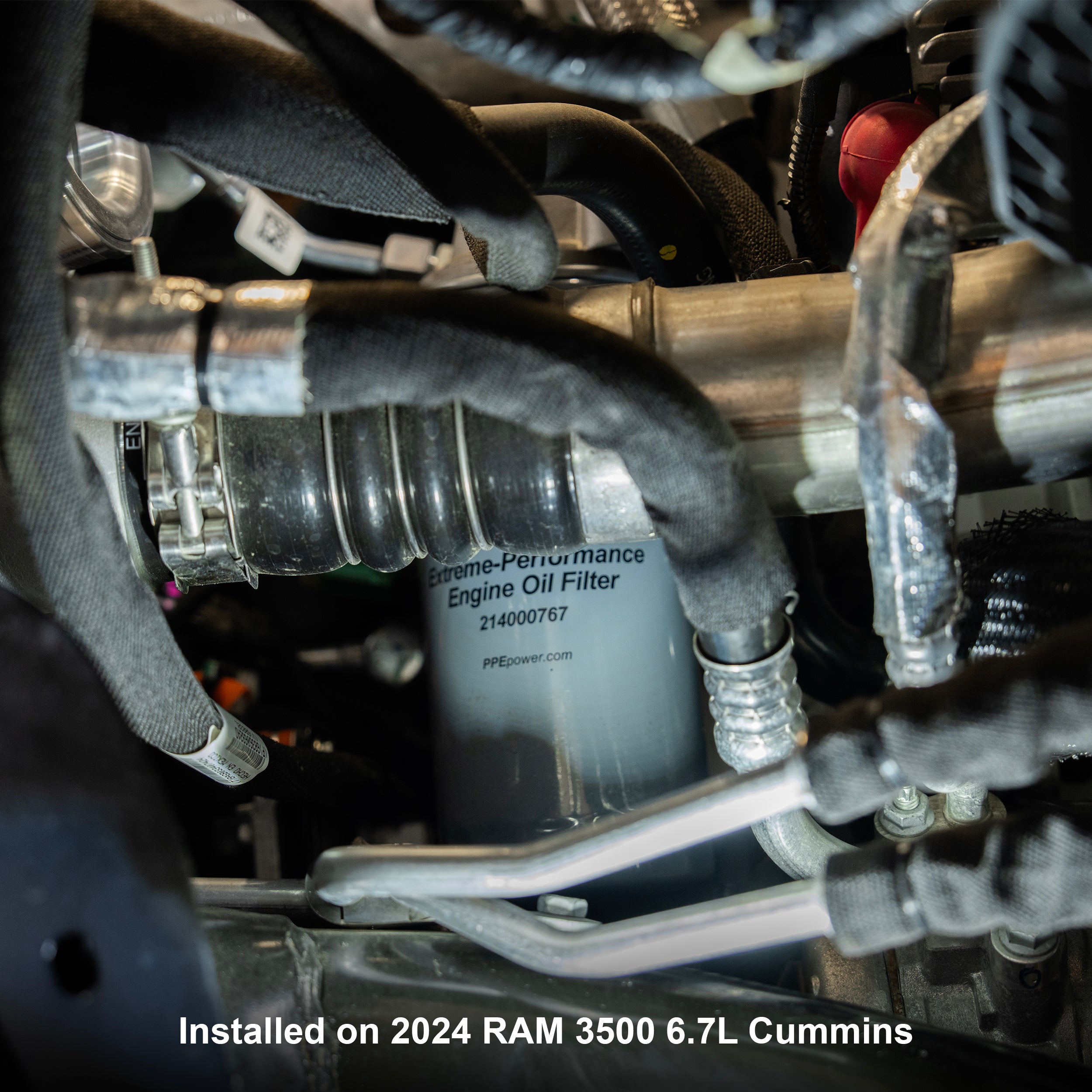

The PPE MicroPure XR Engine Oil Filter is a direct-fit replacement for Dodge Ram trucks equipped with Cummins engines from 1989 to 2025. Installation requires no modifications and follows standard oil filter replacement procedures. The filter’s robust construction and enhanced sealing features ensure a secure fit and leak-free operation, providing peace of mind during installation and use.

What's Included:

• One PPE MicroPure XR Engine Oil Filter (Part #214000767)

Ideal For:

This oil filter is ideal for Dodge Ram owners who operate their trucks in demanding environments, including towing, hauling, off-road, and commercial applications. It is also well-suited for enthusiasts and professionals seeking to maximize engine longevity and maintain optimal oil cleanliness beyond standard OEM capabilities.
