SPOD BantamX Switch Panel
2009–2018 Jeep Wrangler JK (All Models)
870065
Overview:
The SPOD BantamX Switch Panel is a compact, fully programmable 8-circuit control system designed specifically for Jeep Wrangler JK models from 2009 to 2018. Engineered to simplify the wiring and control of your vehicle’s 12/24VDC electrical accessories, the BantamX saves you hours of installation time by consolidating all wiring into a single Ethernet cable connection to the cab. This innovative switch panel offers a clean, safe, and highly customizable solution for managing aftermarket lighting, winches, air compressors, and other electrical devices without the need for cutting or tapping into your Jeep’s factory wiring.
Ideal for Jeep enthusiasts who demand reliability and flexibility, the BantamX delivers advanced digital control with robust protection features, making it the perfect upgrade for off-road adventurers and daily drivers alike.
Key Features:
The BantamX system combines cutting-edge technology with user-friendly design to provide unmatched control over your Jeep’s electrical accessories. Key features include:
- Eight fully programmable circuits rated at 30 amps each at 12.5 VDC, expandable for additional accessories
- Digital microprocessor-controlled MOSFETs eliminate the need for traditional fuses and relays
- Integrated low voltage cutoff (LVCO) battery protection with optional override to safeguard your battery
- Failsafe self-healing fault protection system for currents ranging from 1.5 to 30 amps
- Two RJ45 controller ports supporting Ethernet cables for easy daisy chaining of up to four BantamX units
- Built-in Bluetooth capabilities for remote control and on-demand wireless software updates via the free sPOD Mobile App
- Ignition control and safety lock-out options for enhanced operational safety
- Switch panel equipped with eight dual lit blue LED Carling Technologies Contura switches, rated IP66/68 for marine and harsh environments
- High-quality nylon braided battery cables with silicone jackets for durability and heat resistance
- Programmable switch functions including dimming, strobe, flash, momentary, and linking modes
Construction & Design:
The BantamX switch panel is built to withstand the rigors of off-road use and harsh environments. It features a powder-coated steel base with integrated mounting hardware for secure installation. The aluminum lid is precision-formed, welded, and powder coated to resist corrosion and wear. A silicone gasket ensures weatherproofing, protecting the internal electronics from moisture and dust. The switch panel’s compact footprint allows for flexible mounting options without the need for cutting or modifying your Jeep’s interior.
Installation & Fitment:
Installation is straightforward and designed to minimize vehicle modification. The BantamX system requires only a single CAT-6 Ethernet cable (included, 10 feet standard, extendable up to 25 feet) to connect the switch panel to the main controller, eliminating complex wiring harnesses. No cutting, splicing, or tapping into the Jeep’s factory electrical system is necessary. The system fits all 2009–2018 Jeep Wrangler JK models, including Rubicon, Sahara, Sport, Unlimited, and special editions such as the 70th and 75th Anniversary models.

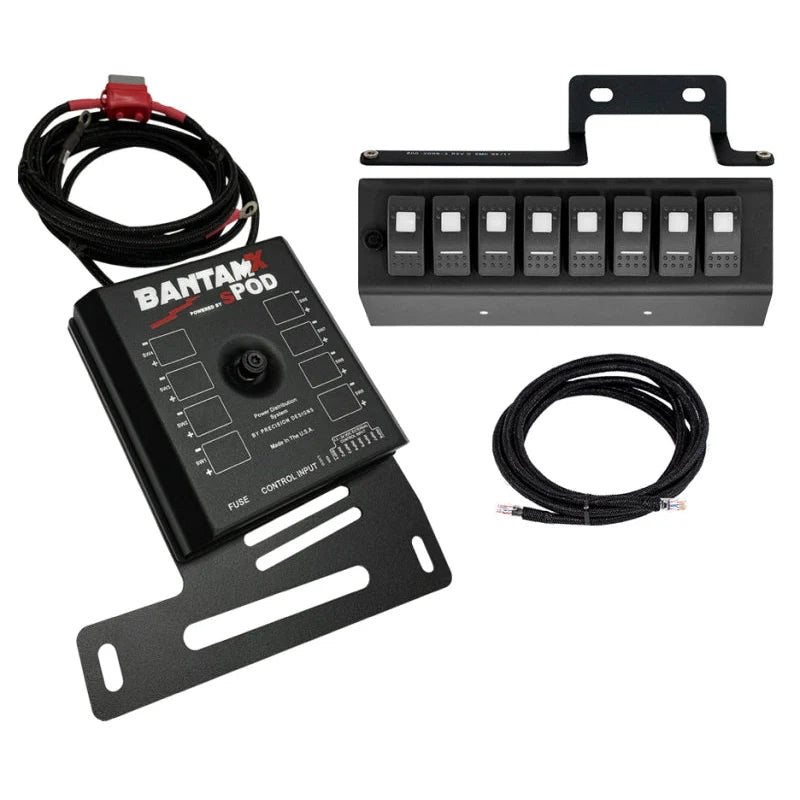

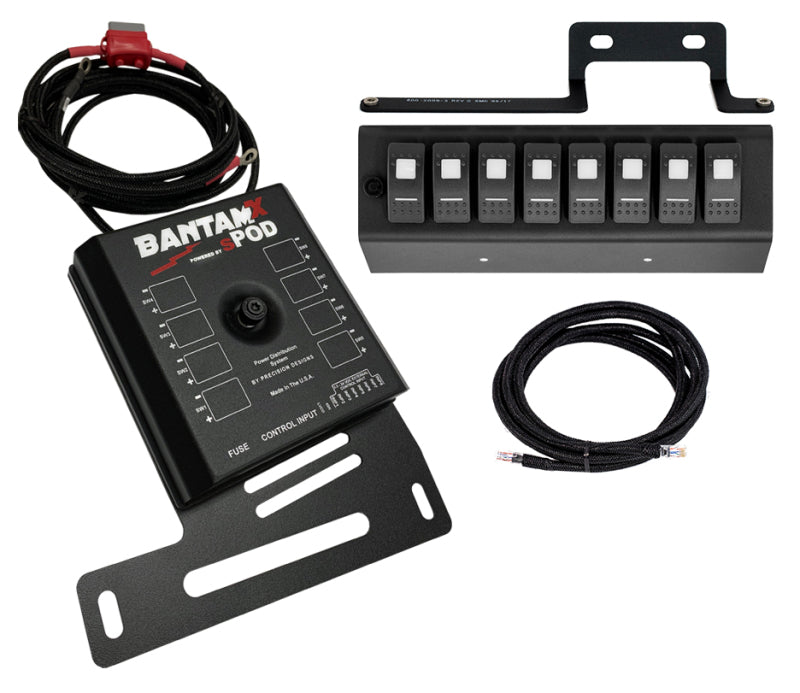

What's Included:
- SPOD BantamX 8-circuit switch panel with eight pre-wired dual lit blue LED switches
- 10-foot CAT-6 Ethernet cable (extendable up to 25 feet)
- Powder-coated steel mounting base with hardware
- Aluminum weatherproof lid with silicone gasket
- High-temp abrasion resistant nylon braided wiring sleeves
Ideal For:
The SPOD BantamX Switch Panel is ideal for Jeep Wrangler JK owners who want a reliable, easy-to-install solution for managing multiple aftermarket electrical accessories. Whether you’re outfitting your Jeep for off-road lighting, winching, air compressors, or other 12V/24V devices, this system offers professional-grade control and protection. It’s perfect for enthusiasts who value clean wiring, advanced programmability, and the ability to expand their electrical setup without hassle.
