Wilwood Narrow Superlite 6-Piston Front Big Brake Kit

2007–2018 Jeep Wrangler JK

Part #: 140-13880-DR

Overview

The Wilwood Narrow Superlite 6-Piston Front Big Brake Kit is a high-performance braking solution designed specifically for the 2007 to 2018 Jeep Wrangler JK. This kit combines advanced engineering with robust construction to deliver superior stopping power and enhanced pedal feel. Ideal for Jeep enthusiasts who have upgraded their wheels, tires, or suspension, this big brake kit ensures reliable and consistent braking performance under demanding conditions.

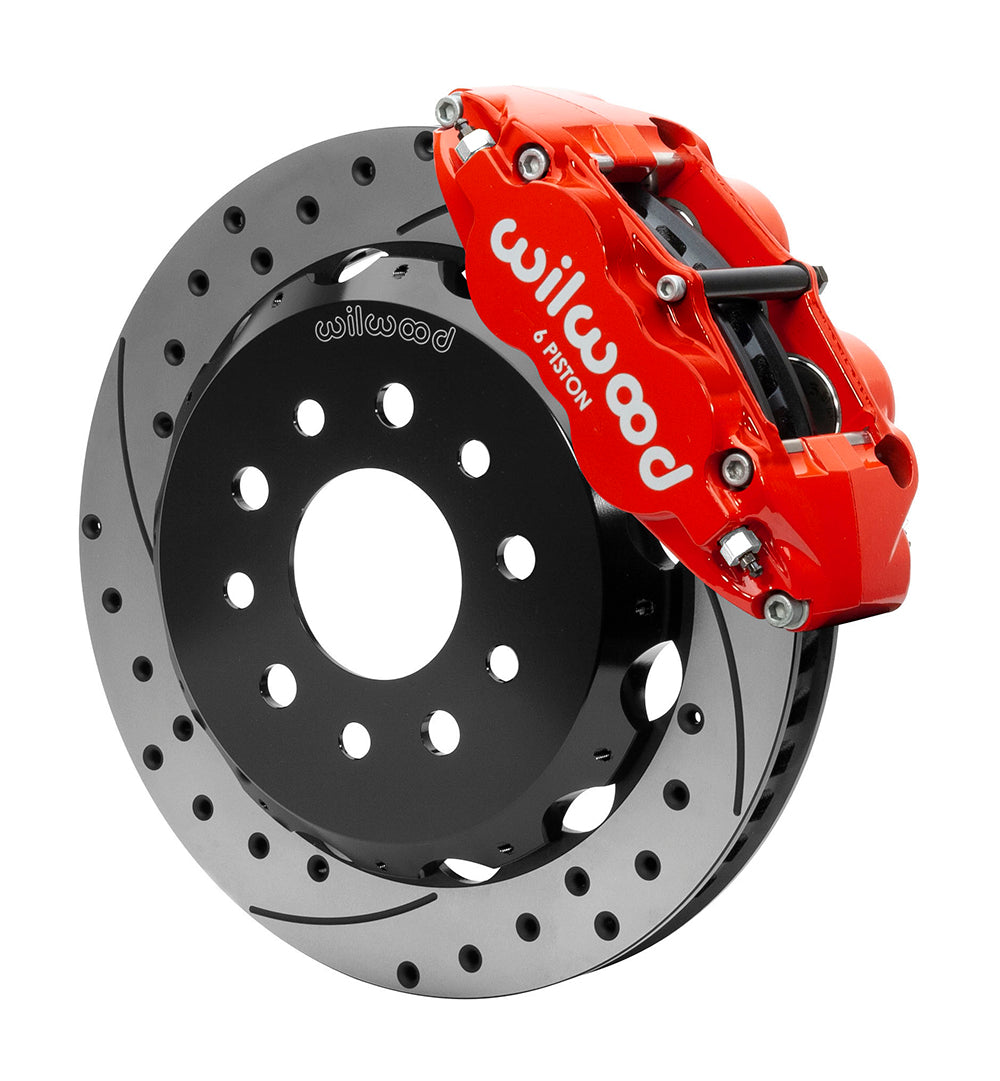

Featuring red powder-coated six-piston calipers and drilled 12.88-inch rotors, this kit not only improves braking efficiency but also adds a striking visual upgrade to your Jeep’s front end. Engineered for direct fitment, it maintains compatibility with the original equipment master cylinder and ABS systems, ensuring seamless integration without the need for extensive modifications.

Key Features

Wilwood’s Narrow Superlite 6R calipers and large diameter rotors provide a significant upgrade over stock braking components. Key features include:

• Forged Narrow Superlite 6R six-piston calipers for increased clamping force and even pad wear
• 12.88-inch drilled rotors designed for improved heat dissipation and reduced brake fade
• Red powder-coated calipers for corrosion resistance and enhanced aesthetics
• Application-specific engineering for direct bolt-on installation on 2007–2018 Jeep Wrangler JK models
• Maintains full compatibility with factory master cylinder output and ABS functionality
• Designed for use with factory disc spindles and radial mount caliper configuration

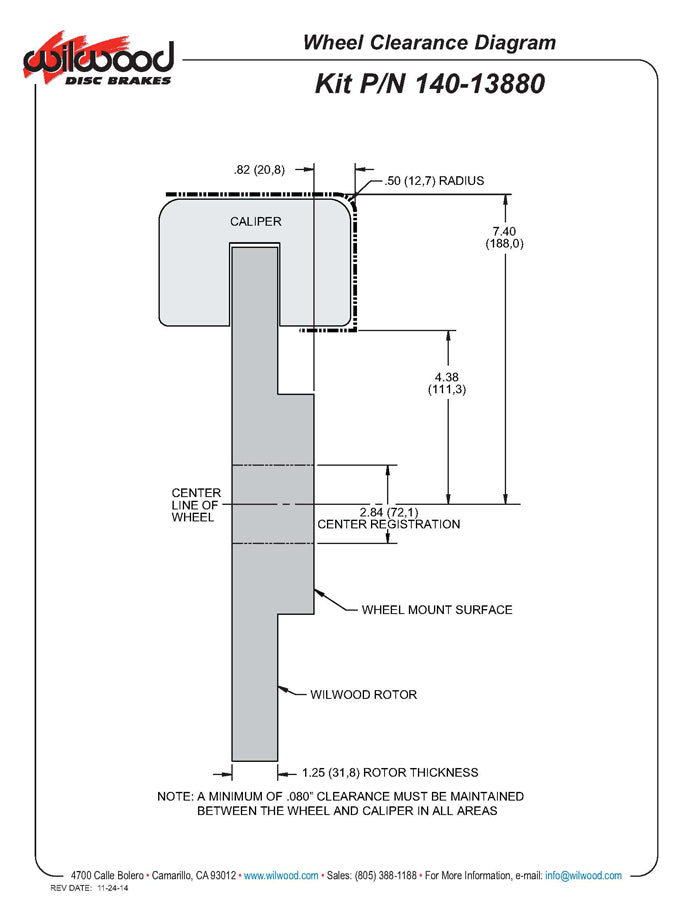

• Minimum wheel diameter requirement of 17 inches to ensure proper clearance
• Optional caliper finishes and rotor designs available for customization

Construction & Design

The calipers are forged from high-strength aluminum alloy, providing an optimal balance of rigidity and weight savings. This construction enhances braking responsiveness while reducing unsprung mass for improved suspension performance. The drilled rotors are crafted from premium-grade iron to withstand high thermal loads and resist warping during aggressive driving or off-road use.

The radial mount design of the calipers increases stiffness and improves pedal feel, while the narrow profile allows for better clearance with aftermarket wheels and suspension components. The red powder coat finish not only protects against corrosion but also complements the rugged styling of the Jeep Wrangler JK.

Installation & Fitment

This big brake kit is engineered for straightforward installation on 2007–2018 Jeep Wrangler JK models using factory disc spindles. The kit is designed to work seamlessly with the original master cylinder and ABS system, eliminating the need for additional modifications or upgrades. Installation requires a minimum 17-inch wheel diameter to accommodate the larger rotors and calipers.

All mounting hardware and detailed instructions are included to facilitate a smooth upgrade process, making it suitable for experienced DIY enthusiasts and professional installers alike.

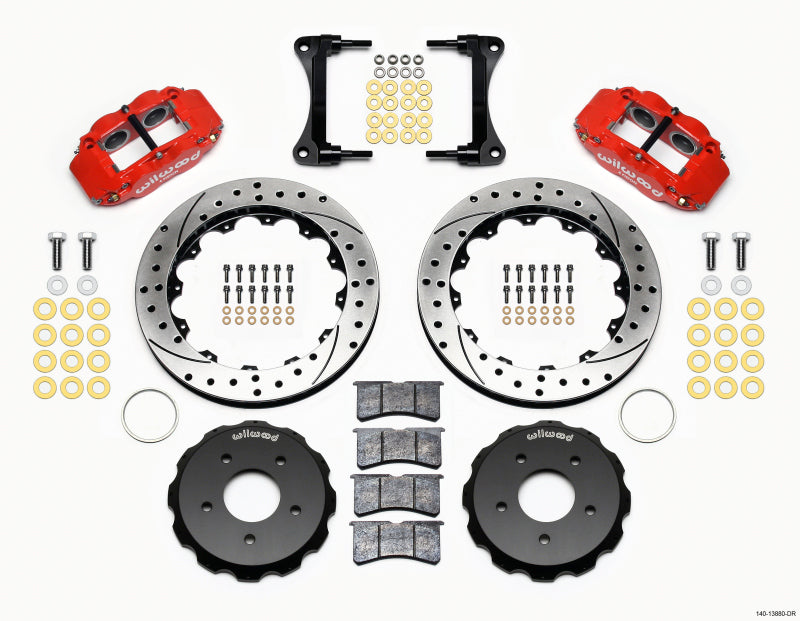

What's Included

• Forged Narrow Superlite 6R six-piston red powder-coated calipers (pair)
• Drilled 12.88-inch diameter rotors (pair)
• Caliper mounting brackets and hardware
• Brake pads pre-installed in calipers
• Installation instructions

Ideal For

This Wilwood big brake kit is ideal for Jeep Wrangler JK owners seeking enhanced braking performance to match upgraded wheels, tires, and suspension systems. It is well-suited for off-road enthusiasts, daily drivers, and those who demand improved safety and control during spirited driving or towing. The kit’s combination of performance, durability, and style makes it a popular choice for Jeep customization and performance enhancement.

Wilwood Engineering is a major manufacturer of high-performance disc brake solutions spanning racing, street performance, and specialty OE applications. From big brake kits and calipers to rotors and hydraulic components, Wilwood upgrades are built for stronger stopping power, better heat management, and consistent pedal feel when stock brakes aren’t enough.
